Dormakaba Narrow Round End Plate with Lever
6505/30G

Door Lever can be found on all types of doors including exterior doors of  internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

Features:

• A stylish alternative to the Narrow Round end plate displaying clean modern lines with bevelled edges Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through fixing for use with Australian narrow stile mortice locks and latches
• Non handed plate with oscillating lever action for quick reversal of handing
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon shim preventing metal to metal wear and providing a smoother friction free movement

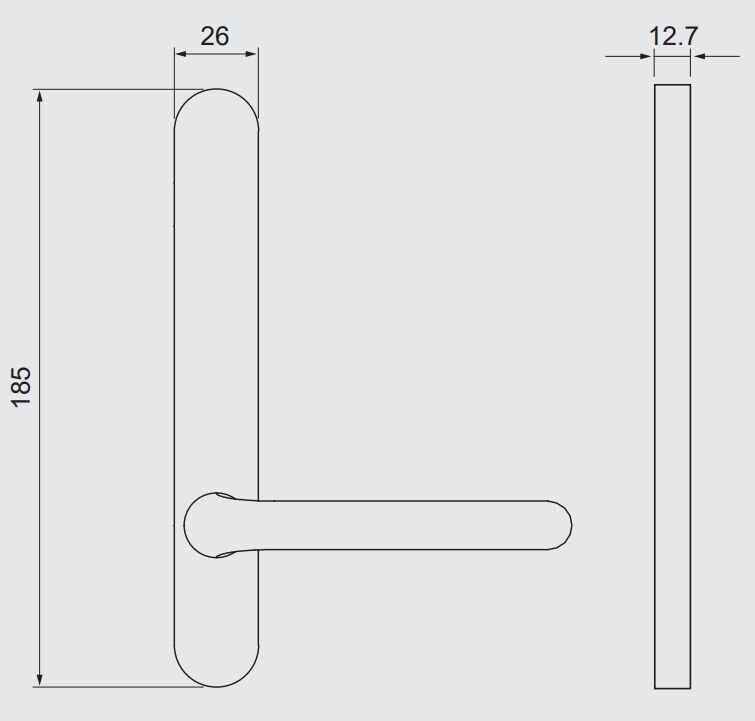

Specifications:

• Plate Height: 185mm
• Plate Width: 26mm
• Plate Thickness: 12.7mm
• Door thickness: 32 to 50 mm
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: No
• Finish: Satin Stainless steel

Compliant:

• The 6500 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
