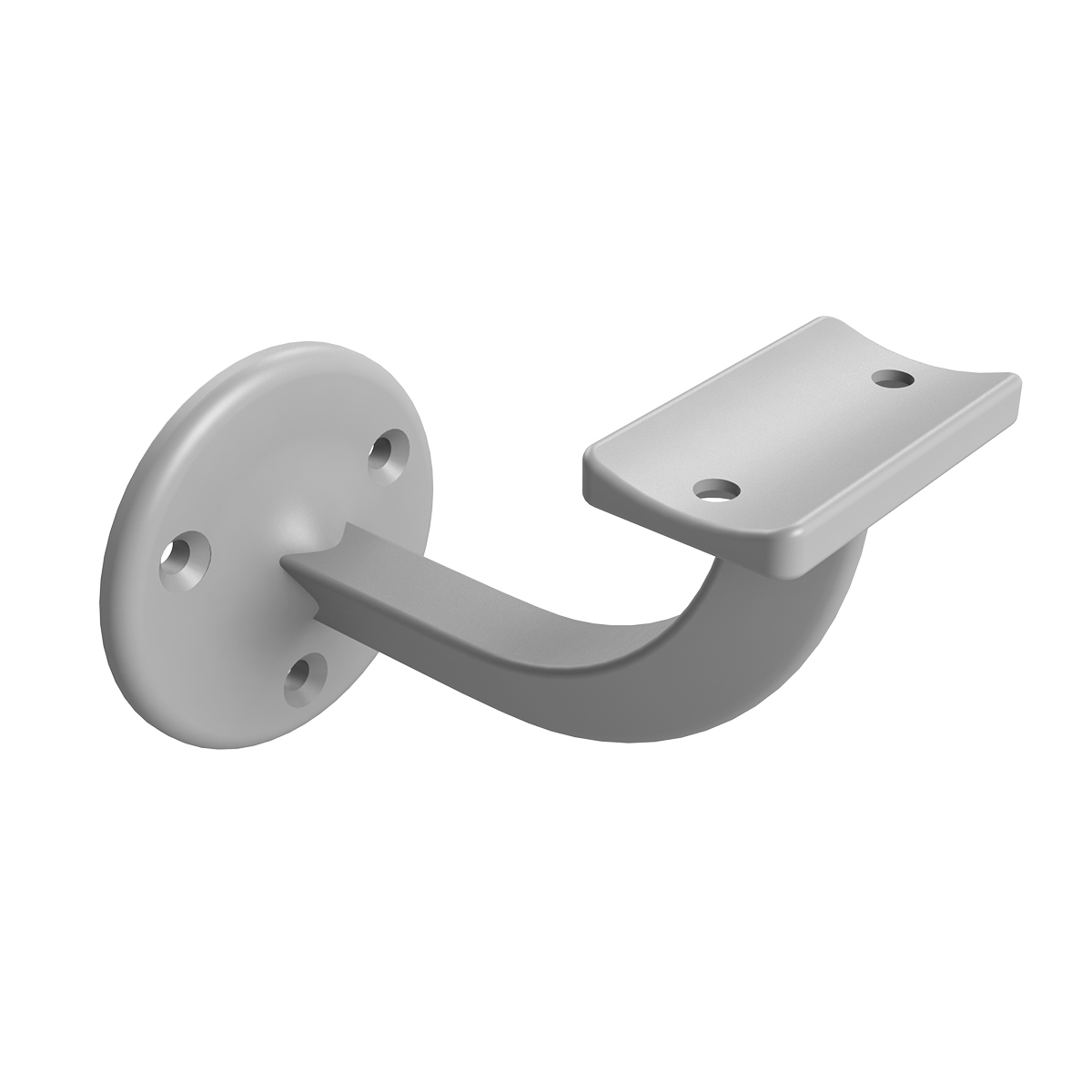

Emro Stair Hand Rail Bracket
444SPP

Hand Rail Bracket - is installed directly on a wall. Typically used for Commercial & Domestic projects

Hand Rail Bracket Function - are used to attach stairway railings to the wall of a stairway for safety and utility

Features:

• Conventional Visible Fix
• To Suit 50mm Diameter Railings
• Neutral salt spray test (NSS) for 100 hours to ensure resistance to corrosive attack on the bracket surface
• Fixing screws supplied
• Load tested to comply with Part of Australian Standard AS1428.1-2009 Made in Australia

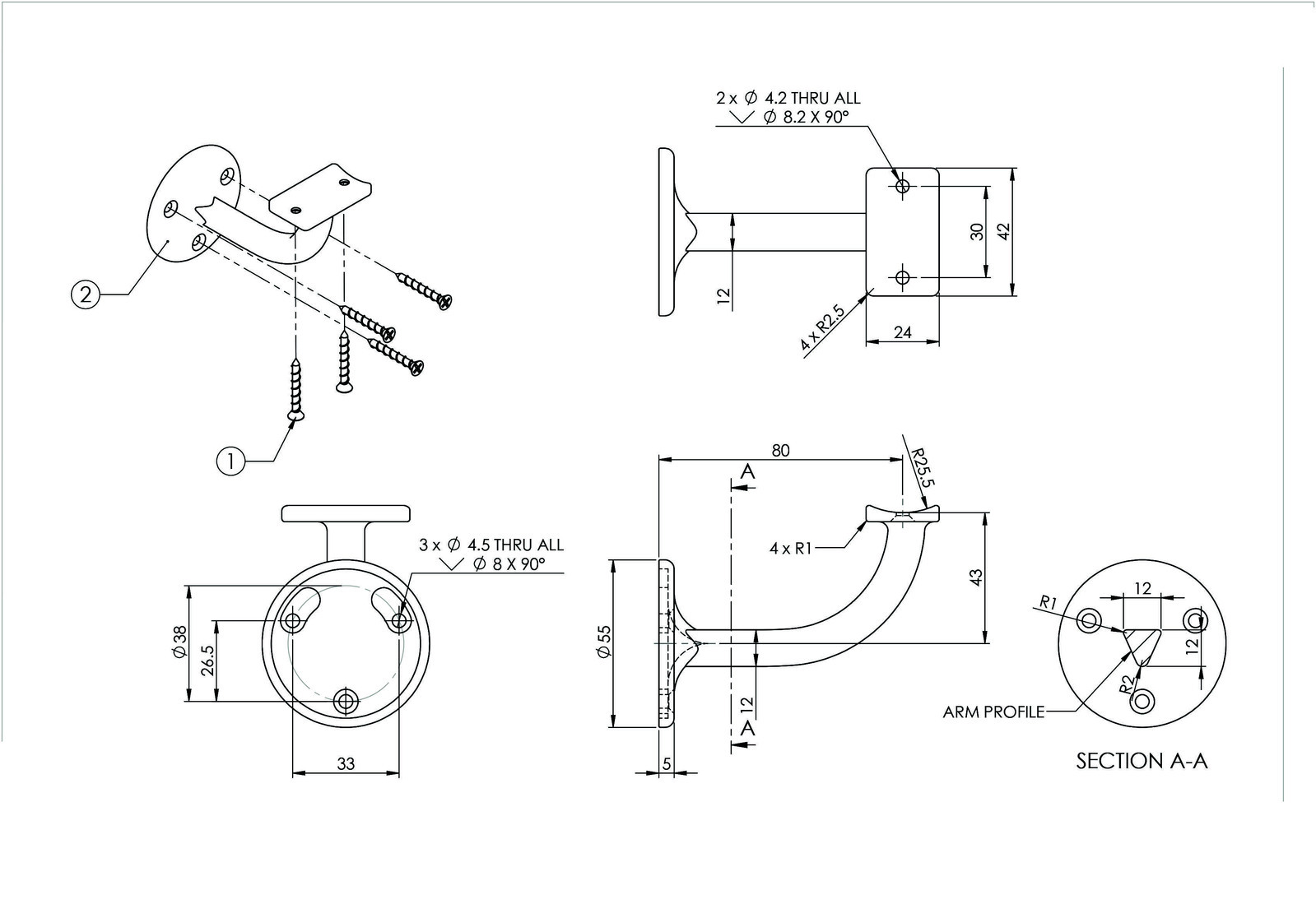

Specifications:

• Diameter Rose: 55m
• Projection from wall to Screw Hole: 80mm
• Overall Projection: 70mm
• Extension: 80mm
• Material: Zinc Alloy
• Finish: Satin Powder Coated
