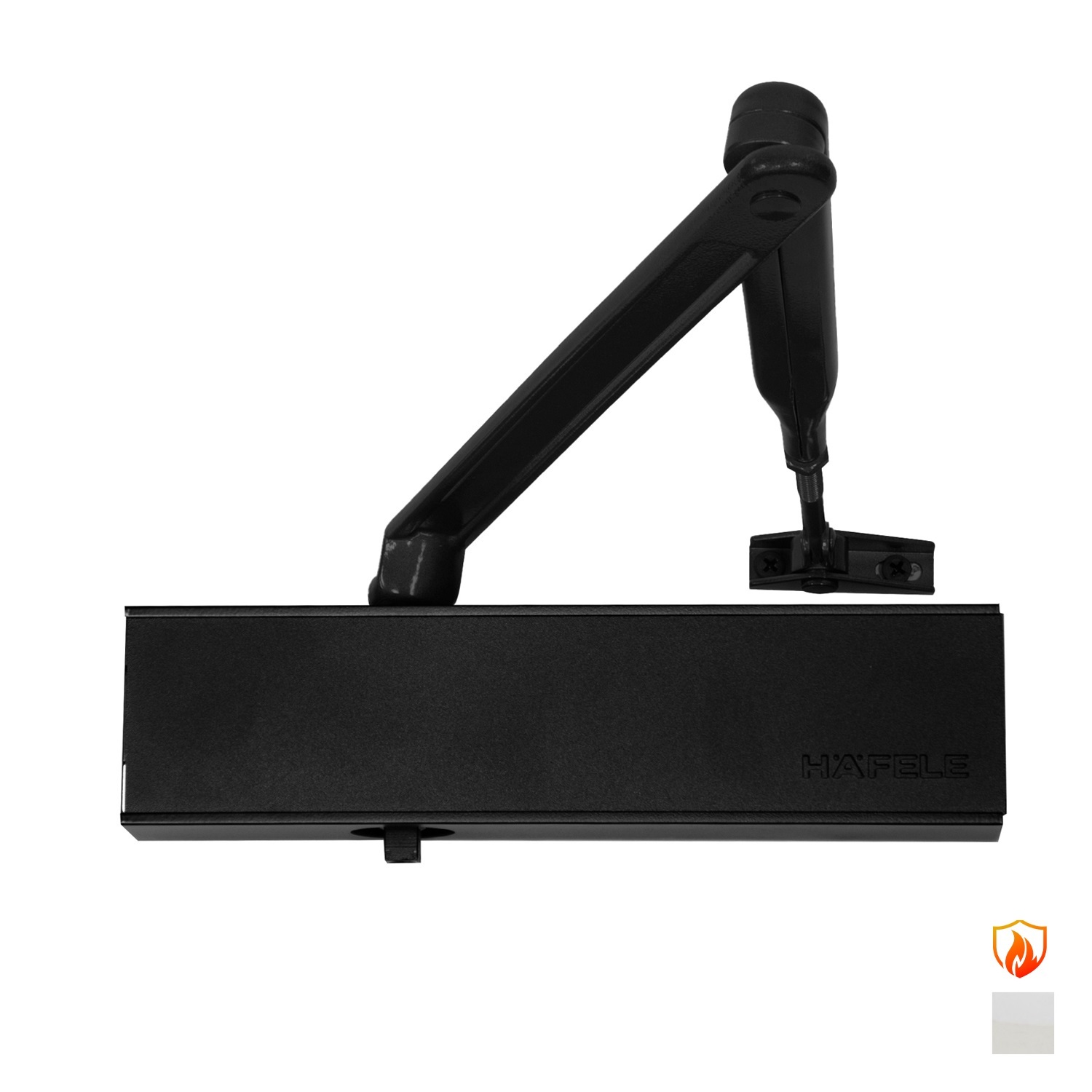

Hafele DCL51 EN2-5 Door Closer with Standard Arm

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Optical indication of closing force
  • All functions can be adjusted from the front
  • With standard arm

Specifications:

  • Mounting Method: Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on pull side
  • For Door Width: up to 1250mm
  • Mounting: For DIN left and DIN right hand use
  • Material: Steel
  • For Door Weight: up to 100kg
  • For Number of Doors: 1-leaf doors
  • Adjustment Facility: Adjustable closing speed, soft opening mechanism and latching action
  • Closing Force: 2 to 5 in accordance with EN 1154
  • Opening Angle: up to 180 degrees
  • Fire Rated: Yes
  • Available Finish:
    • Matt Black
    • Silver

Compliant:

  • Certified in compliance with EN 1154:1996/A1:2002
SKU HAF93184829_
Brand Hafele
