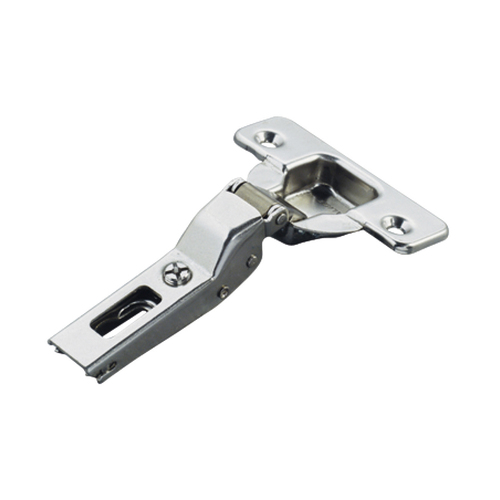

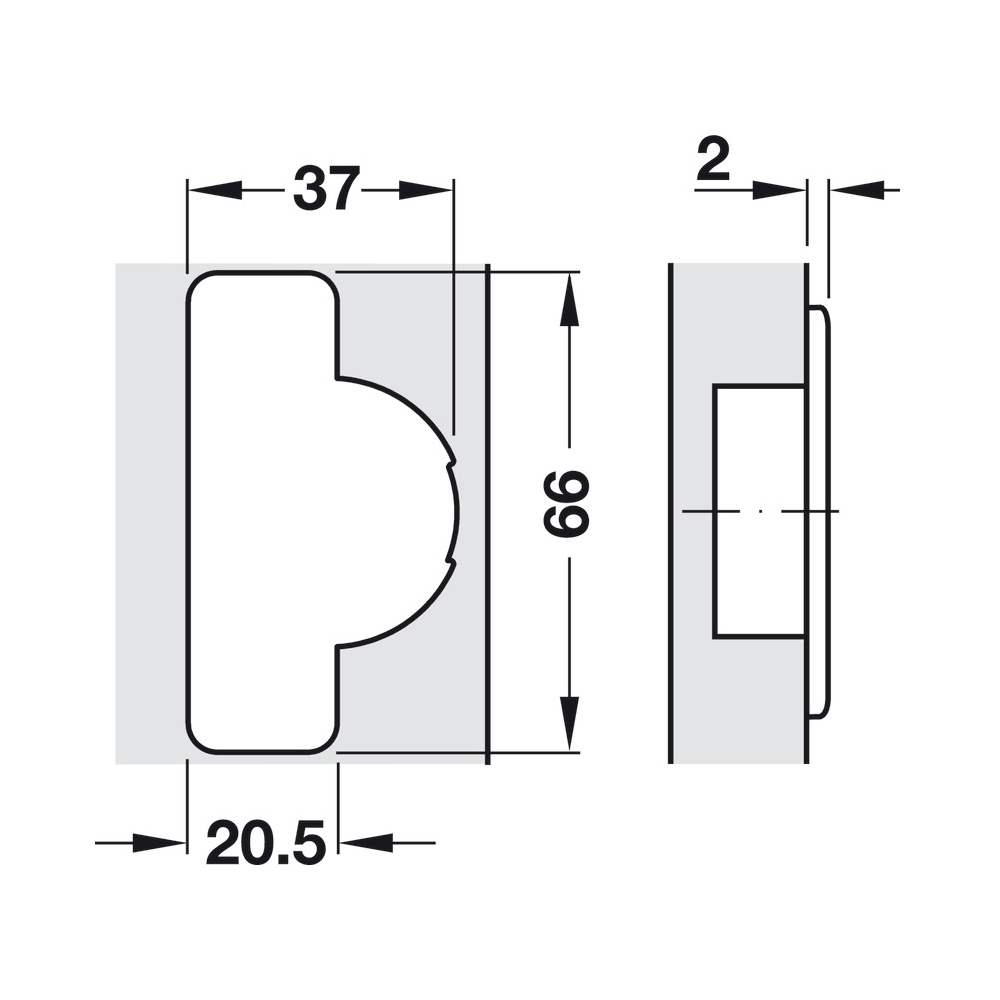

Hafele Duomatic Concealed Hinge
329.28.602

Duomatic Concealed Hinge is commonly used in cabinetry, furniture, and interior doors for aesthetic and space-saving benefits.

Duomatic Concealed Hinge Function - allowing a door to swing open and closed while being concealed within the door and frame, providing a clean and streamlined appearance. These hinges are adjustable to accommodate different door weights and sizes and typically offer features like soft-close mechanisms for smooth and quiet operation.

Specifications:

• Area of Application: For thin doors from 10 mm
• Concealed Hinge Version: Half overlay mounting/twin mounting
• Version: With automatic closing spring
• Crank Type: Cranked
• For Door Material: Wood
• Door Processing for Assembly: with cup drilling
• Material:
  • Cup: Zinc alloy
  • Hinge arm: Steel
• Opening Angle: 105 Degrees
• Cup Drilling Depth: 8mm
• Cup drilling Diameter: 35mm
• Cup Fixing: for screw fixing
• Drilling Pattern: 48/6
• Adjustment Facility:
  • Side adjustment -1.5mm to 4.5mm
  • Height adjustment -+2 mm
  • Depth adjustment with Duomatic A mounting plates +2.8 mm
  • Duomatic SM mounting plates from -0.5 to +2.8 mm
• Installation: Door on cabinet with slide-on system A or quick fixing system SM
• Finish: Nickel Plated
