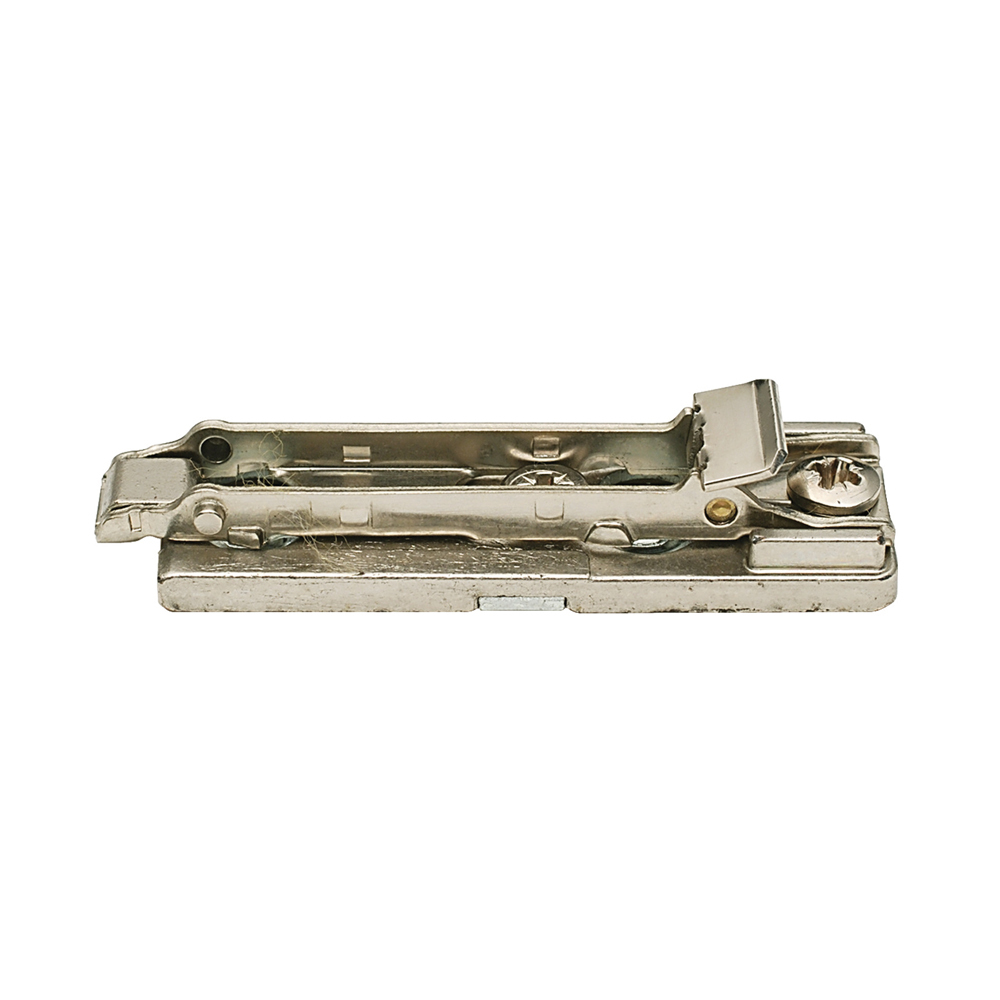

Hafele Duomatic SM Mounting Plate

Duomatic Mounting Plate is commonly used in cabinet and furniture construction, particularly in kitchen and bathroom installations, where concealed hinges are preferred for a sleek and modern appearance.

Duomatic Mounting Plate Function - serves as a secure and stable base for attaching Doumatic SM hinges to the cabinet or furniture door. It ensures proper alignment and support for the hinge mechanism, allowing for smooth operation and durability..

Specifications:

• Area of application: For Hafele Duomatic concealed hinges
• Available Distance:
  • 4mm
  • 6mm
• Material: Zinc alloy

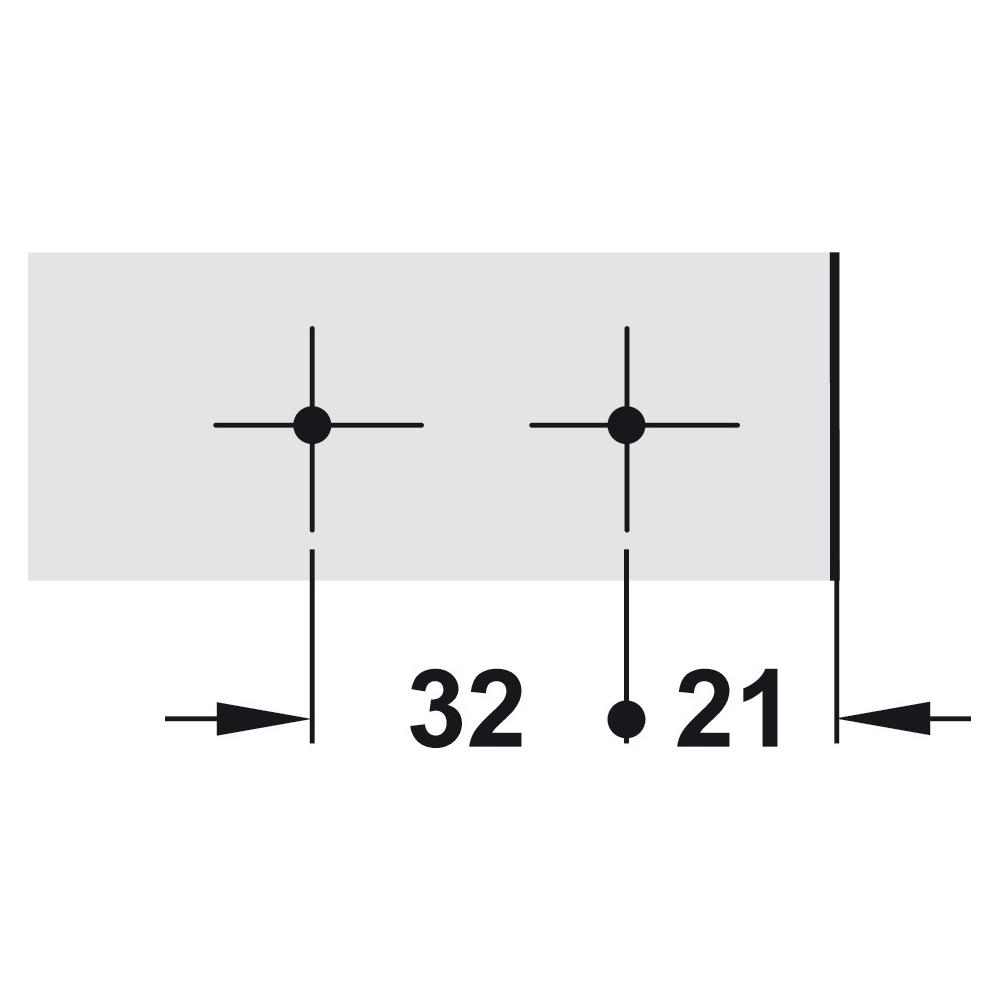

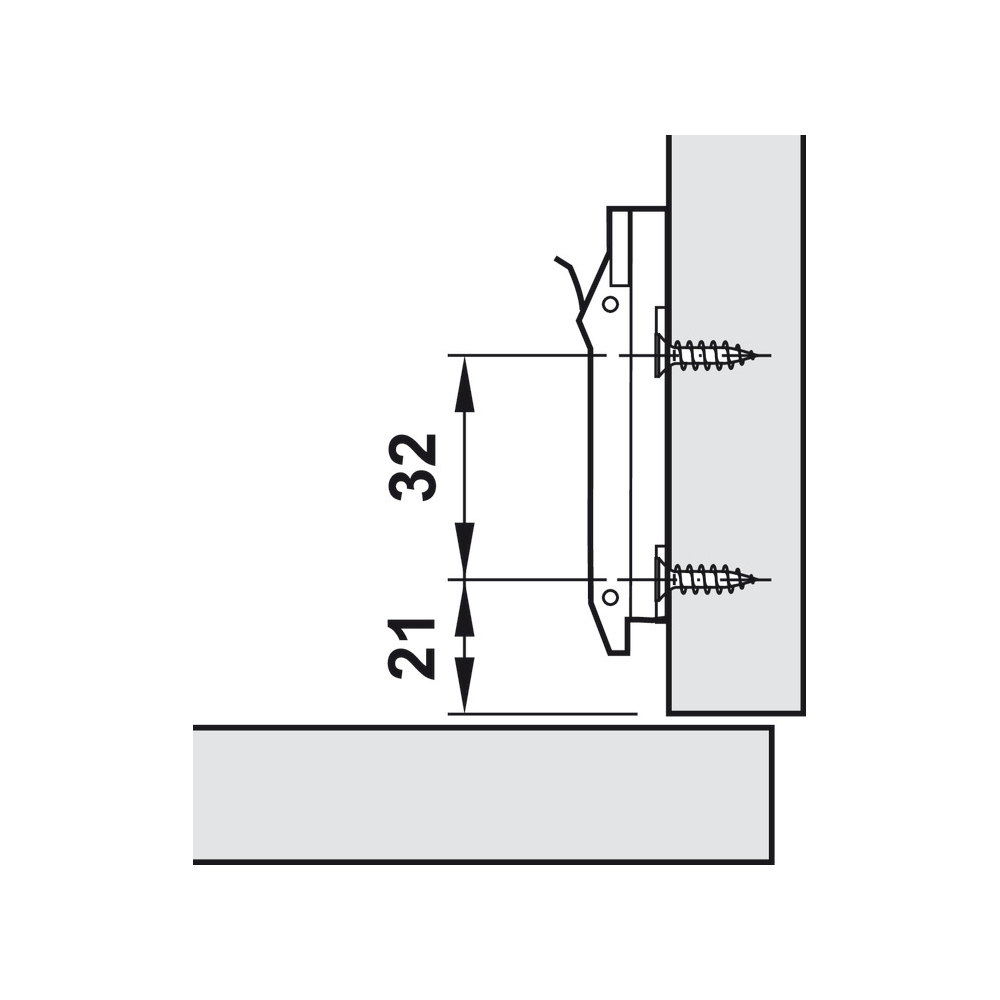

• Screw Distance: 32mm
• Edge Distance: 21mm
• Adjustment Facility: Height adjustment Via eccentric, Depth adjustment Via eccentric
• Fixing Method: Quick fixing system SM
• Mounting Plate Version: for screw fixing with chipboard screws
• Model: Duomatic
• Model Series: Duomatic SM
• Material: Zinc alloy
• Finish: Nickel Plated
