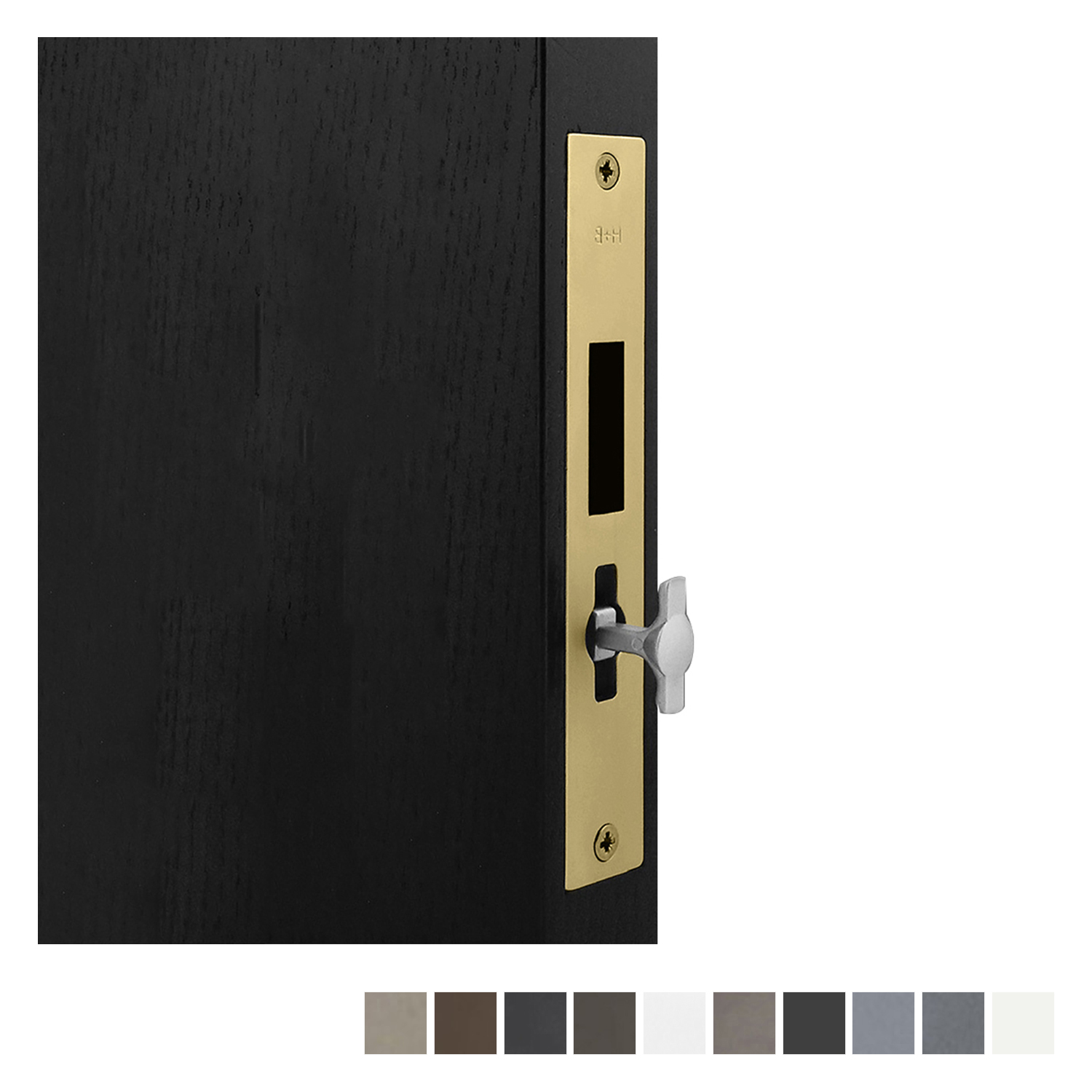

Halliday & Baillie 697 Sliding Door Pull Body and End Pull Only

Sliding Door Locks are essential for maintaining security and privacy in various settings, such as homes, offices, and commercial spaces. The specific use of a sliding door lock can depend on the type of lock and the intended purpose.

Sliding Door Locks are primarily designed to prevent unauthorized entry into a space. They secure sliding doors, making it more difficult for burglars or intruders to gain access.

Inlcudes:

• Keeper Body with End pull

Features:

• The HB 697 sliding door full body keeper with integrated end pull for bi-parting sliding doors matches the dimensions of the HB690 privacy lock body
• The keeper body is used in place of the standard strike and dust box for pocketed bi-parting doors where an HB 690 lock set is used to hold the two doors together
• The advantage of the HB 697 over a standard strike plate is to allow for a matching push button pop out with the same face dimensions as the opposing lock set

Specifications:

• Flush Pull Material : Diecast Zinc and Brass

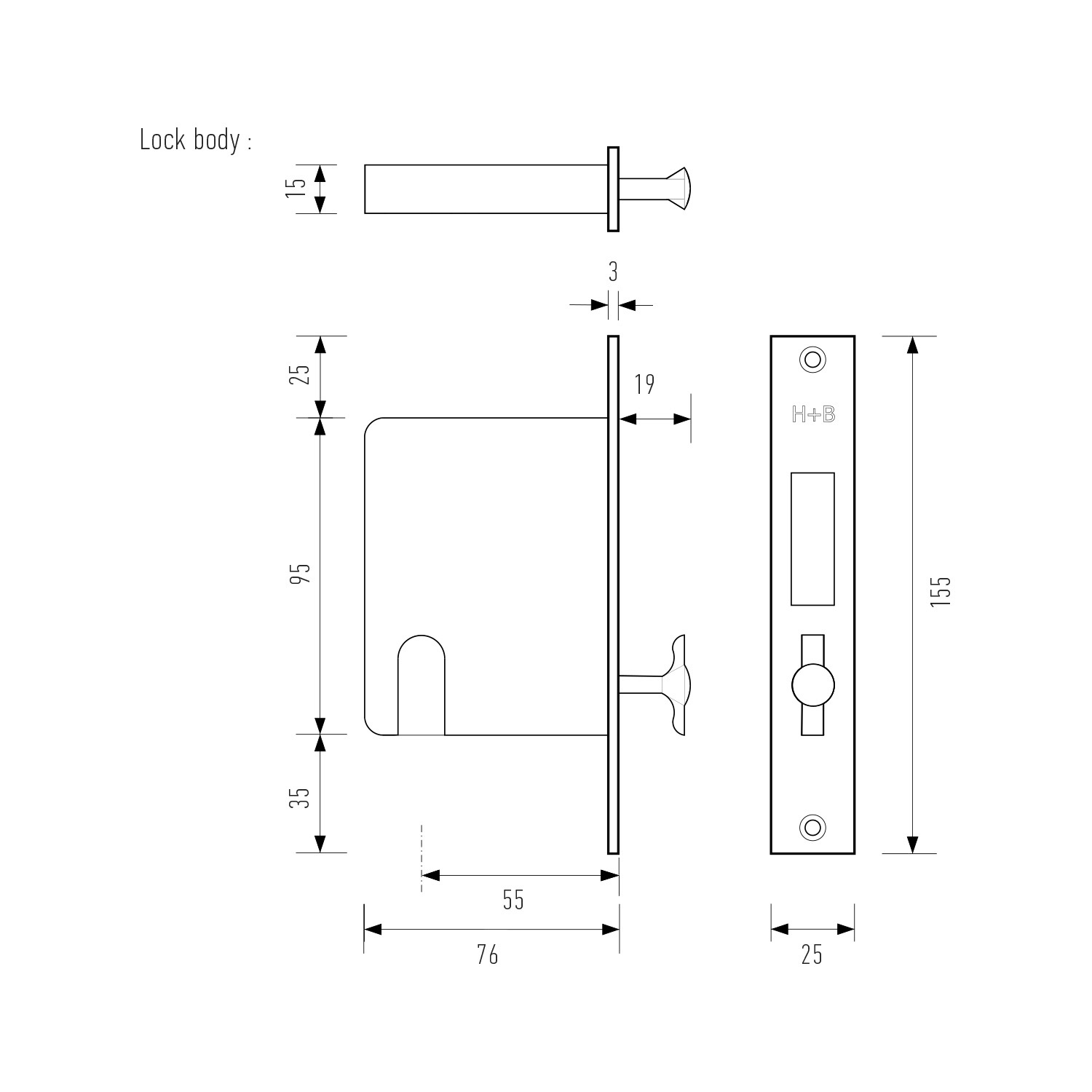

• Case Dimensions:
  • Height: 155mm
  • Width: 76mm
  • Depth: 25mm
• Minimum Door Thickness : To match active leaf set
• Internal grip depth : To match active leaf set
• Suitable: for timber or wide profile aluminium doors
• Minimum Door Thickness: 38mm (if used with matching flush pulls)
• Flush pulls: No Pulls Included
• Available Finish:
• Case Dimensions:
  • Height: 155mm
  • Width: 76mm
  • Depth: 25mm

Note:

• The HB 697 will match the lock body for the following sets only:
  • HB 690 Series
  • HB 695 Series
  • HB 1480 Series
  • HB 1490 Series
  • HB 1650 Series
