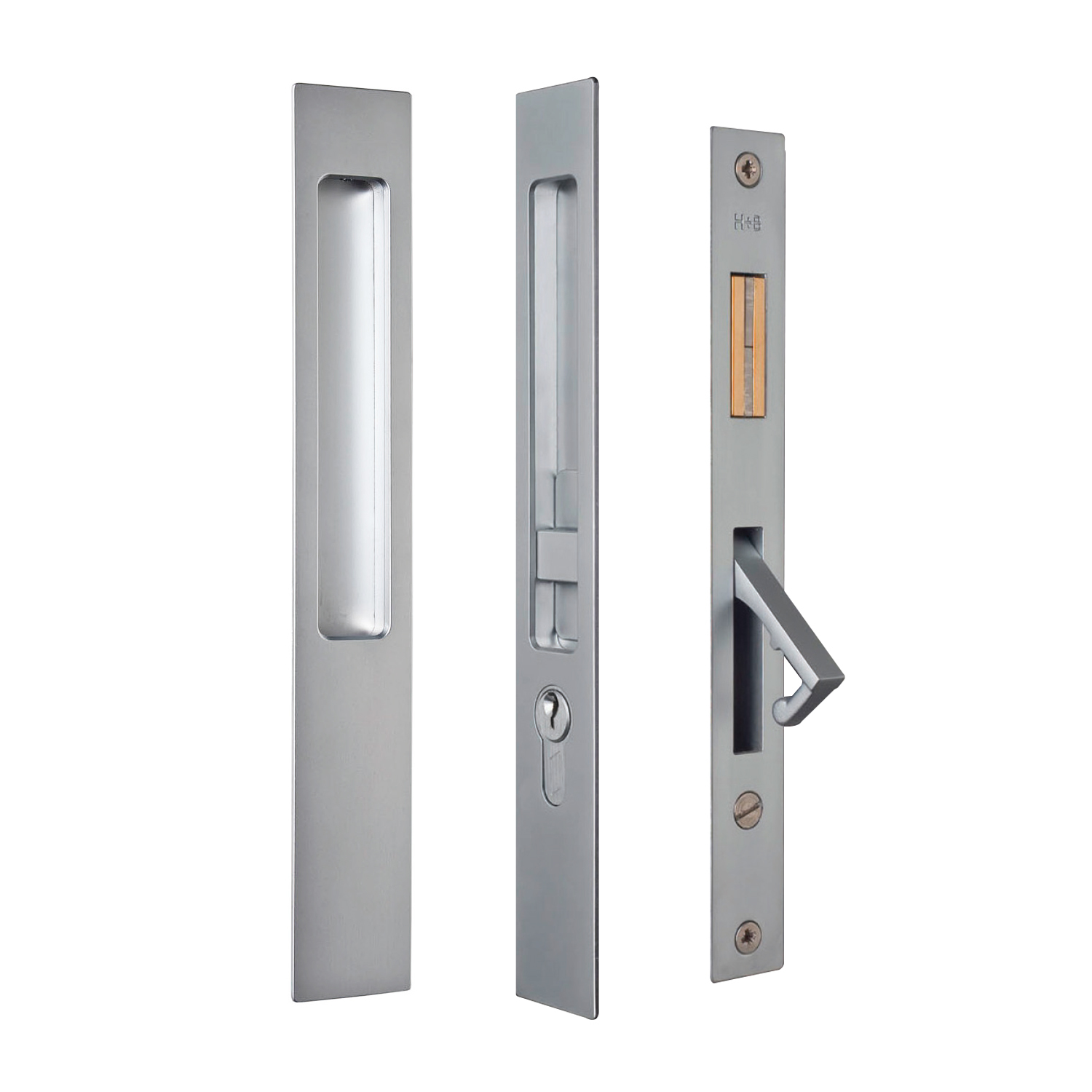

Halliday & Baillie Integrated End Pull Door Lock Set with Keyhole Snib/Plain
HB637-SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 6-8 business weeks after payment is made.

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 638 Series Lock Body
• 2 x HB 668 Flush Pulls
• 2 x HB 604 Fixing Kit
• 1 x Strike and Dust Box - Standard
• 2 x Spindle Lengths (please specify door thickness for doors over 50mm)
• Fasteners
• Cylinder ordered separately for slider thickness

Features:

• Ideal for external timber and aluminium sliding doors where locking is required

Specifications:

• Flush Pull Material: Diecast Zinc and Brass
• Lock Body Material: Diecast Zinc, Brass, 316 Stainless Steel

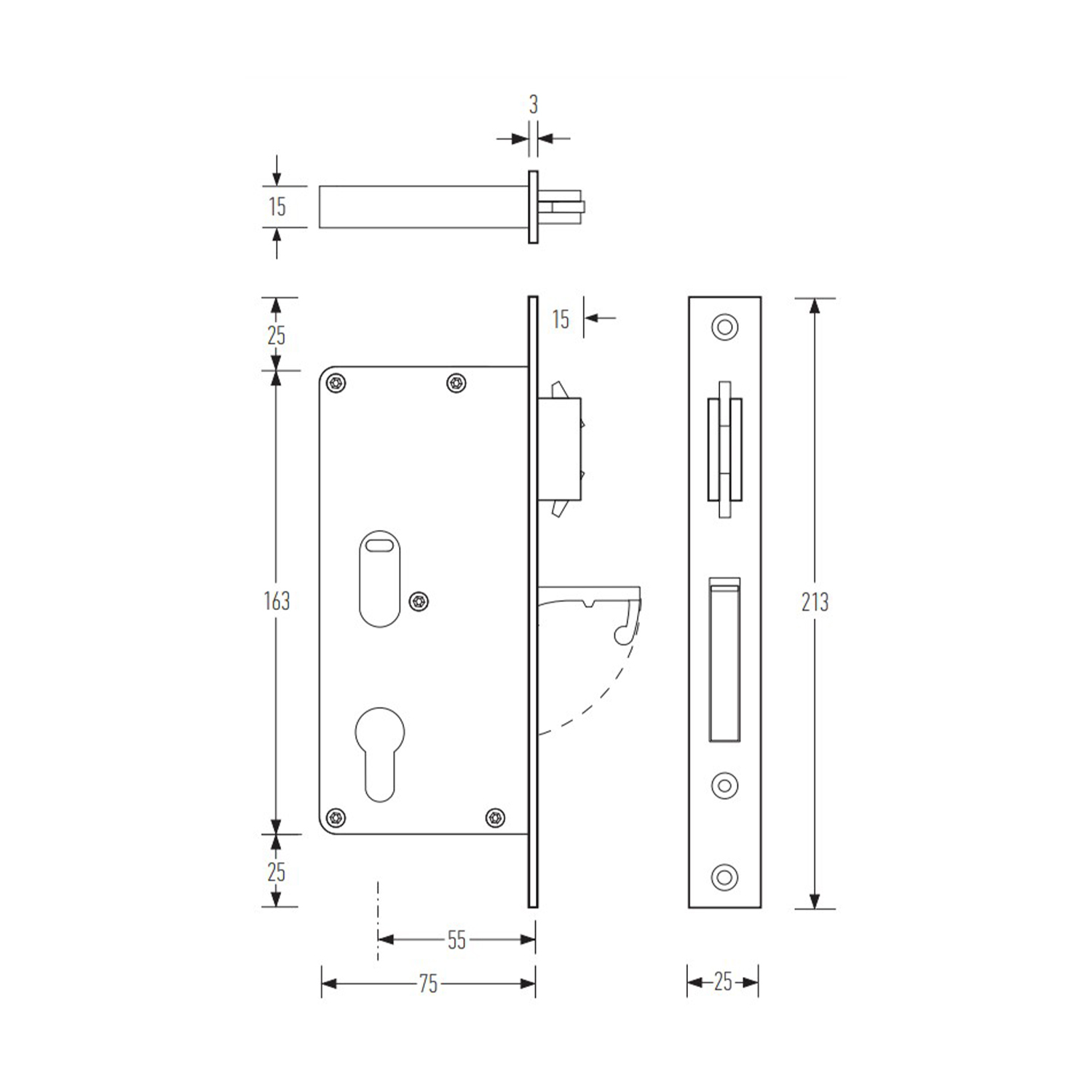

• Lock Body Length: 163mm
• Lock Body Width: 15mm
• Lock Body Depth: 75mm
• Backset: 55mm
• Lock Faceplate Length: 213mm
• Lock Faceplate Width: 25mm
• Minimum Door Thickness: 38mm

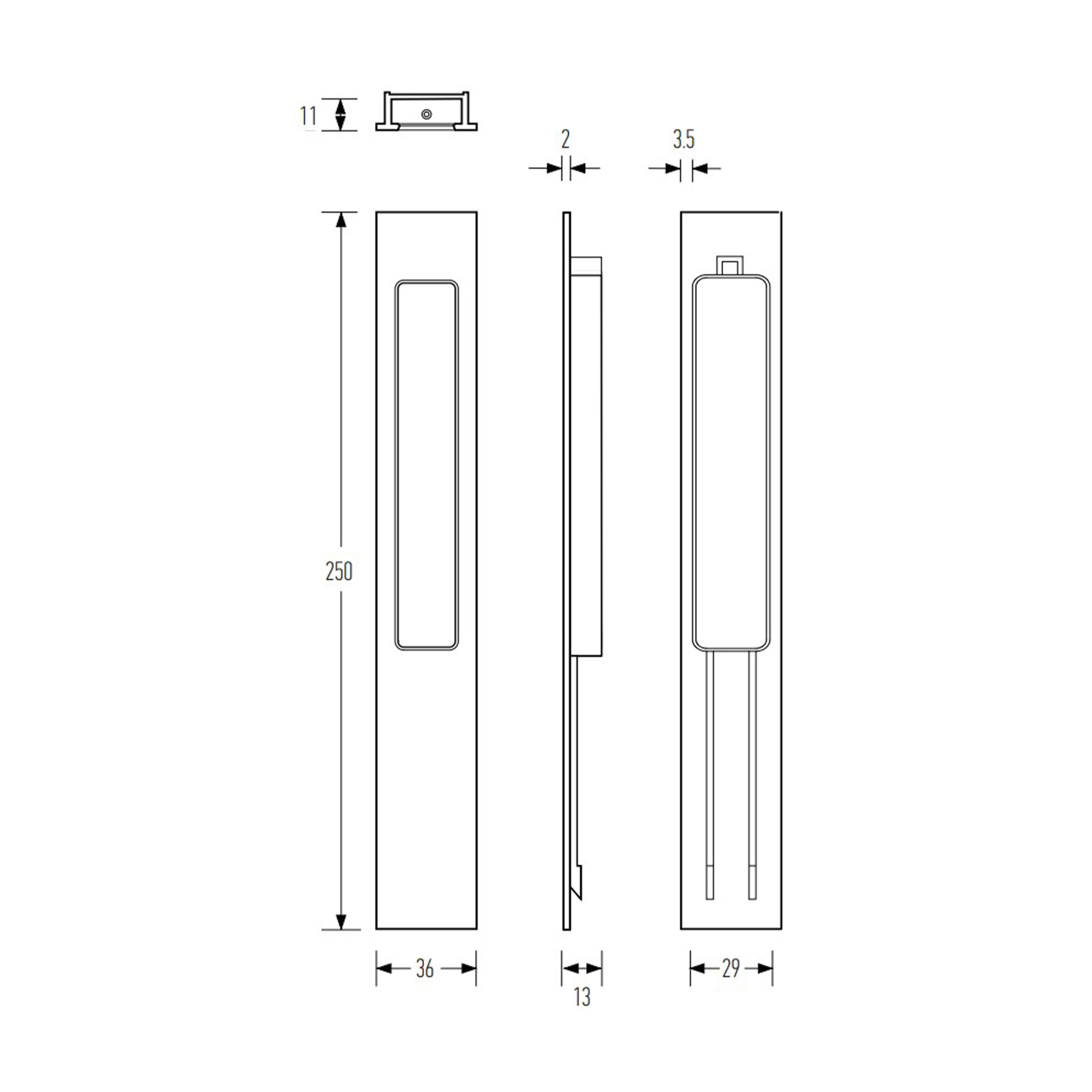

• Flush Pull Length: 250mm
• Flush Pull Inner Length: 133mm
• Flush Pull Width: 36mm
• Flush Pull Inner Width: 29mm
• Flush Pull Depth: 13mm
• Internal Depth: 11mm
• Finish: Satin Chrome
