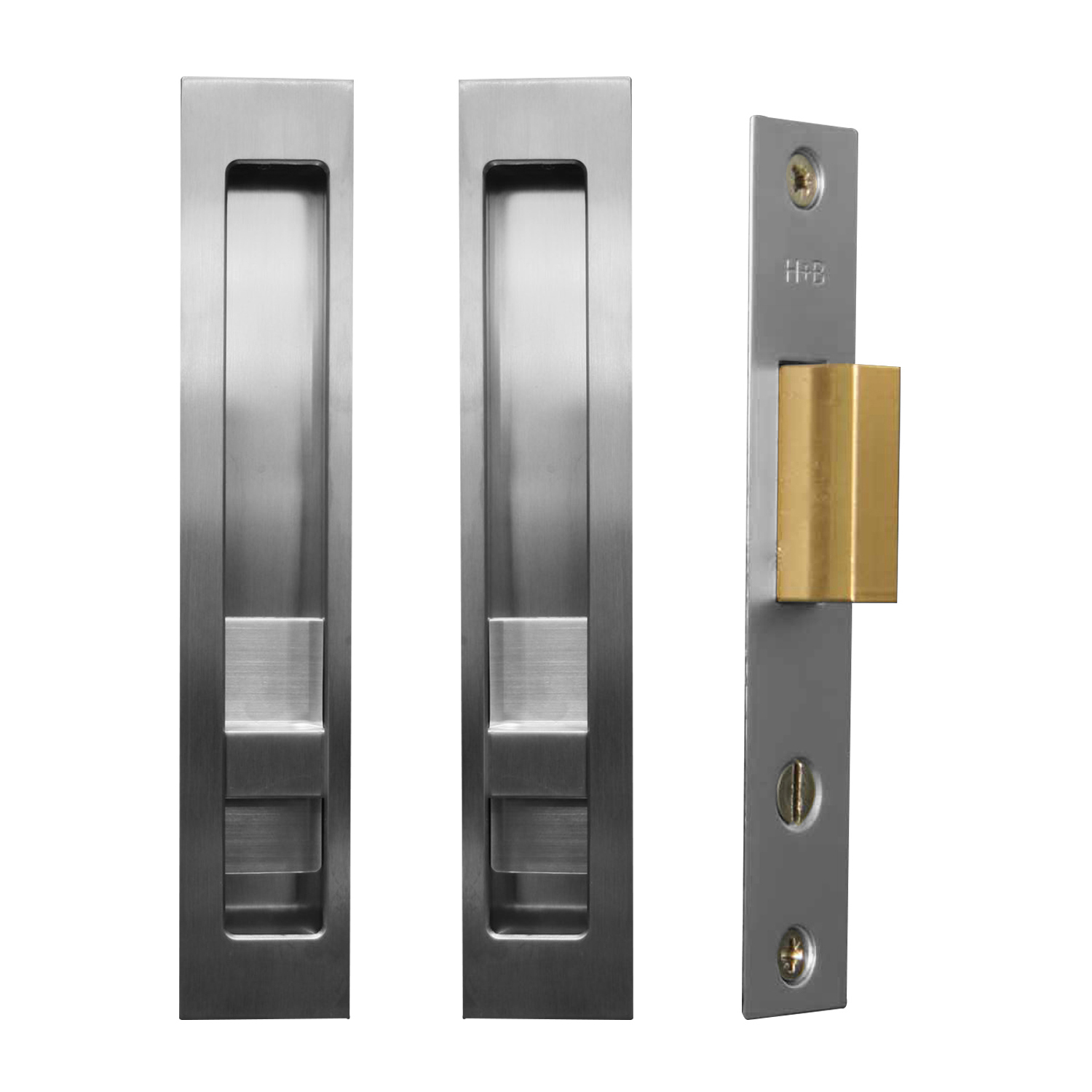

Halliday & Baillie Pivot Door Privacy Set Flush Pull Snib/Nothing
HB1658 SC

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 6-8 business weeks after payment is made.

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 690 D Series Deadbolt Lock Body
• 2 x HB 677 Flush Pulls
• 2 x HB 604 Timber Fixing Kit
• 1 x Strike and Dust Box
• 2 x Spindle Lengths (please specify door thickness for doors over 60mm)
• Fasteners

Features:

• Developed in conjunction with the standard HB1650 Series sets to work on pivot, hinge and bi-fold doors
• Function on sliding doors and in a bi-fold capacity and come as left or right-handed sets

Specifications:

• Flush Pull Material: Diecast Zinc and Brass
• Lock Body Material: Diecast Zinc, Brass, 316 Stainless Steel

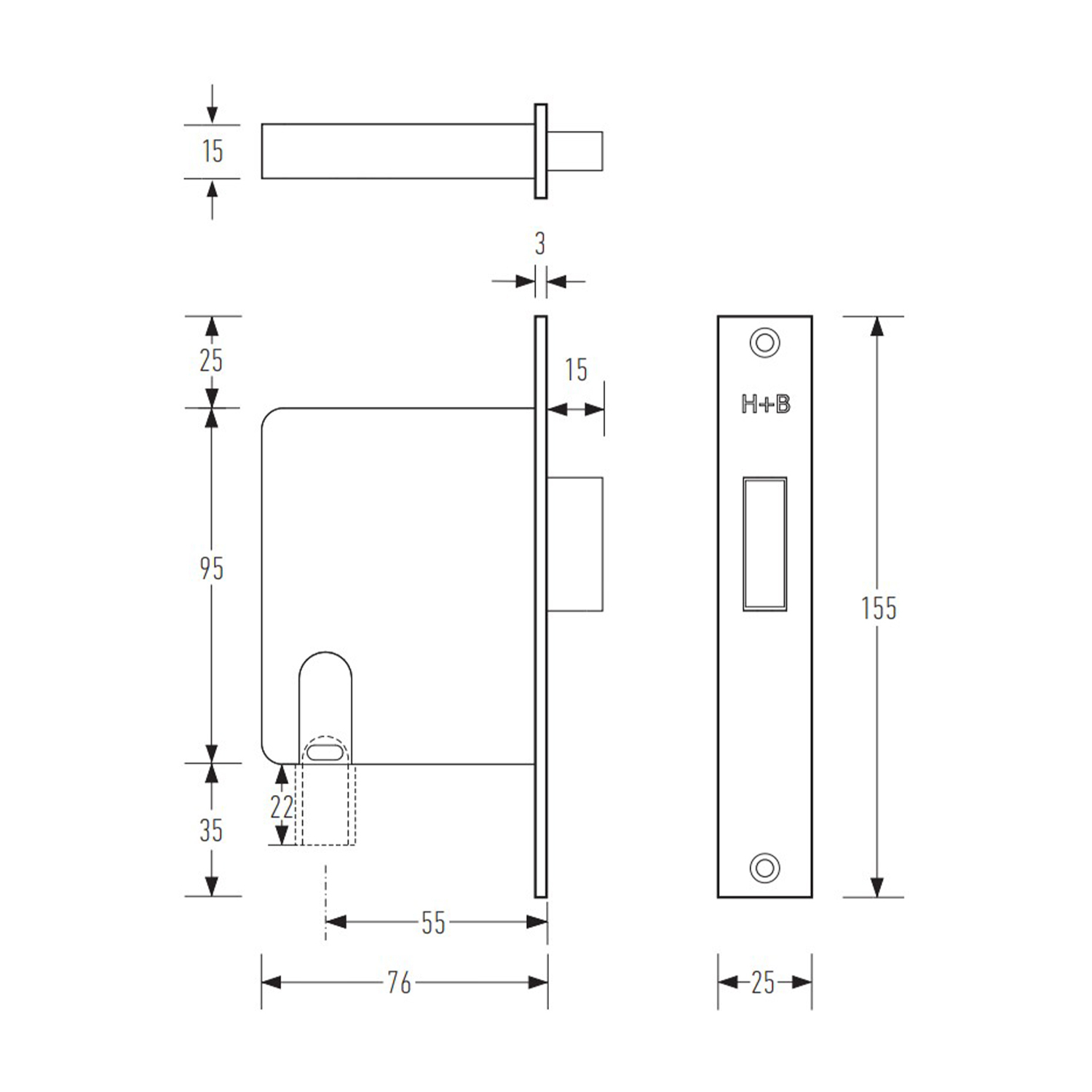

• Lock Body Length: 95mm
• Lock Body Width: 15mm
• Lock Body Depth: 76mm
• Backset: 55mm
• Lock Faceplate Length: 155mm
• Lock Faceplate Width: 25mm
• Minimum Door Thickness: 45mm

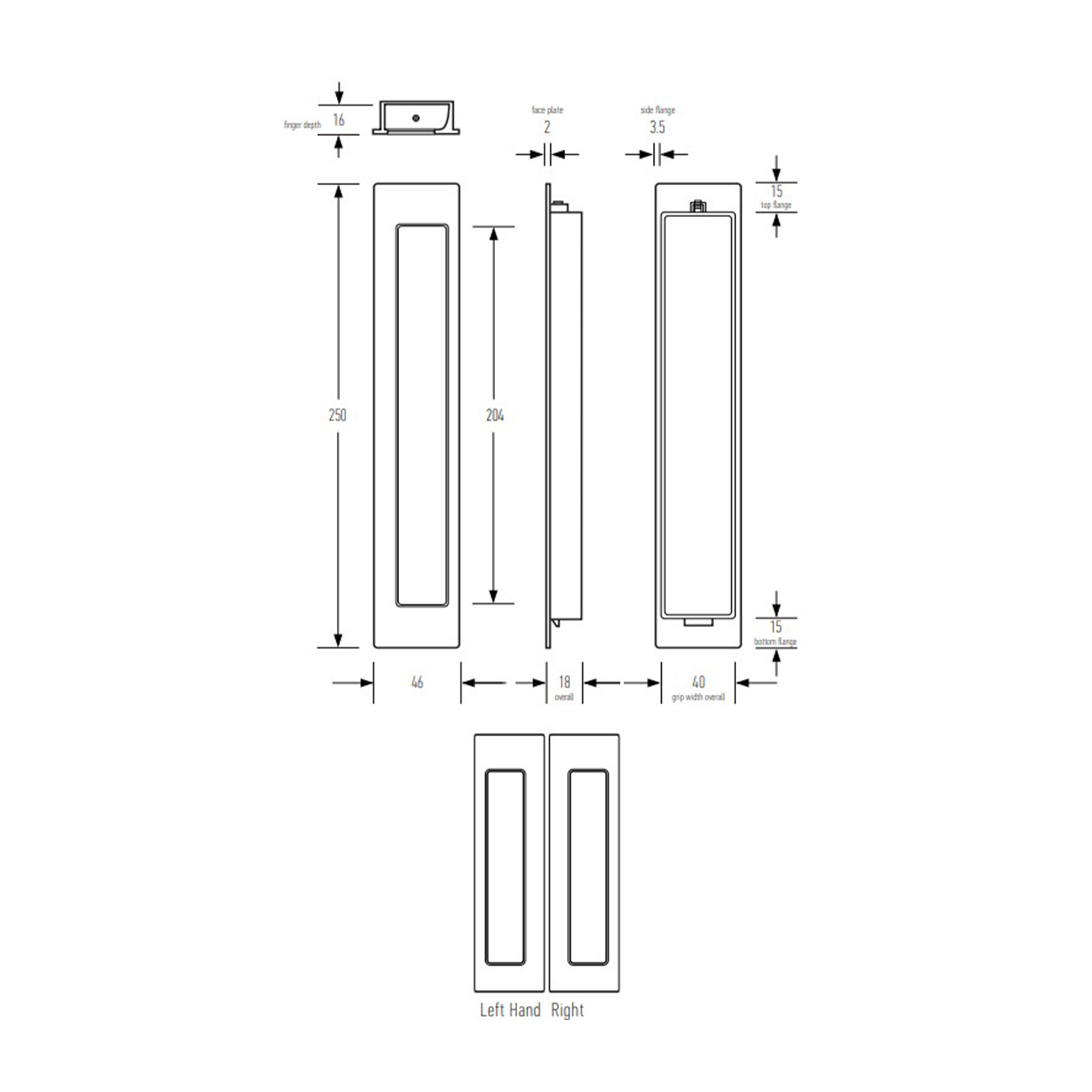

• Flush Pull Length: 250mm
• Flush Pull Width: 46mm
• Flush Pull Depth: 18mm
• Internal Depth: 16mm
• Finish: Satin Chrome
