Interlock Window Stay 503mm Non-Friction Hinge Stainless Steel Pair P1004NF
SKU : ASSP1004NF
LEAVES WAREHOUSE IN 4 BUSINESS DAYS
YOU SAVE $7.88 (10%)

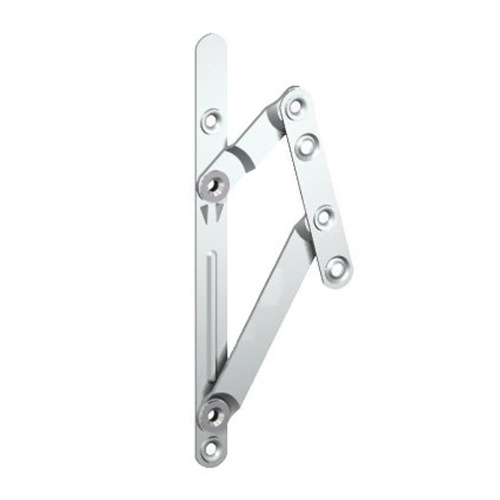

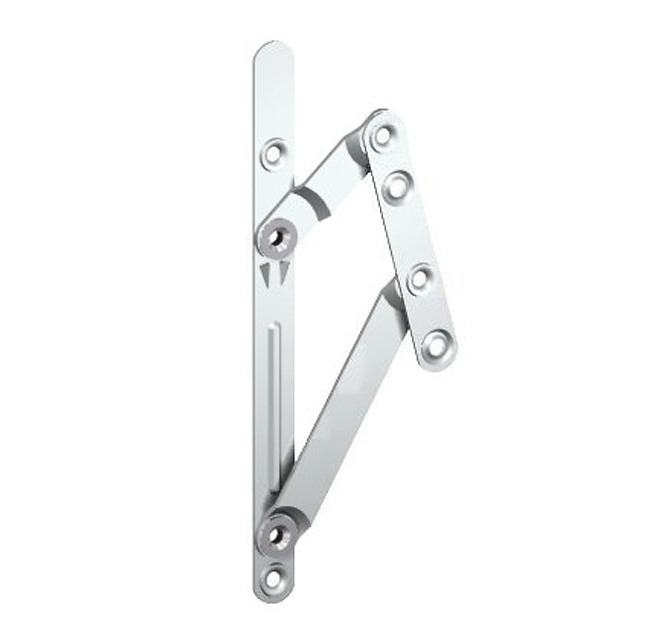

Interlock Window Non-Friction Stay
4-B Series 500 NF
P1004NF
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.
- A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes.
- Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
- Non-handed
- Manufactured with the unique “pull-in†feature
- No sliding channels
- Factory set friction levels mean no on-site adjustment is required
- Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
- Incorporates the Interlock patented frictional bearing
- Supplied in pairs
Specifications:
- Opening Angle: 25 Degrees
- Max Sash Weight: 30kg
- Fixing Surfaces: Timber, Metal
- Finish: Stainless Steel

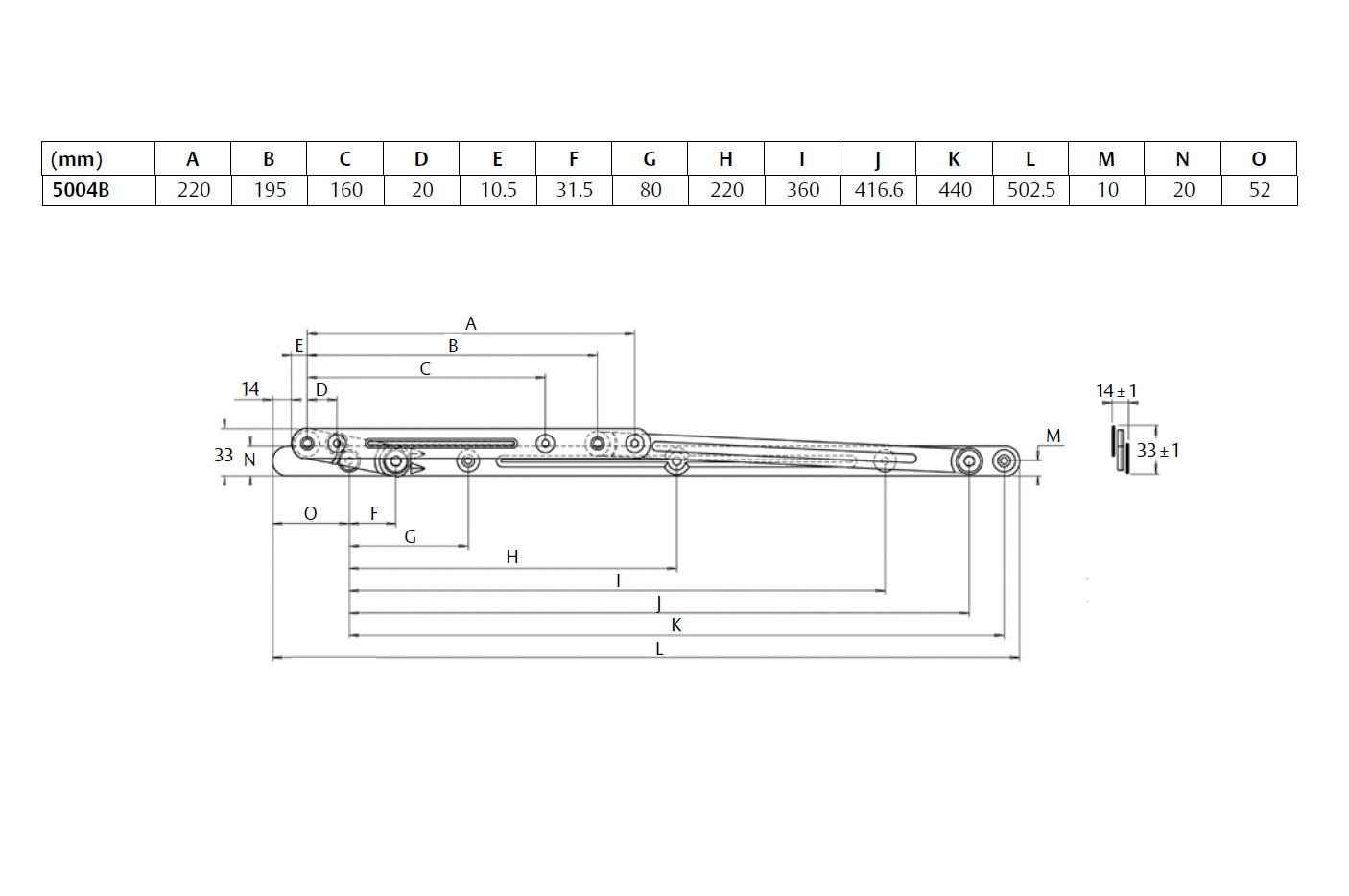

- Dimensions: shown in images
SKU | ASSP1004NF |
Brand | Interlock |
