Iver Annecy Door Lever on Round Rose Passage Kit
0329KPASS60

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

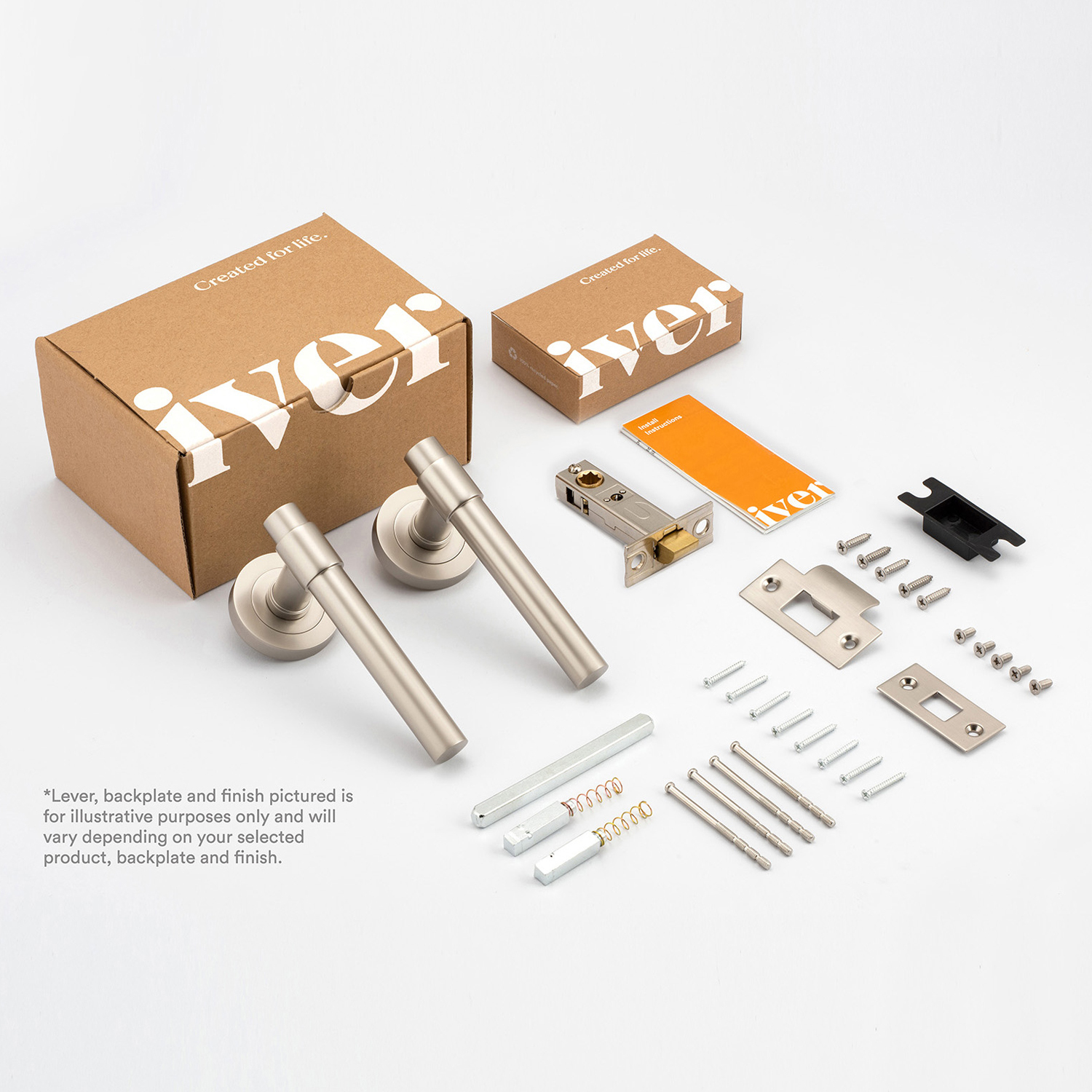

Includes:

  • 2 x Levers on Round Rose

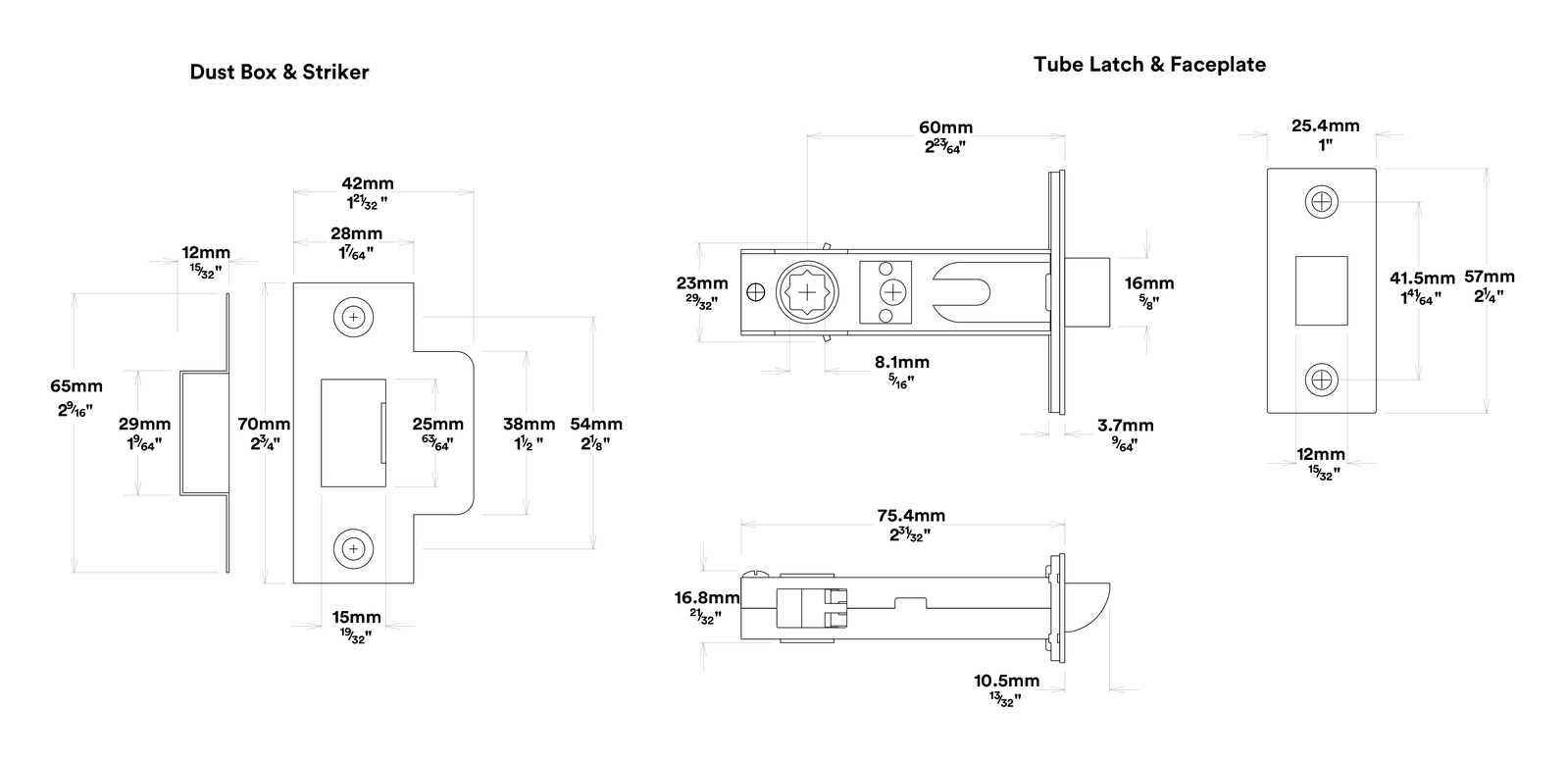

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 18 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 4 x Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • Traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice
  • A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time
  • For internal doors where a lock is not required, including bedrooms, living rooms, hall doors, and laundries

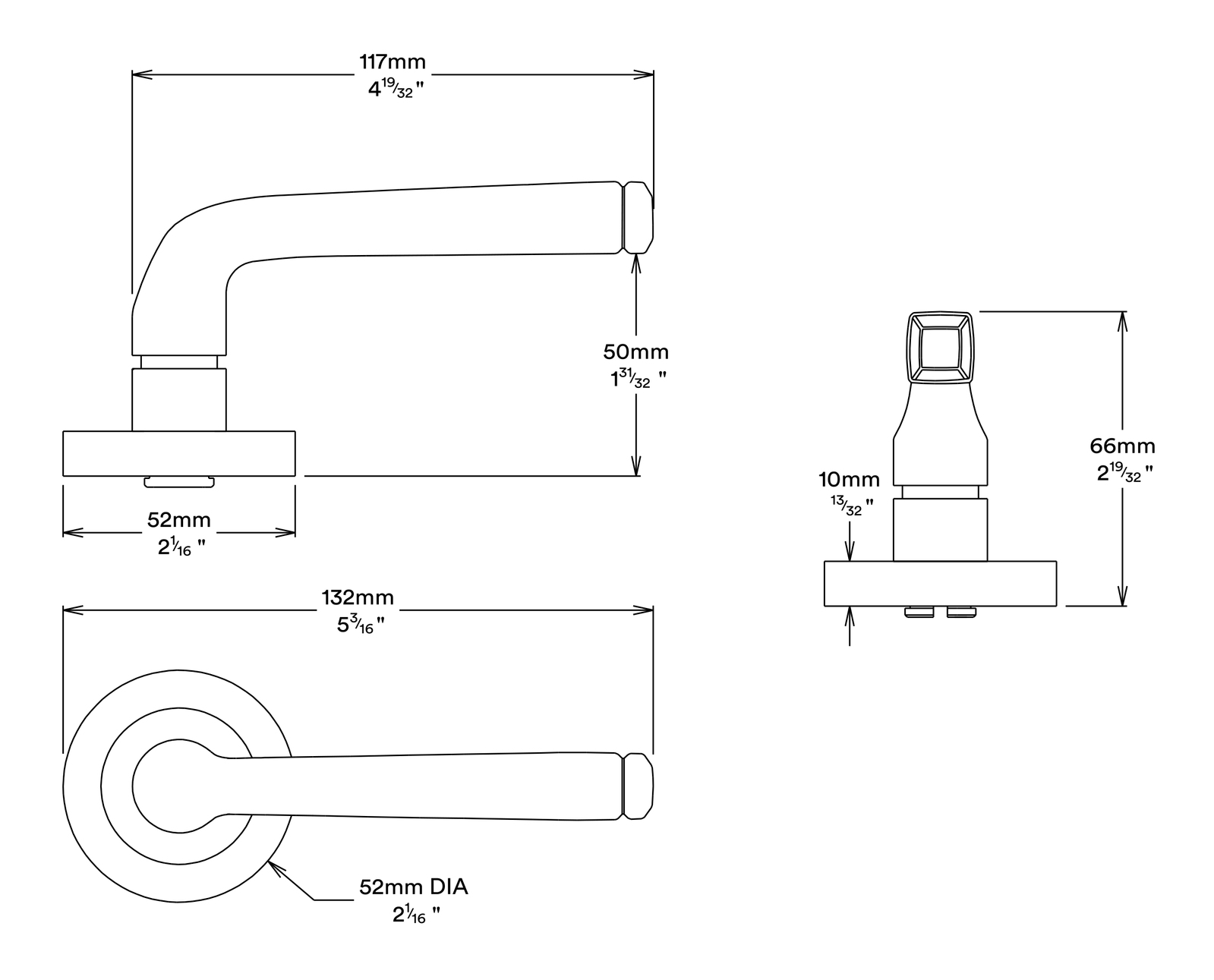

Specifications:

  • Backset: 60mm
  • Backplate Diameter: 52mm
  • Height: 52mm
  • Width: 52mm
  • Length: 117mm
  • Projection: 66mm
  • Centre to Centre: 41.5mm
  • Finish: Satin Nickel

Notes:

  • Levers and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
SKU TRA0329KPASS60
Barcode # 9343857314120
Brand Iver
