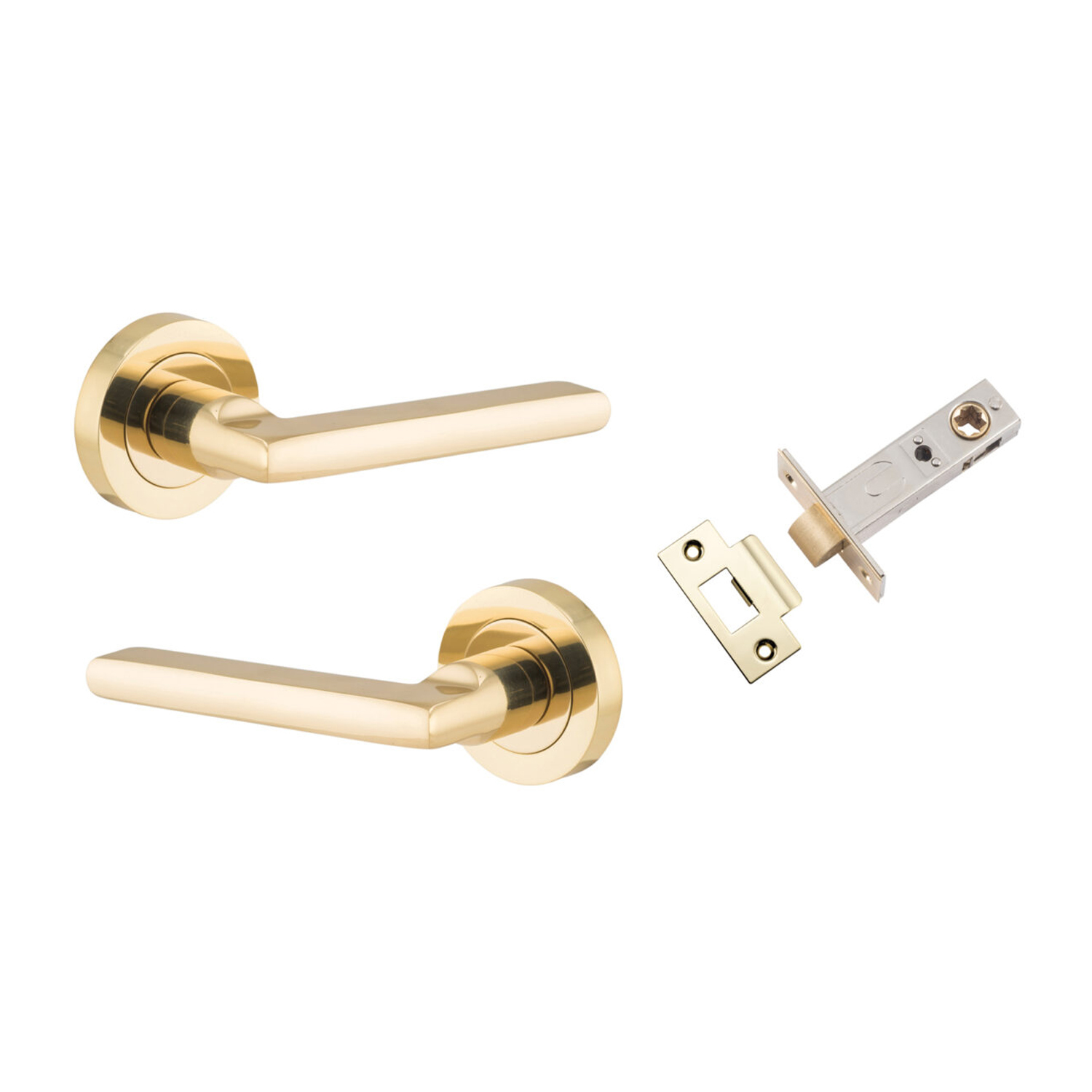

Iver Baltimore Door Lever Handle on Round Rose Passage Kit
9210KPASS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

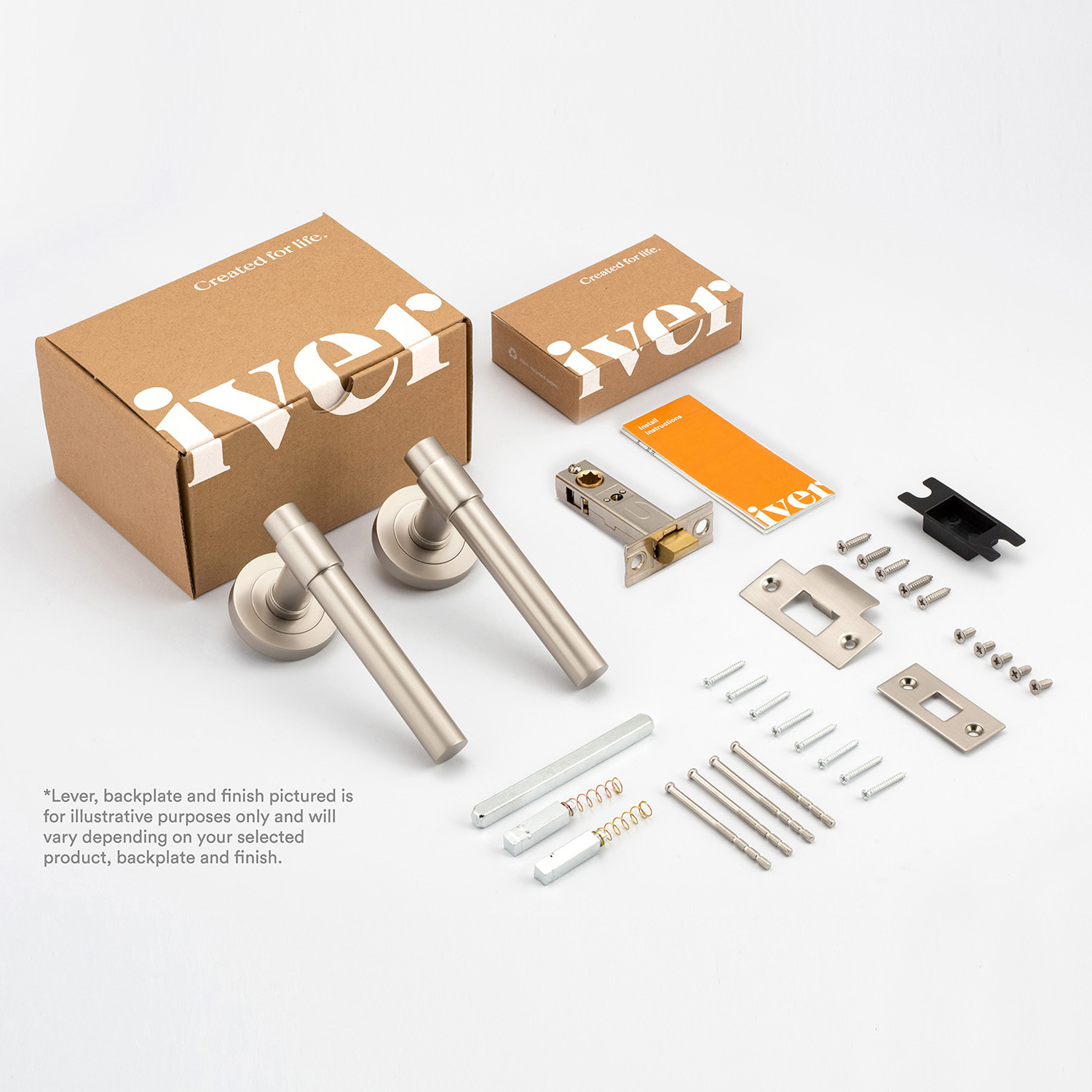

Includes:

• 2 x Levers on Round Roses

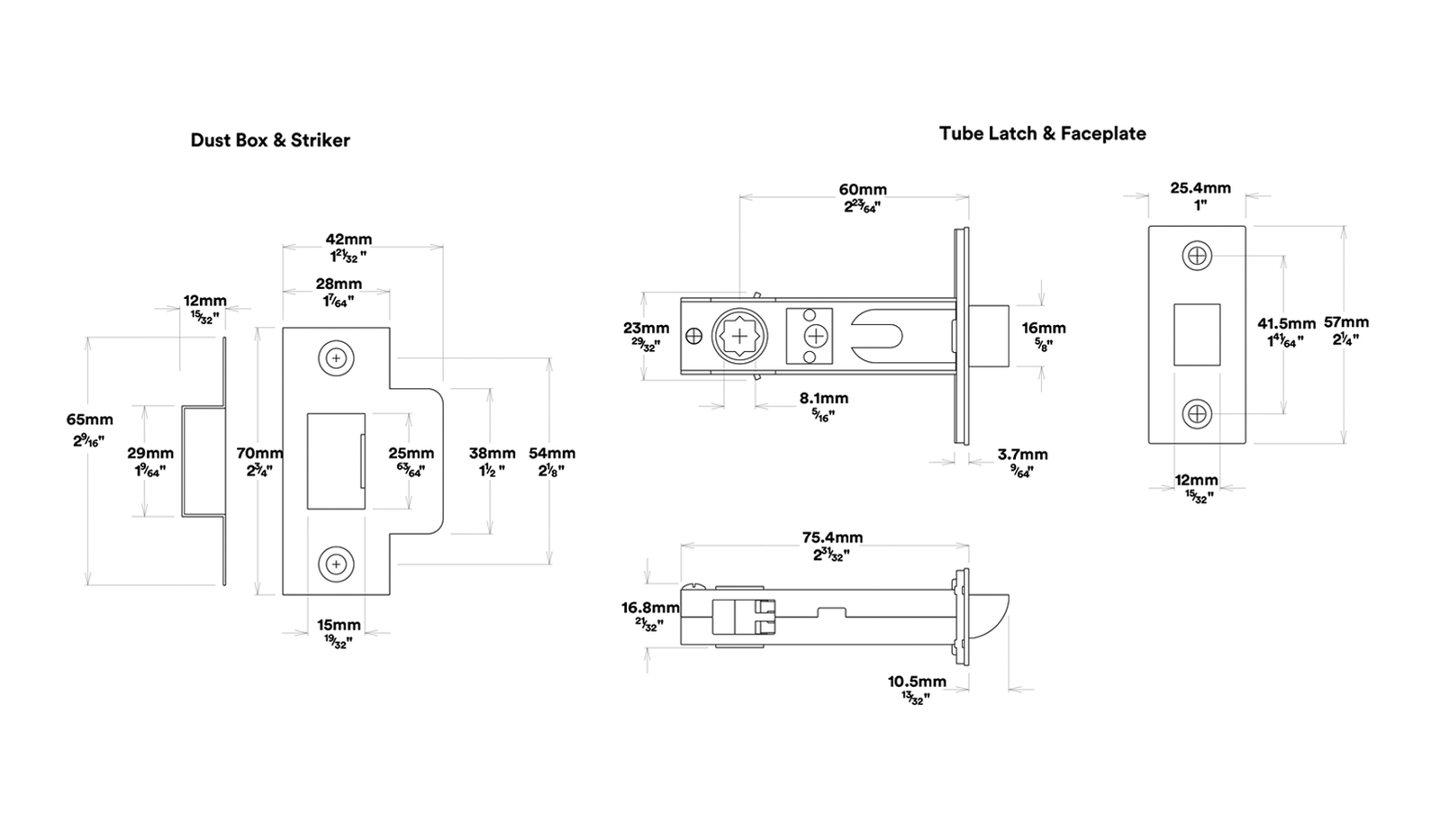

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 18 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 4 x Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic
• For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries
• Successfully tested to meet highest durability rating (500,000 cycles)

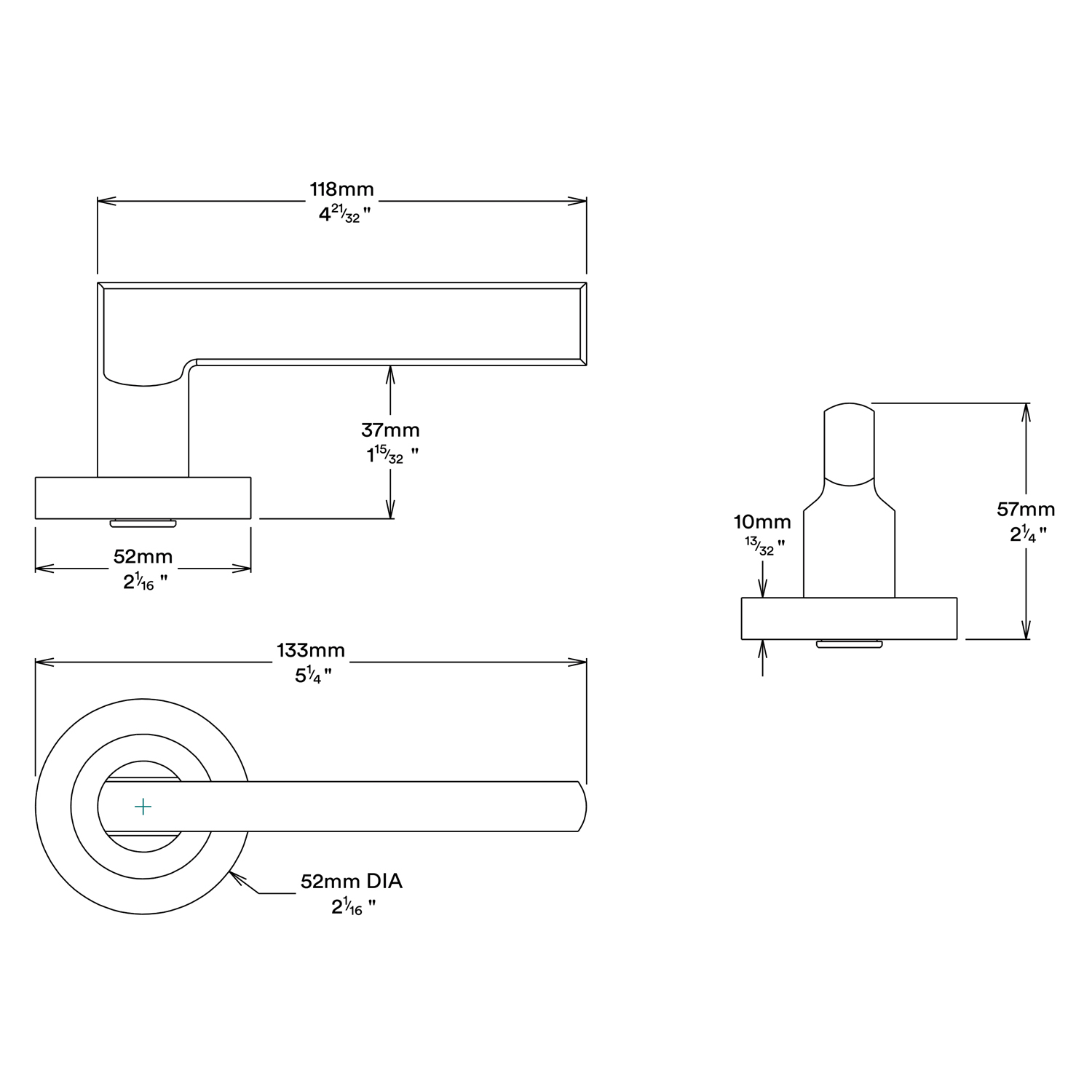

Specifications:

• Backset: 60mm
• Backplate Diameter: 52mm
• Height: 52mm
• Width: 52mm
• Length: 118mm
• Projection: 57mm
• Centre to Centre: 41.5mm
• Function: Passage
• Finish: Polished Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
