Iver Baltimore Door Lever on Oval Backplate Privacy Kit with Turn

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

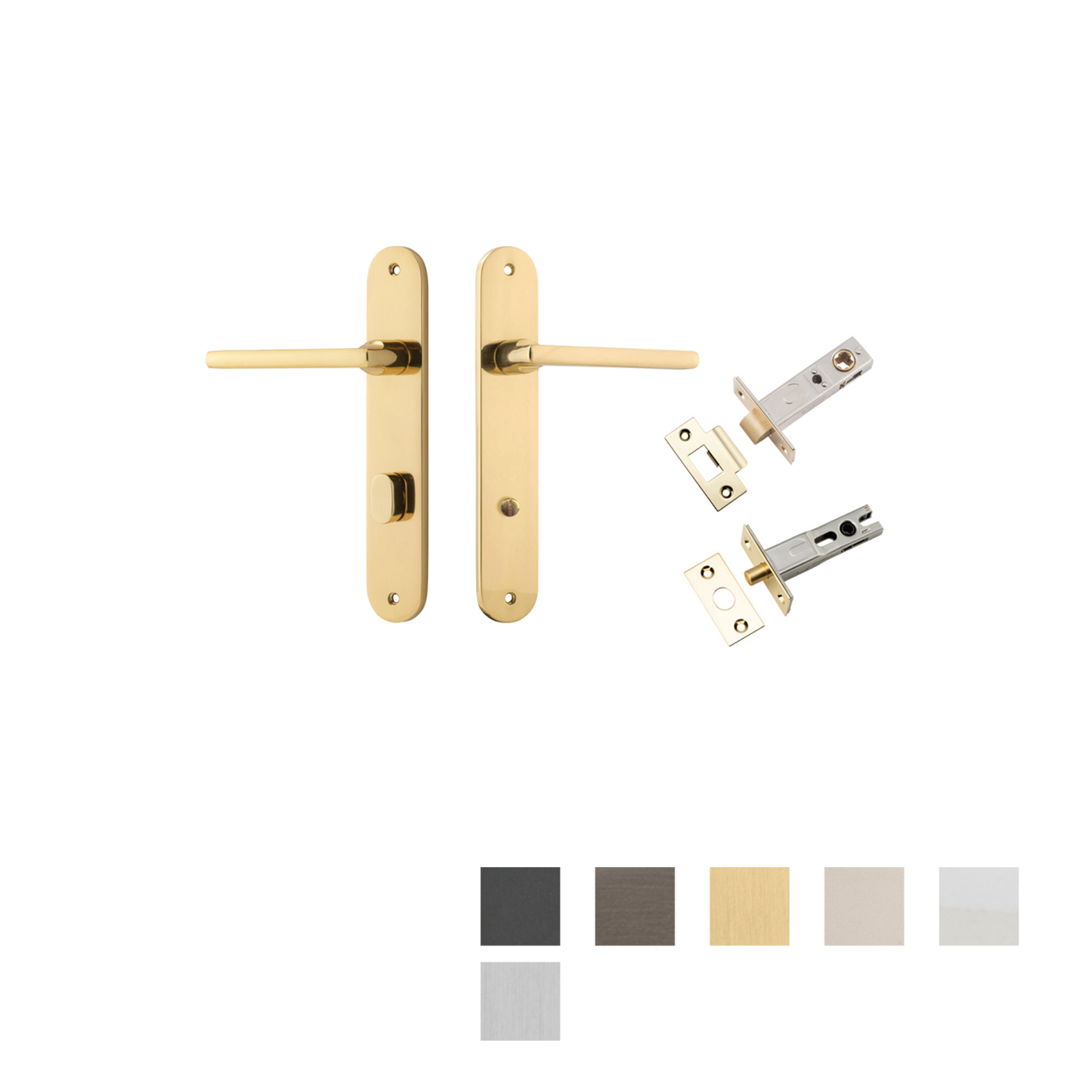

Includes:

  • 2 x Levers on Backplates

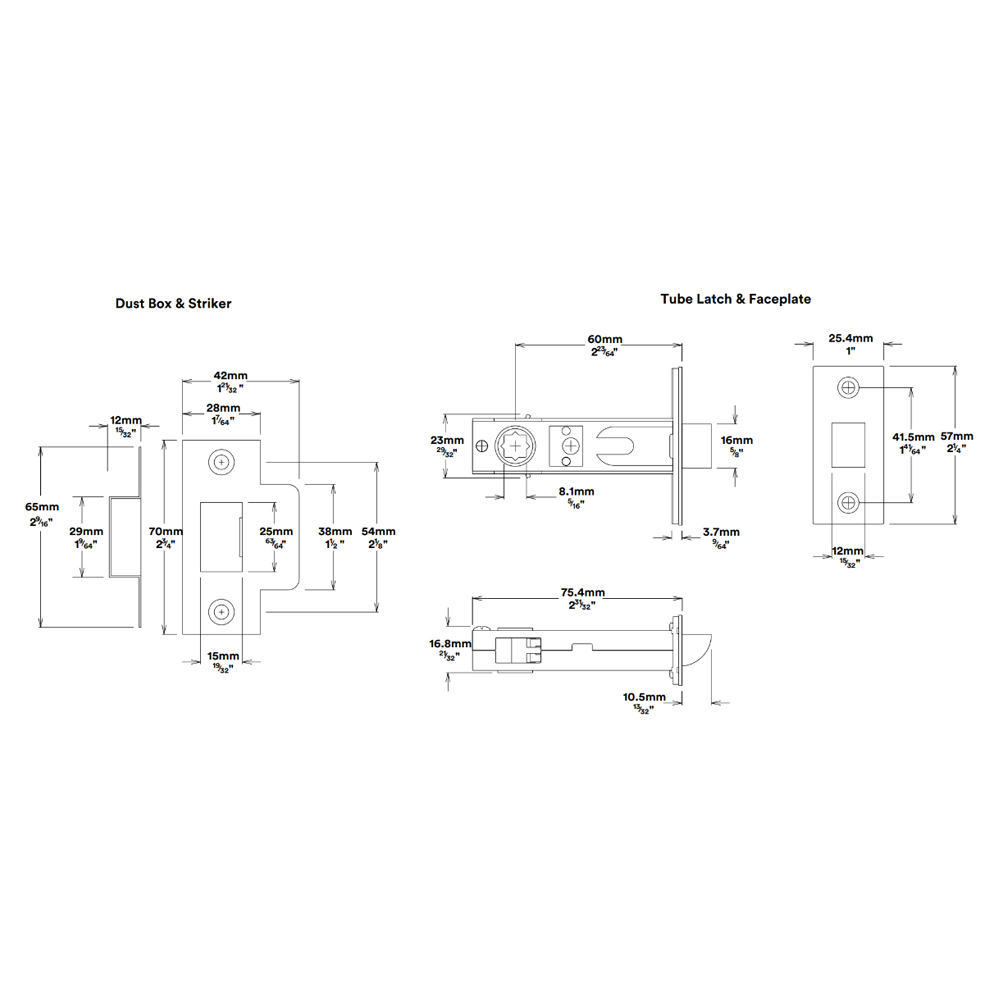

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate

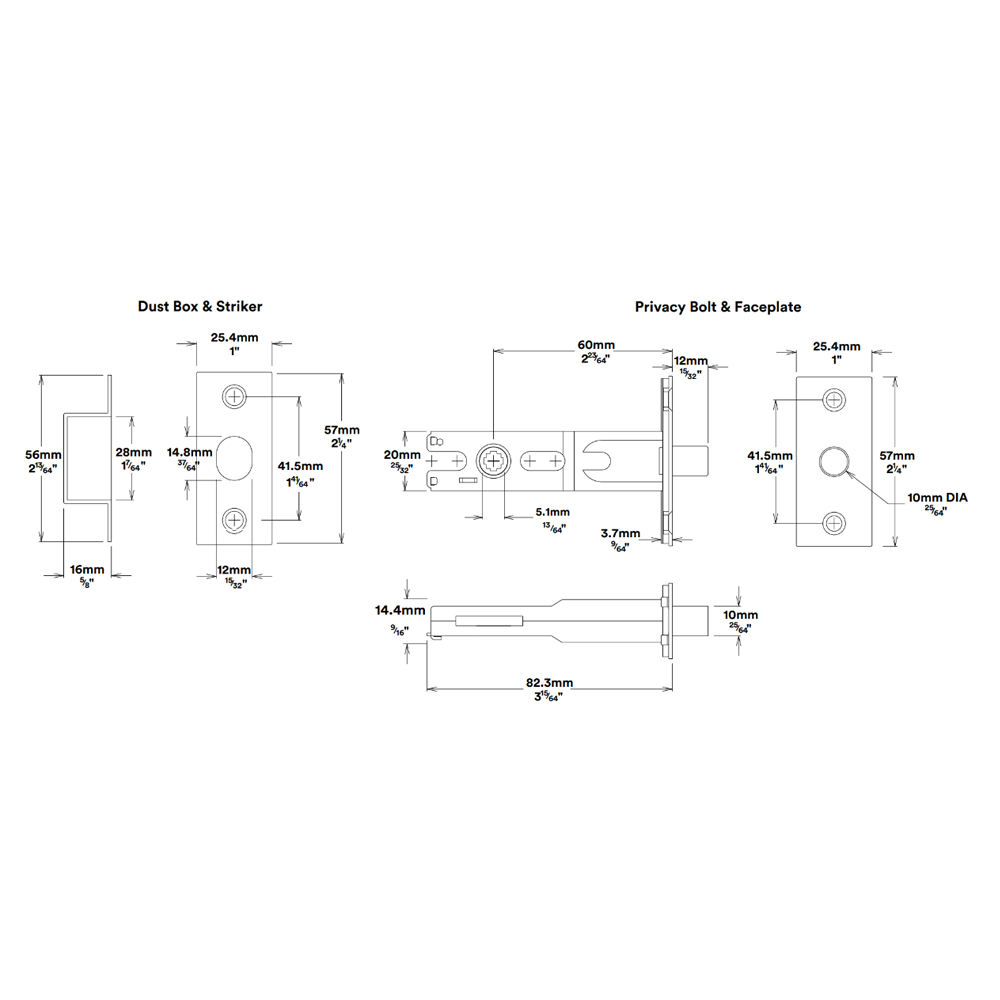

  • 1 x Privacy Bolt Round Backset 60mm
  • 20 x Screws
  • 2 x Tie Bolts
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 1 x Privacy Adaptor
  • 2 x Dust Boxes
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms
  • The Baltimore lever is a versatile option, boasting a slimline design that effortlessly integrates into the style of any project without overshadowing or detracting from the overall aesthetic
  • Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)

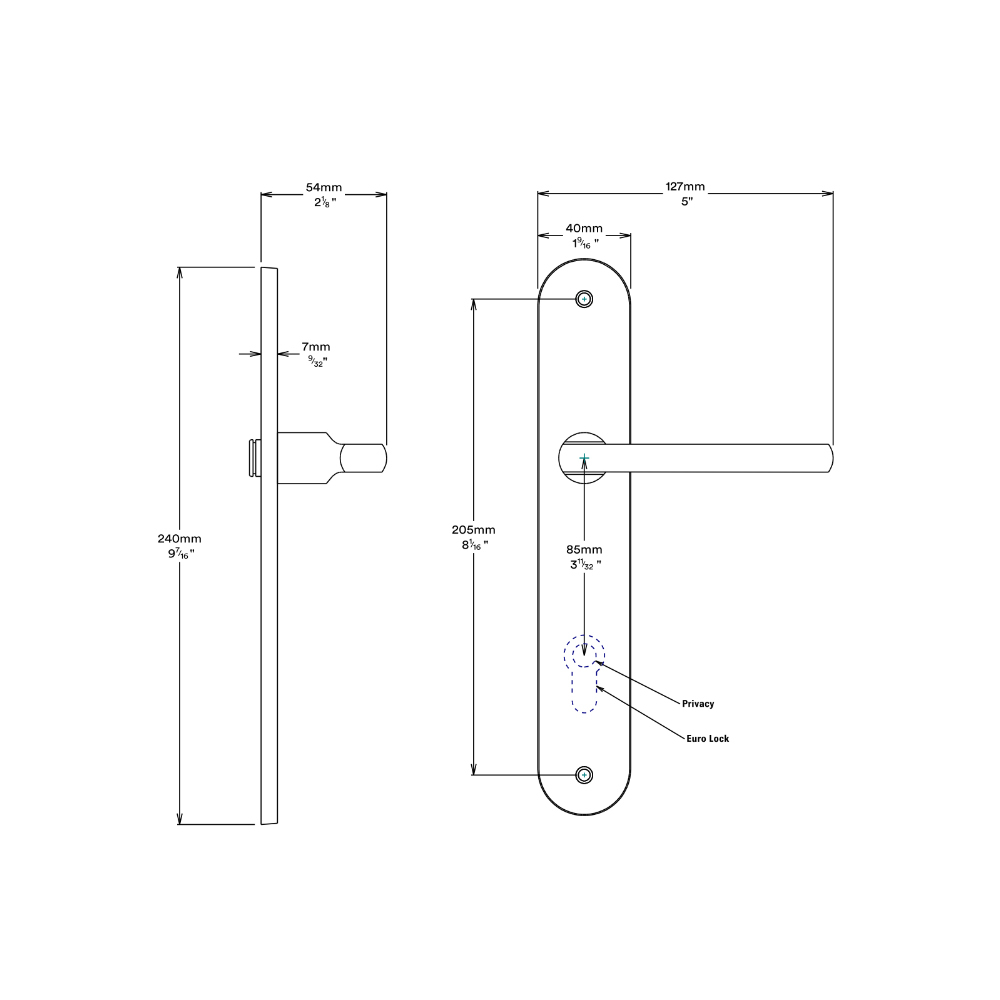

Specifications:

  • Backset: 60mm
  • Height: 240mm
  • Width: 40mm
  • Length: 118mm
  • Projection: 54mm
  • Centre to Centre: 205mm
  • Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Matt Black
    • Polished Brass
    • Polished Chrome
    • Satin Nickel
    • Signature Brass



SKU TRA1072KPRIV60_
Brand Iver
