Iver Baltimore Return Lever on Square Rose Inbuilt Privacy Kit
21176KIBPRIV60

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

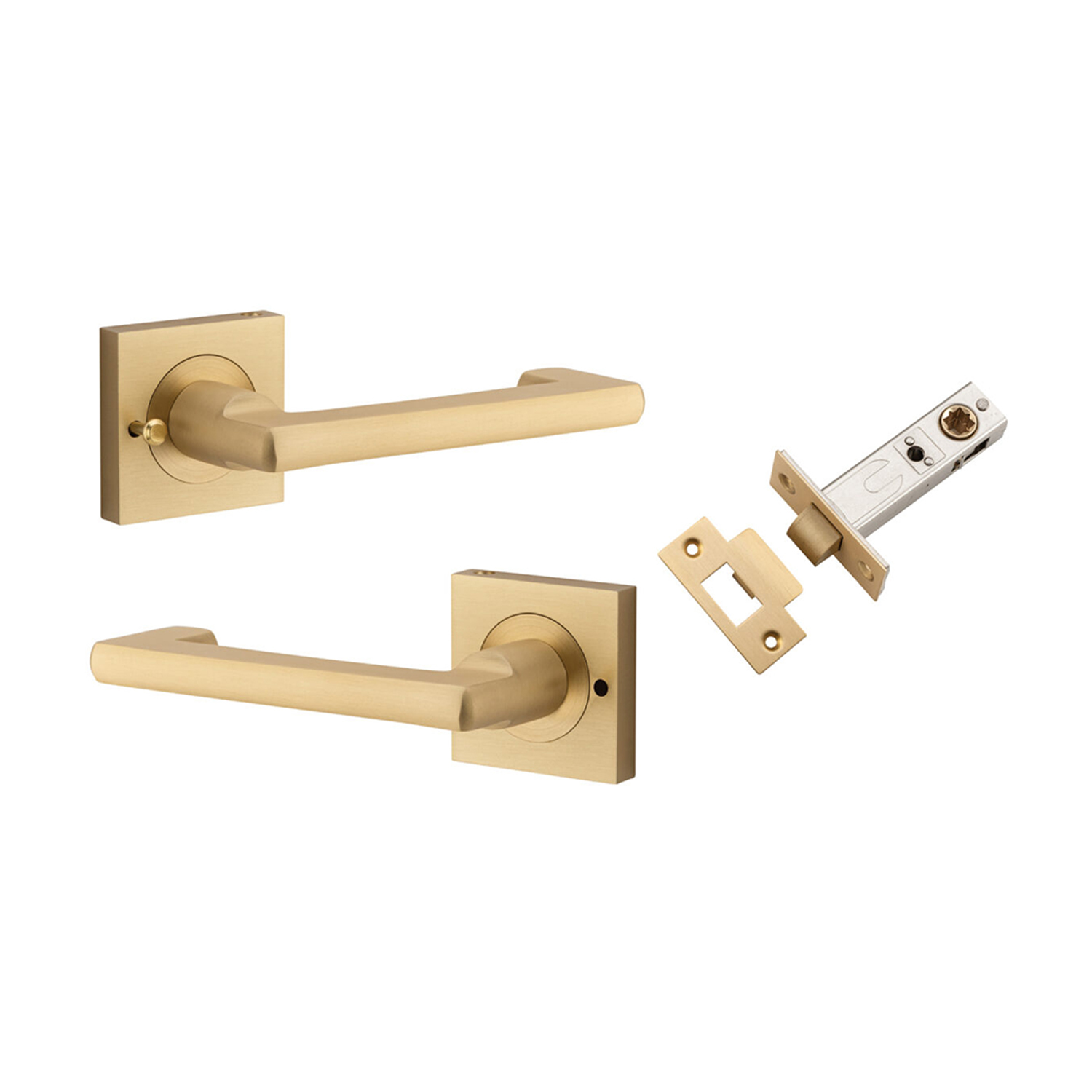

Includes:

• 2 x Levers on Square Rose

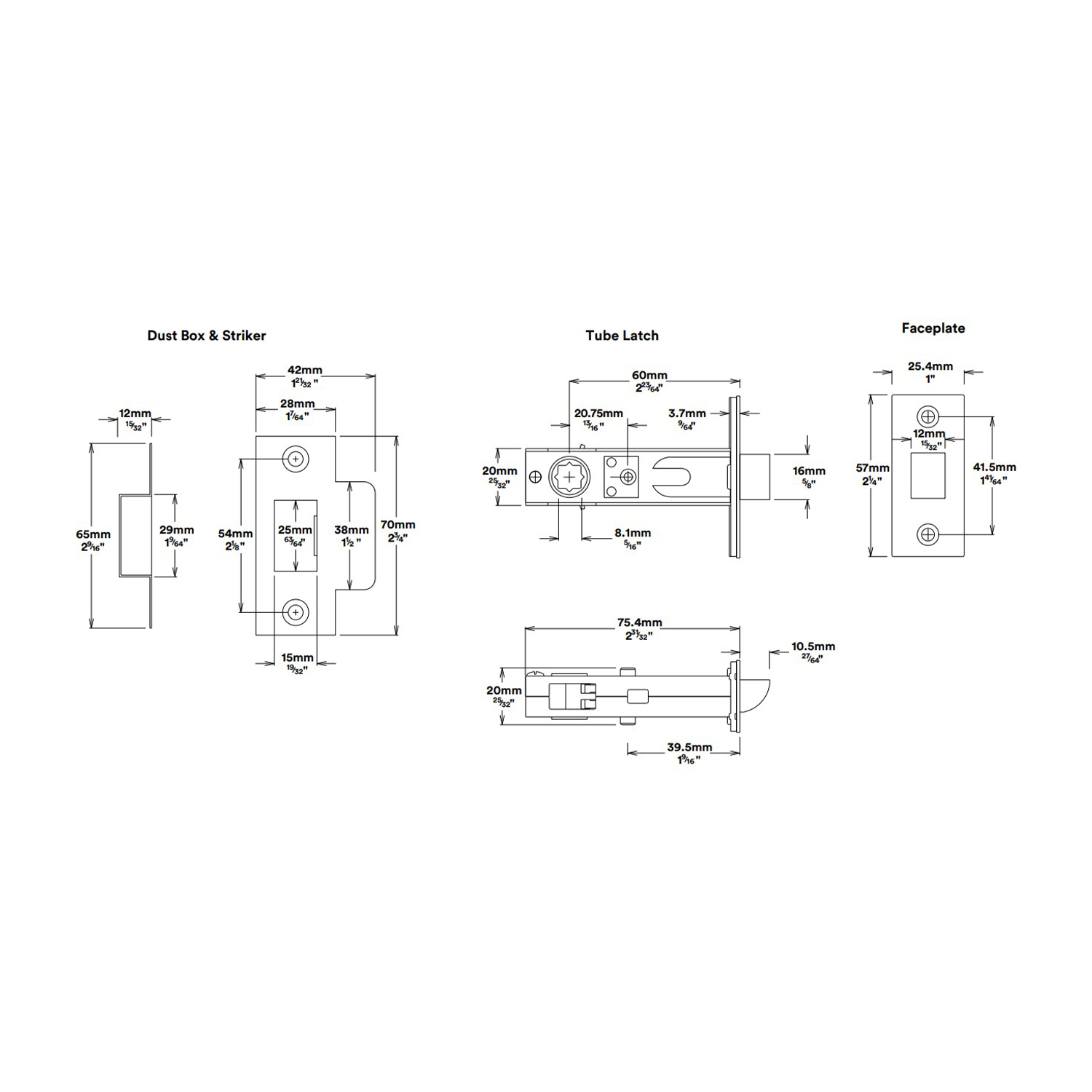

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• sleek lines and is fire-rated to 2 hours, making it the perfect option for any commercial project

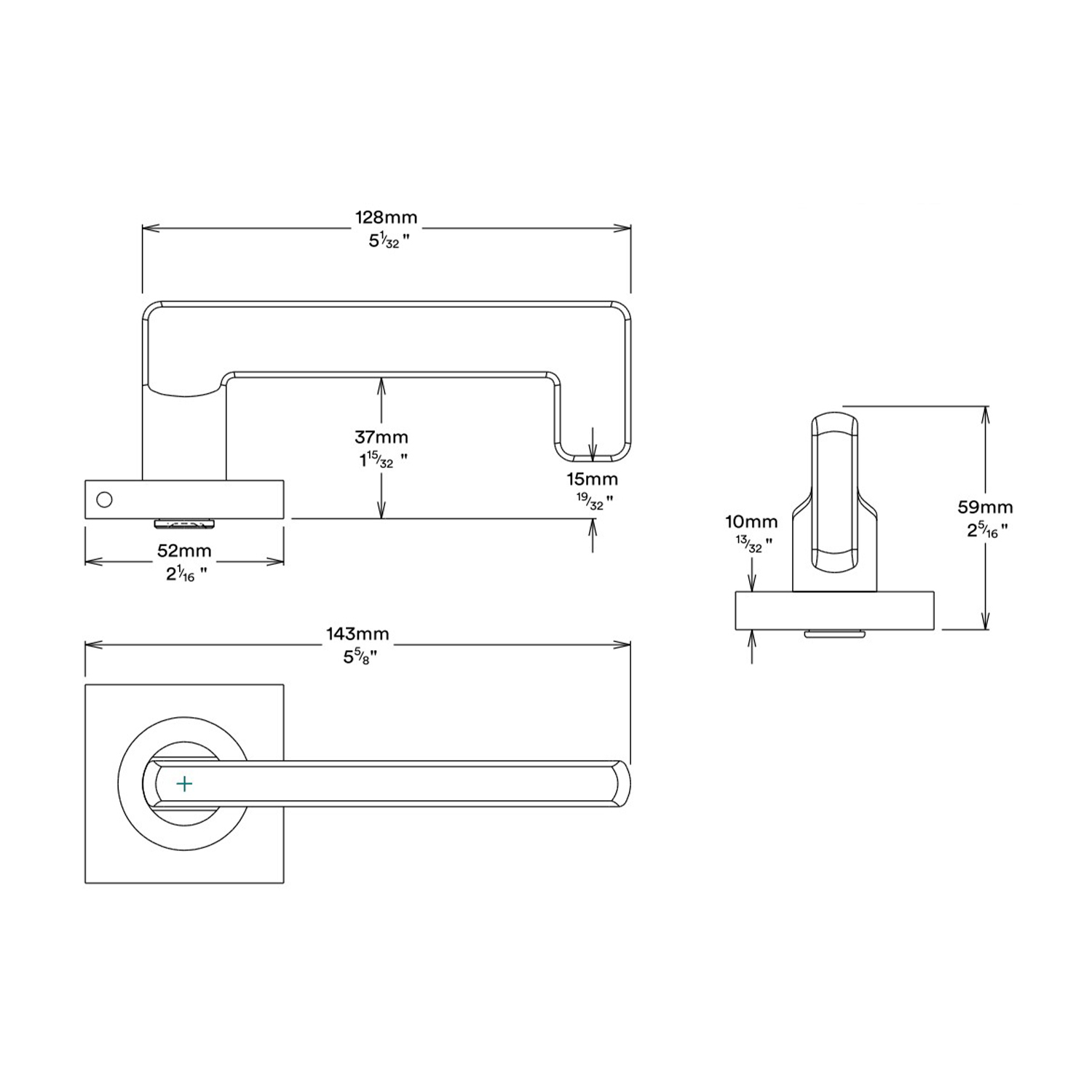

Specifications:

• Backset: 60mm
• Height: 52mm
• Width: 52mm
• Length: 128mm
• Projection: 57mm
• Centre to Centre: 41.5mm
• Finish: Brushed Brass

Notes:

• Levers and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014)
• Brushed Brass is a living finish with a clear satin lacquer. Over time, it will develop a unique patina with use. It's worth noting that this natural aging process isn't covered by the manufacturer warranty. If you have any questions about caring for your Brushed Brass product, feel free to ask our friendly staff.
