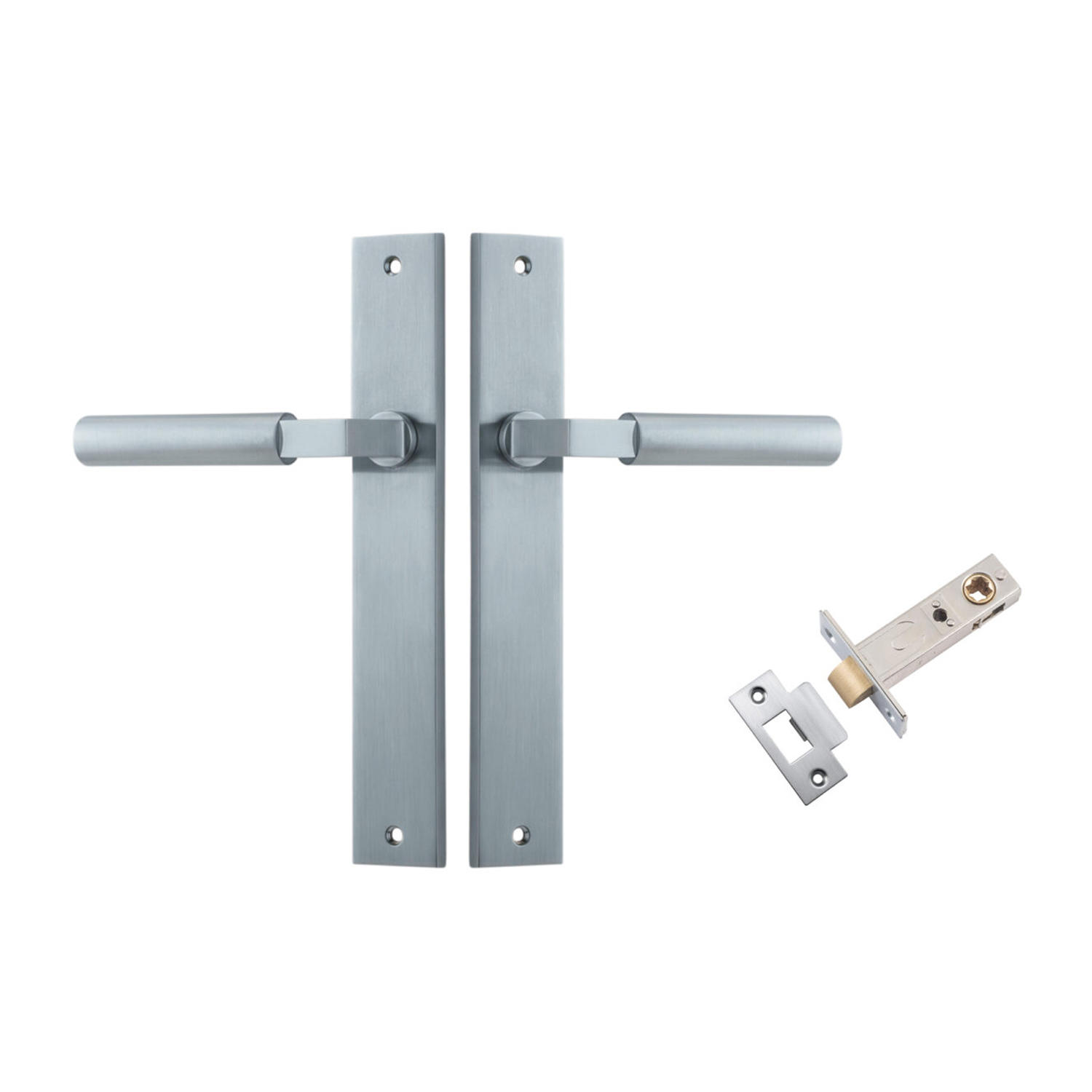

Iver Berlin Door Lever Handle on Rectangular Backplate Passage Kit
12250KPASS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

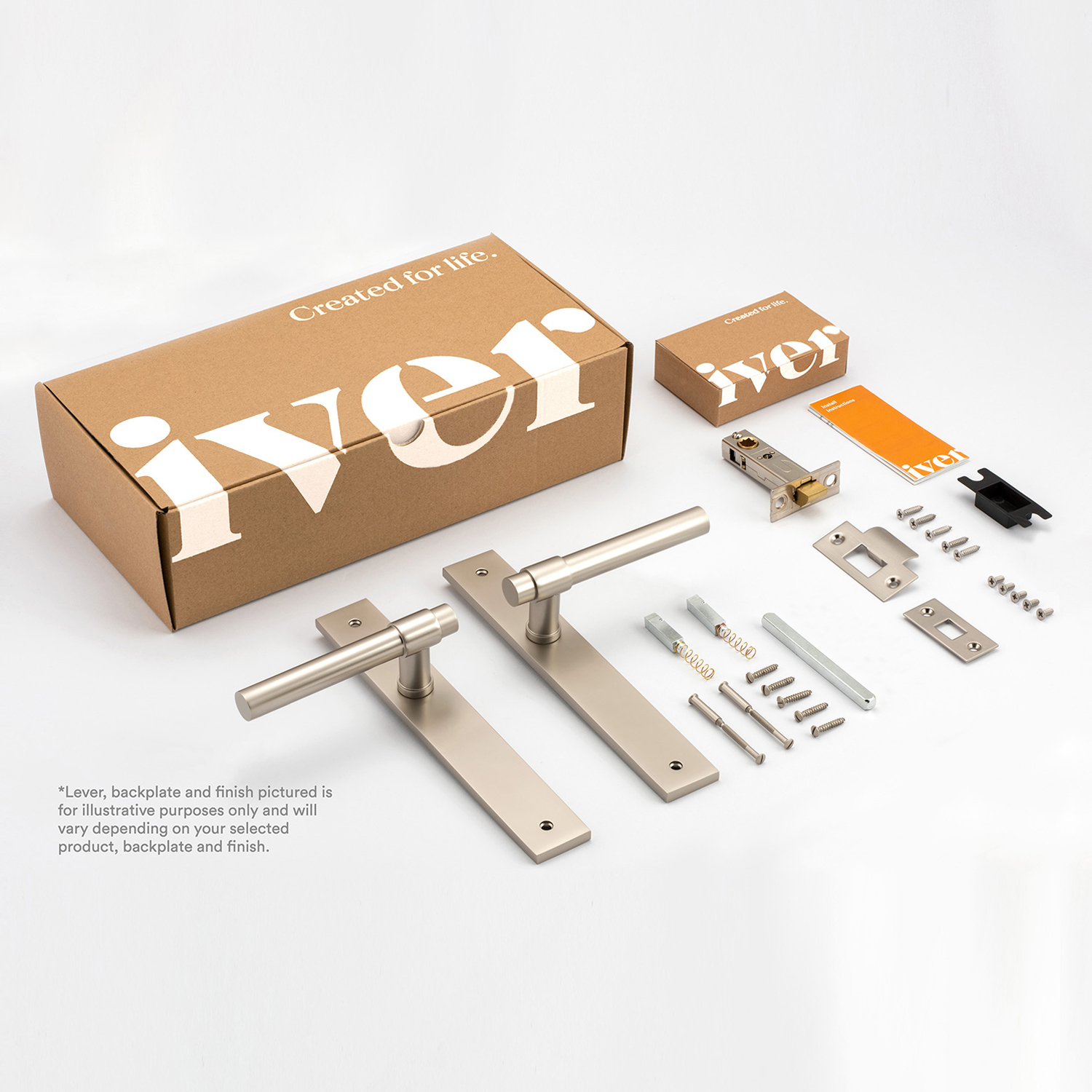

Includes:

  • 2 x Berlin Levers on Rectangular Backplate

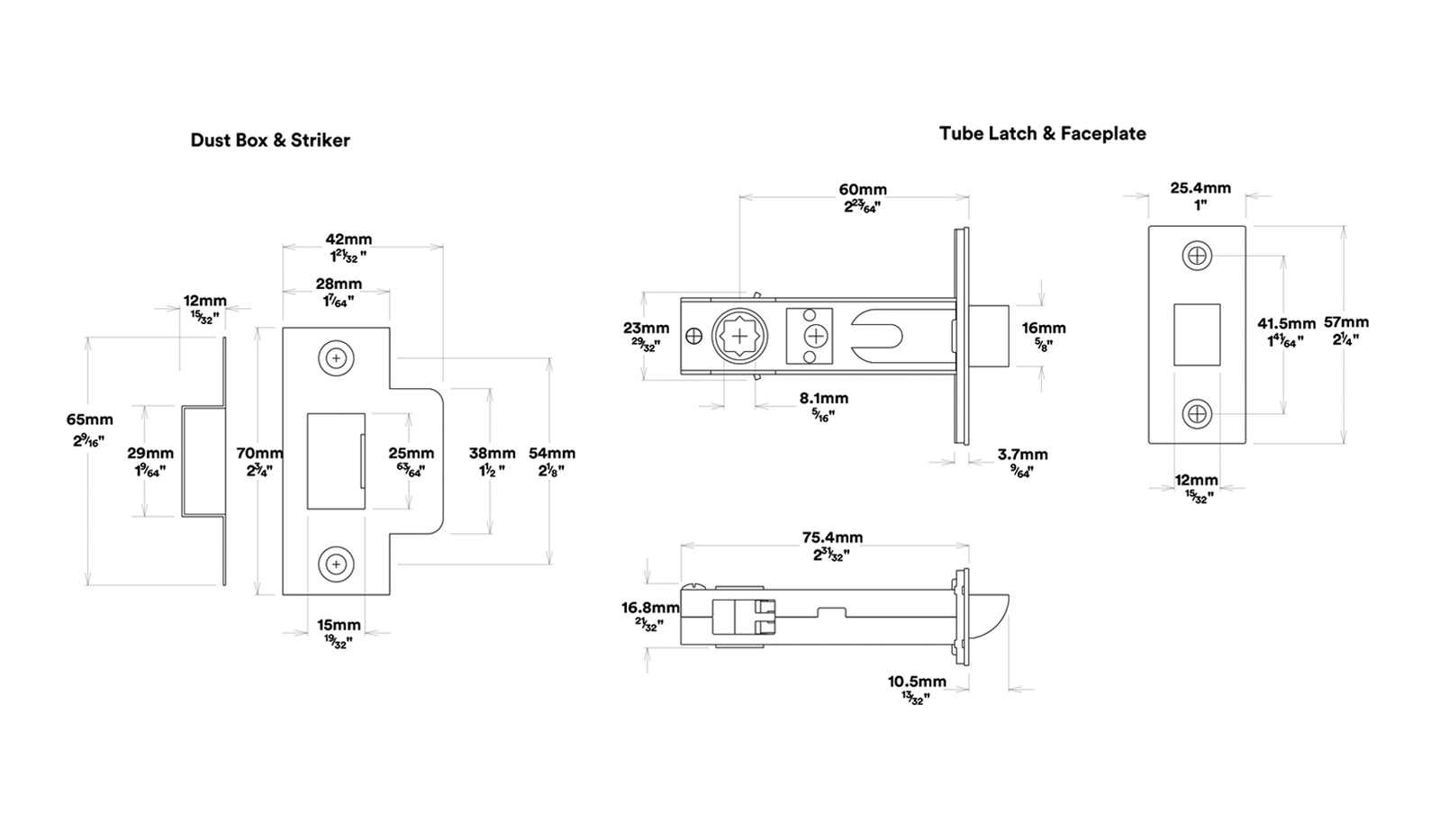

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 15 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • The Berlin lever features a sleek bar-shaped handle, reminiscent of a classic Bauhaus design
  • The lever’s clean and unadorned form is visually striking, while its ergonomic handle ensures ease of use
  • The Berlin lever is an essential choice for any project that seeks to capture the essence of modern style and practicality
  • For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries

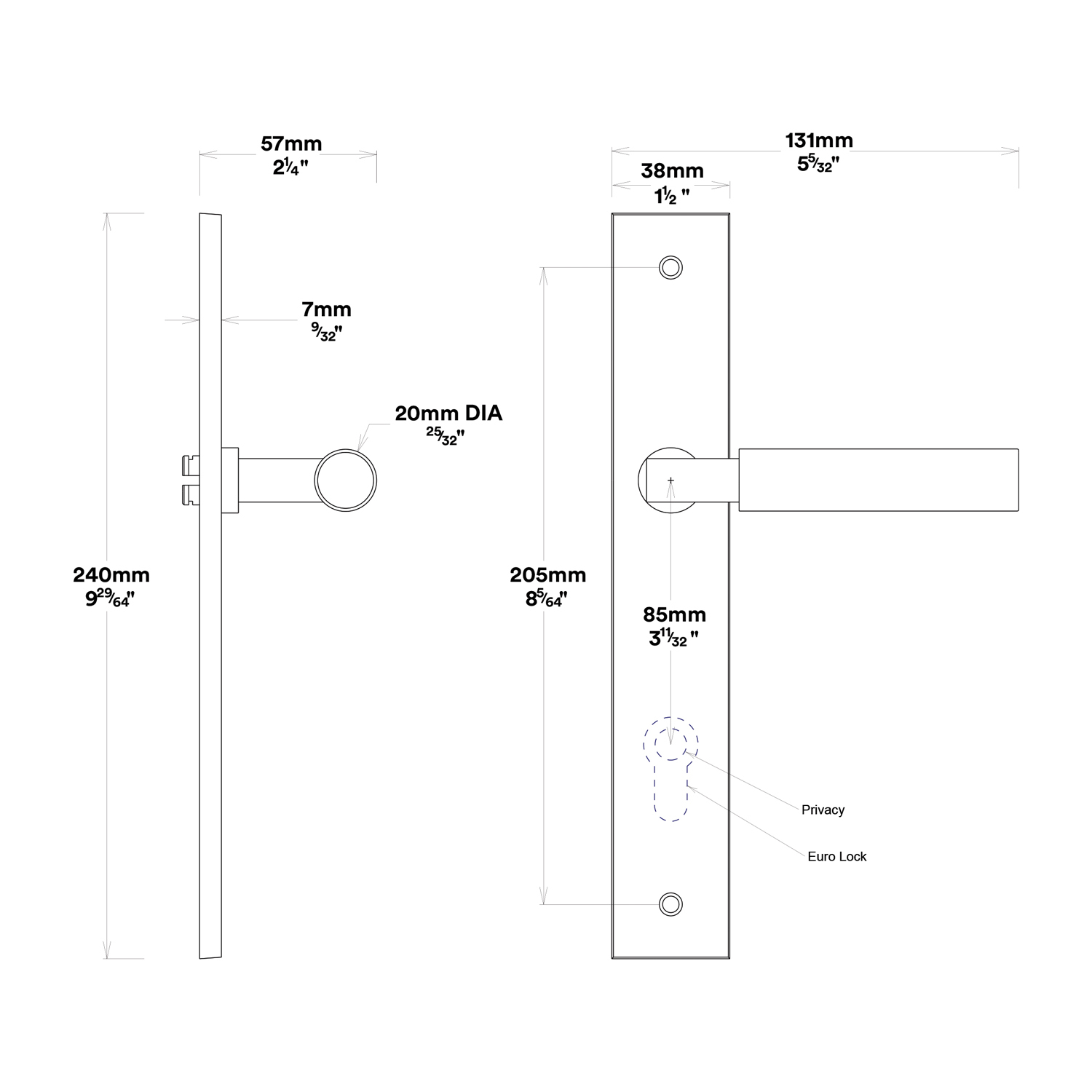

Specifications:

  • Height: 240mm
  • Width: 38mm
  • Length: 120mm
  • Projection: 57mm
  • Centre to Centre: 205mm
  • Function: Passage
  • Finish: Brushed Chrome

Notes:

  • Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
SKU TRA12250KPASS60
Barcode # 9343857498332
Brand Iver
