Iver Cambridge Door Knob on Stepped Backplate Entrance Kit

Entrance Lock Kit is defined as a lock that can be unlocked by a key from the outside and inside. Suitable for external doors that need high-security locks, including front and back entrance doors, garage access, patios, and storerooms.

Entrance Lock Kit Function - Outside key unlocks the outside knob, the inside knob is free at all times, push button locks the outside knob.

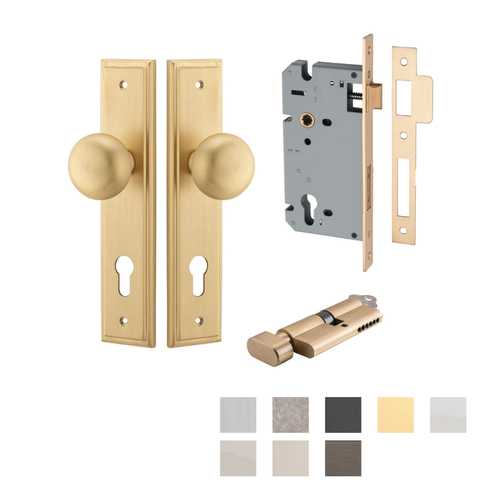

Includes:

• 2 x Knobs on Backplates

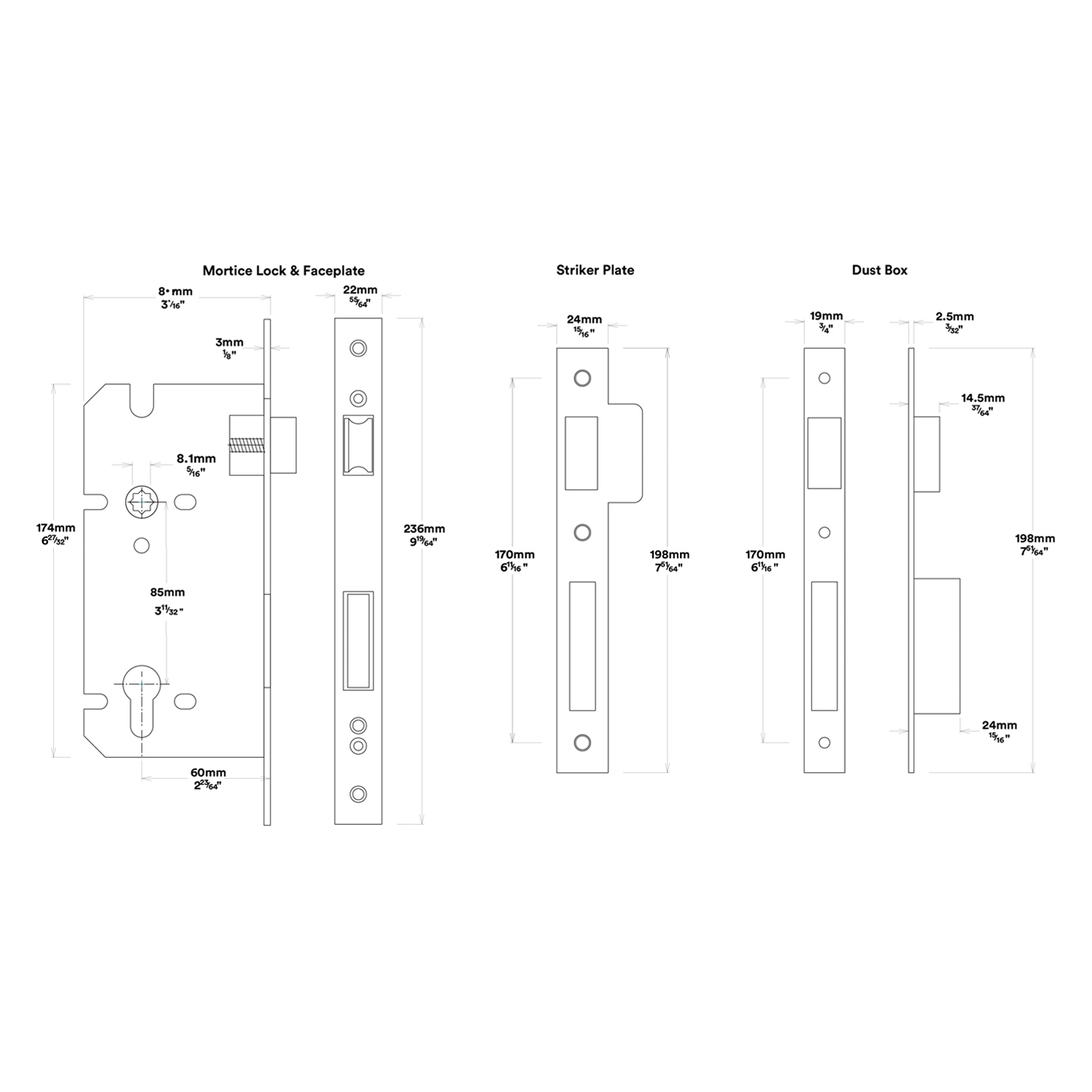

• 1 x Euro Mortice Lock CTC85mm Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

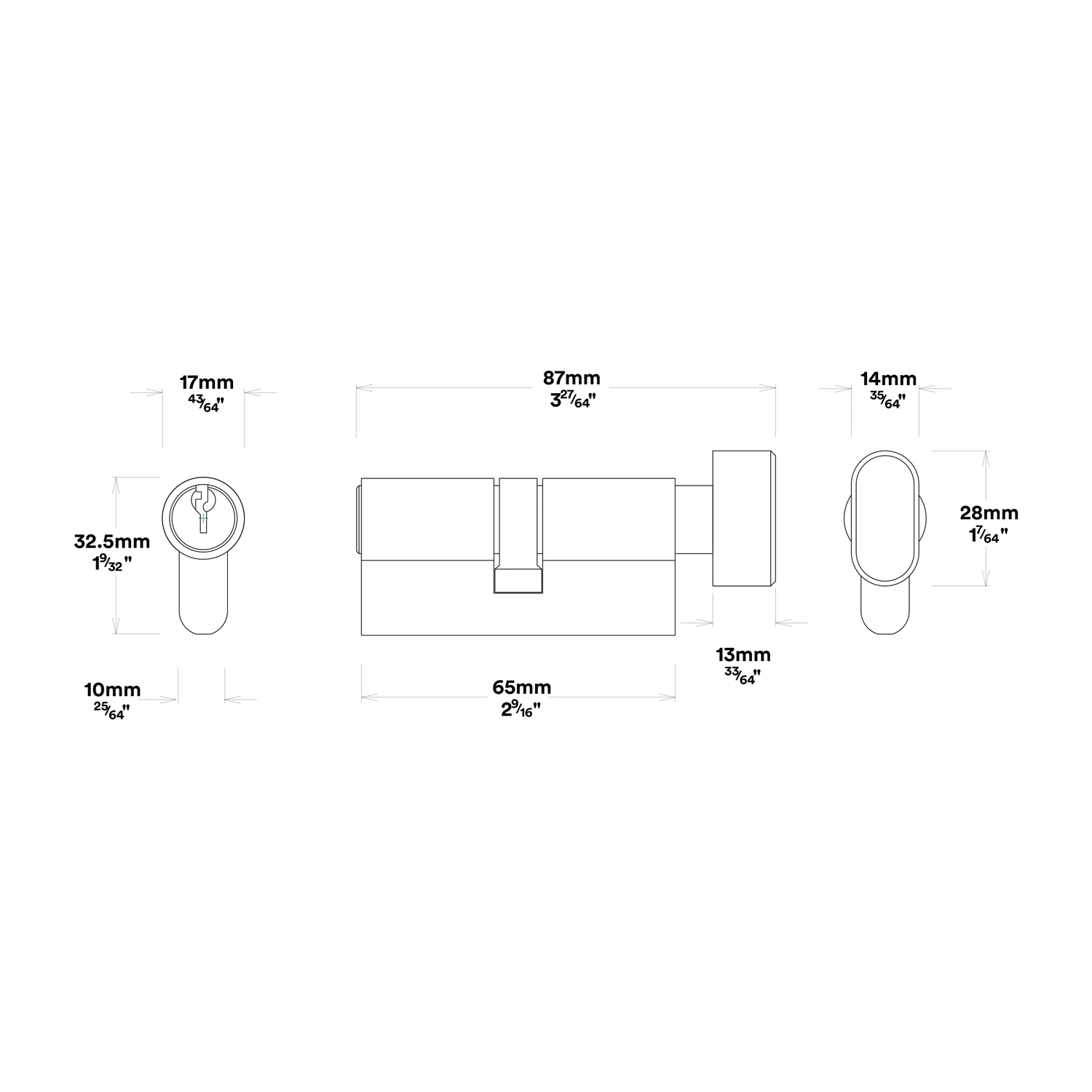

• 1 x Euro Cylinder 5 Pin Key / Thumb
• 2 x Keys
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 18 x Screws
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The smooth rounded form of the Cambridge references the Victorian era, whilst its simplicity still provides a high level of versatility in application
• The Cambridge is perfectly suited to a concealed fix rose or a variety of backplates
• For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms

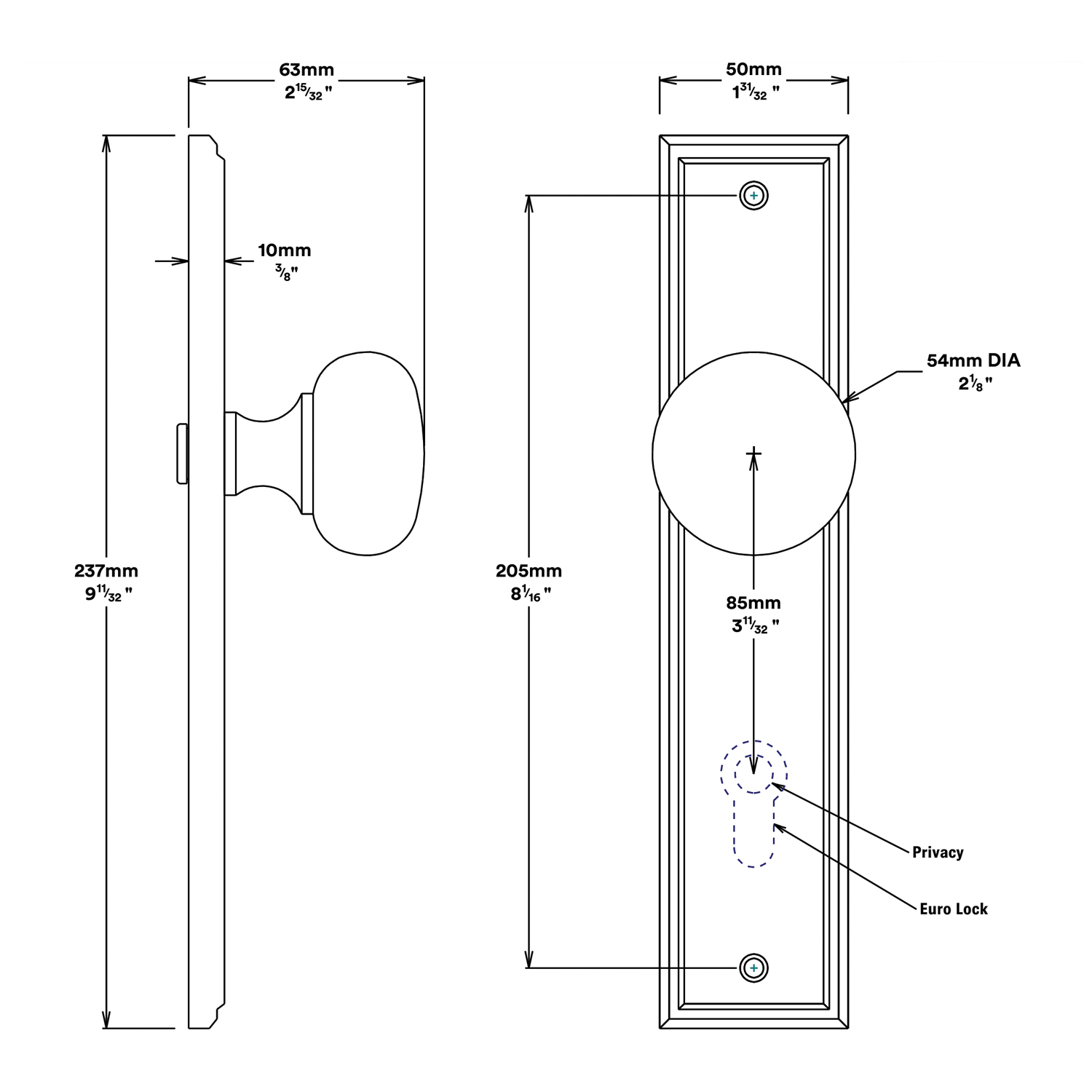

Specifications:

• Backset: 60mm
• Height: 237mm
• Width: 50mm
• Length: 54mm
• Projection: 64mm
• Centre to Centre: 85mm
• Function: Key / Thumb
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Nickel
  • Signature Brass

Notes:

• Knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
