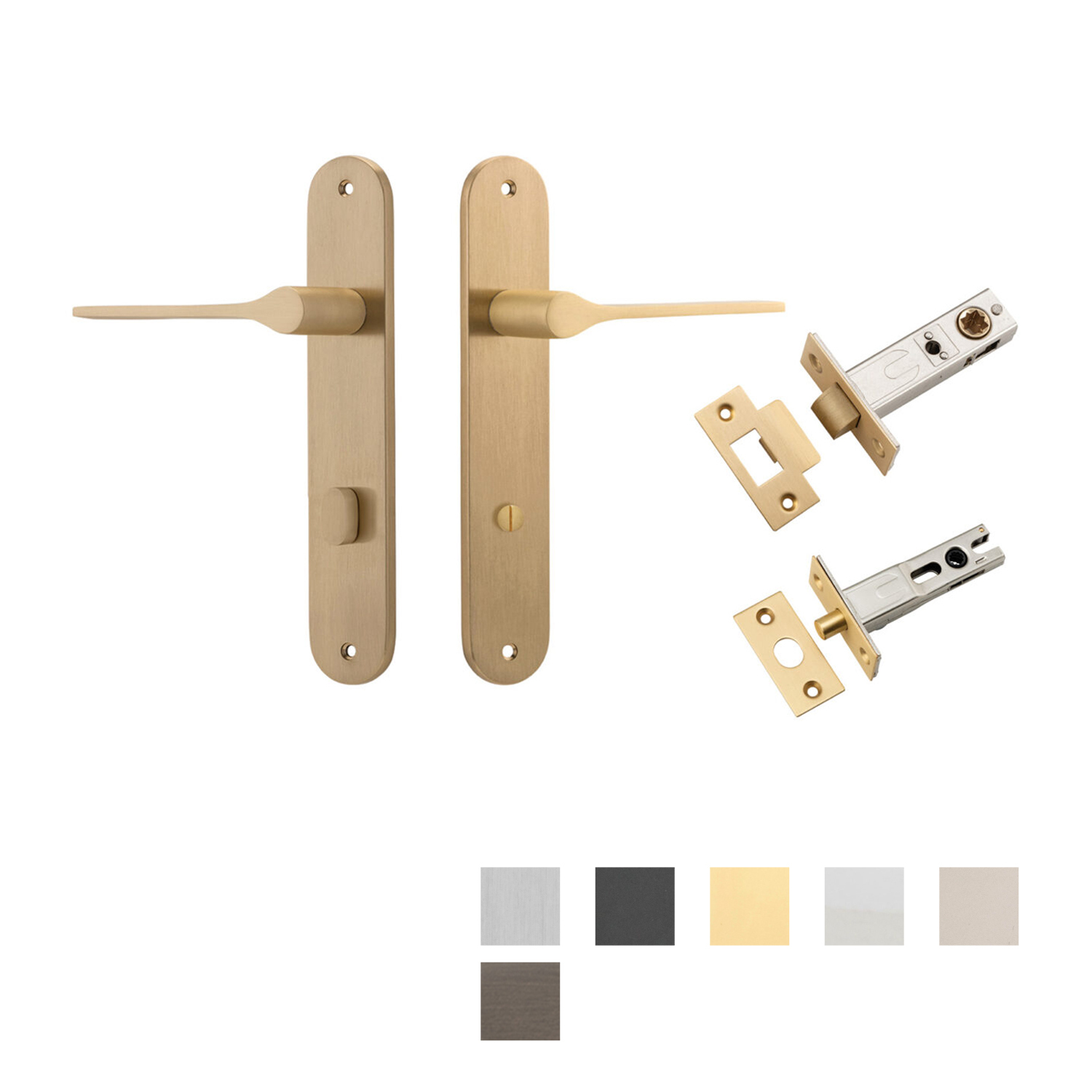

Iver Como Door Lever Handle on Oval Backplate Privacy Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 2 x Como Levers on Oval Backplate

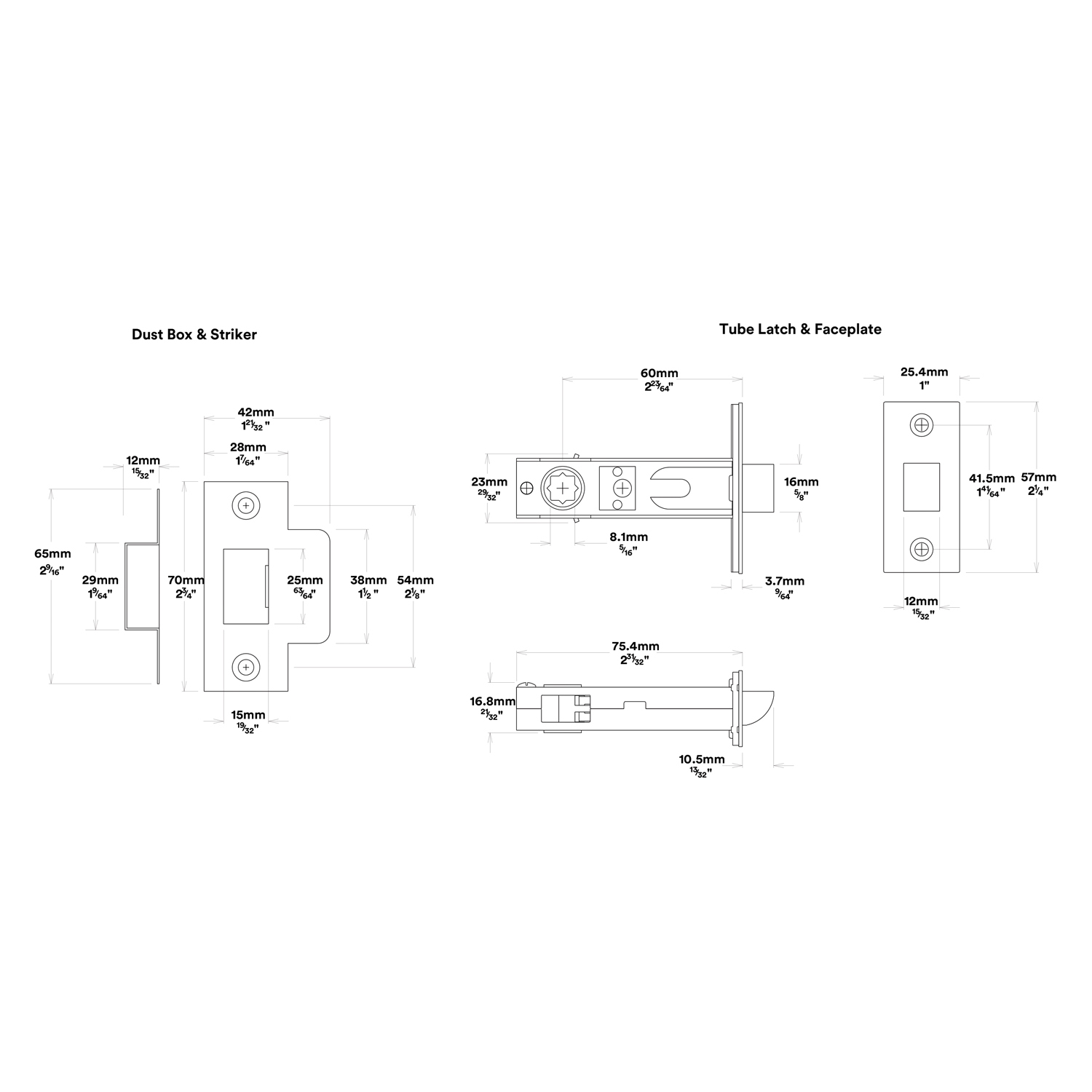

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

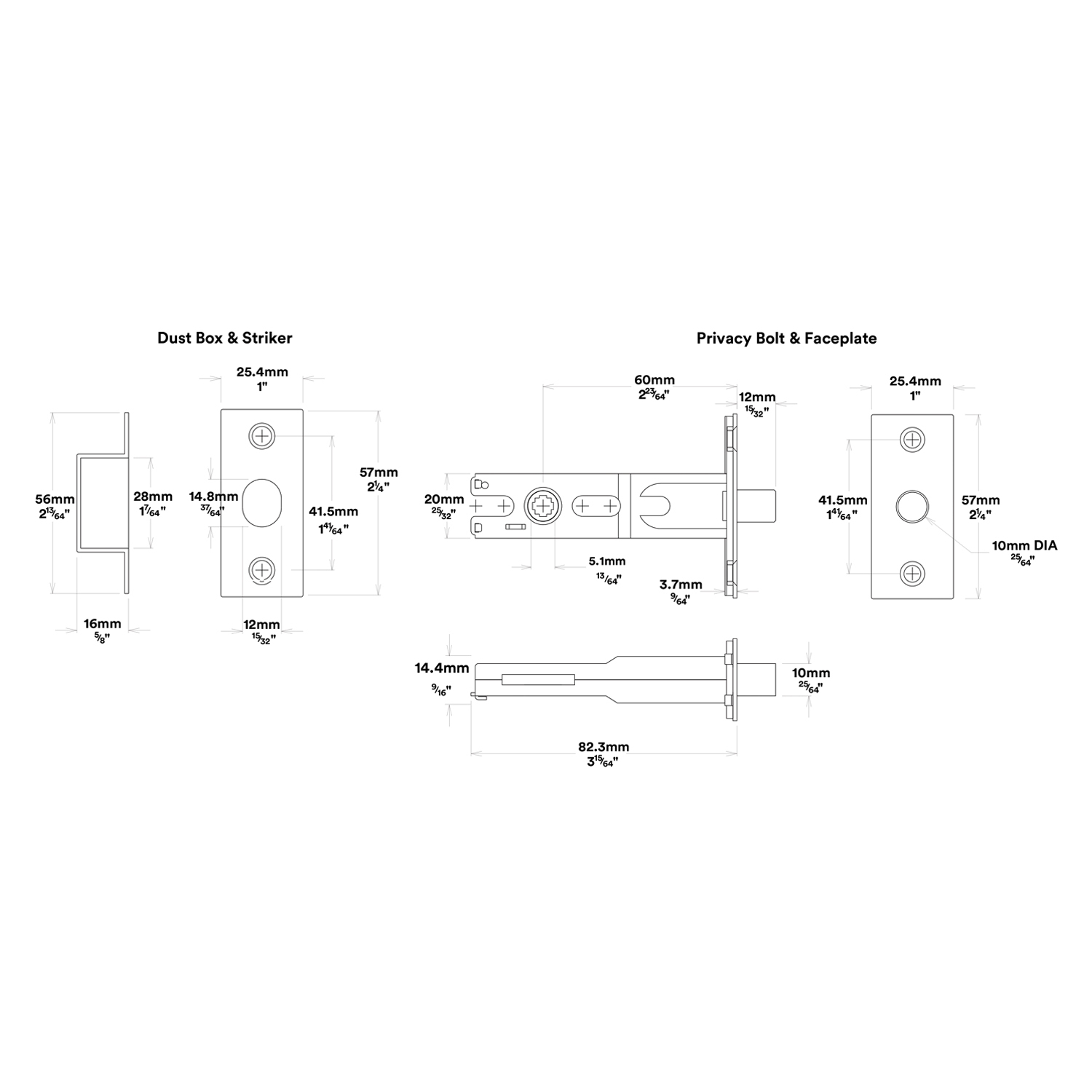

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles

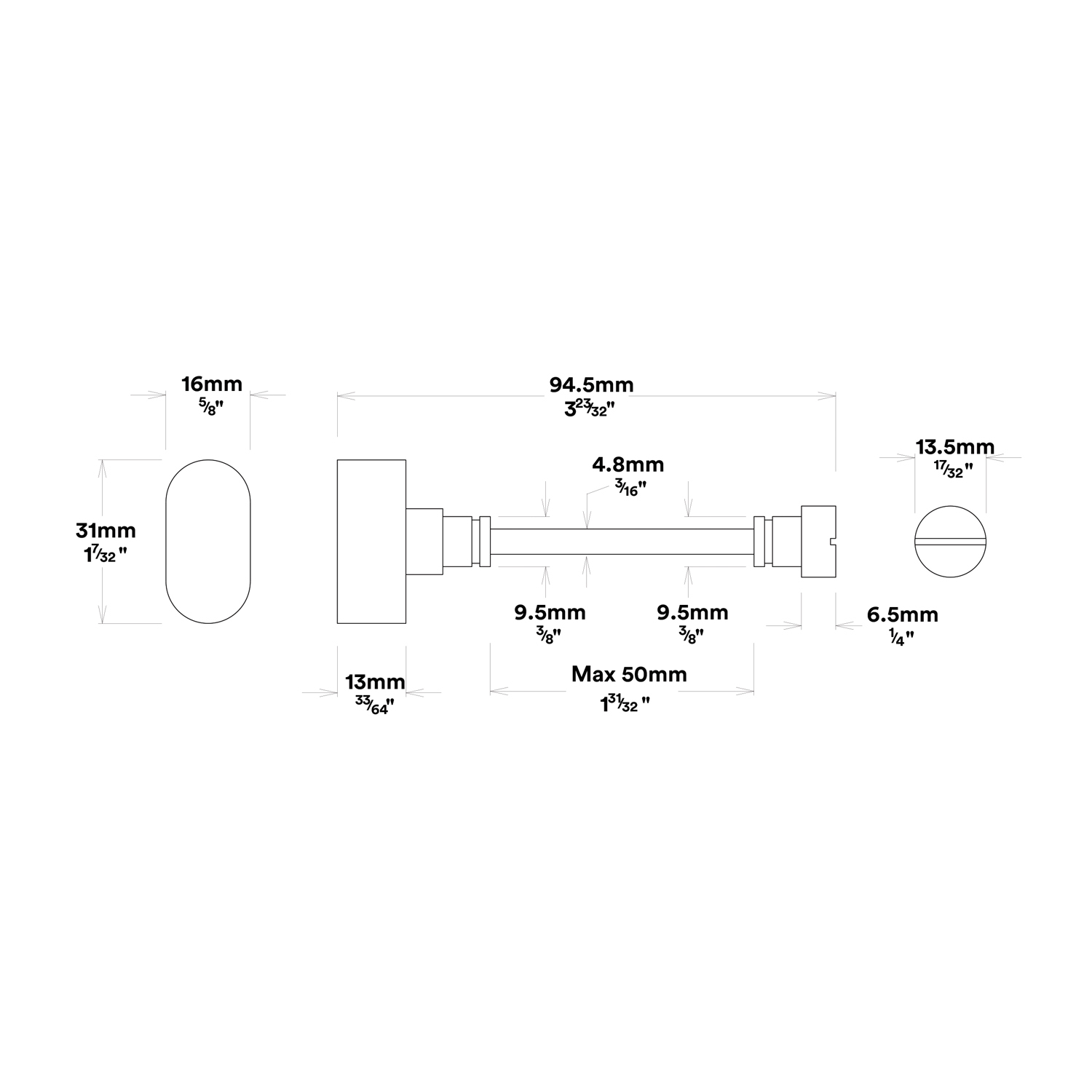

• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Inspired by the elegant designs of mid-century Italian architecture, the Como lever offers minimalist sophistication
• A tapered front profile is contrasted by a broad top surface that is both functional and tactile
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

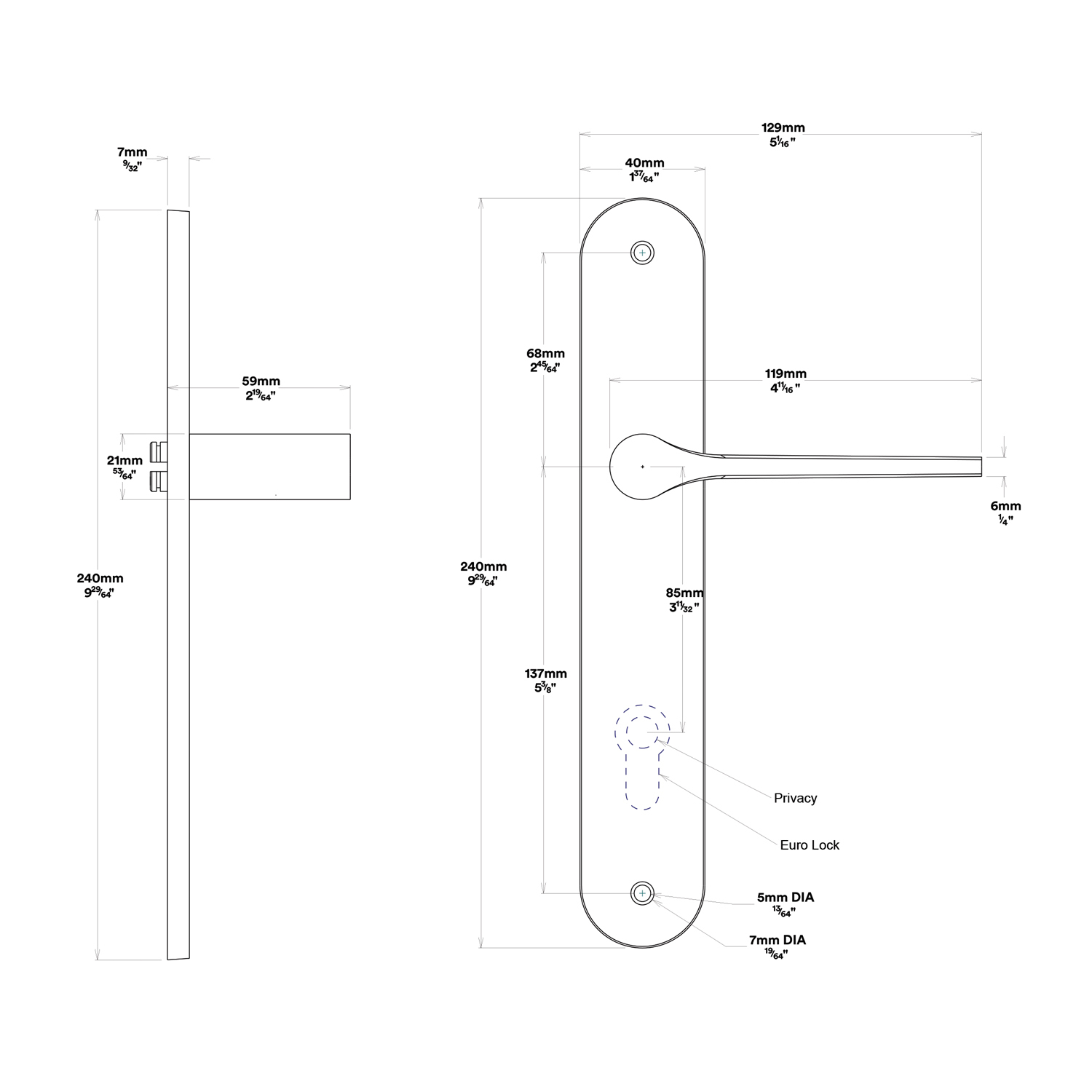

Specifications:

• Height: 240mm
• Width: 40mm
• Length: 119mm
• Projection: 59mm
• Centre to Centre: 205mm
• Function: Privacy Kit
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
