Iver Helsinki Door Lever Handle on Stepped Backplate Passage Kit

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

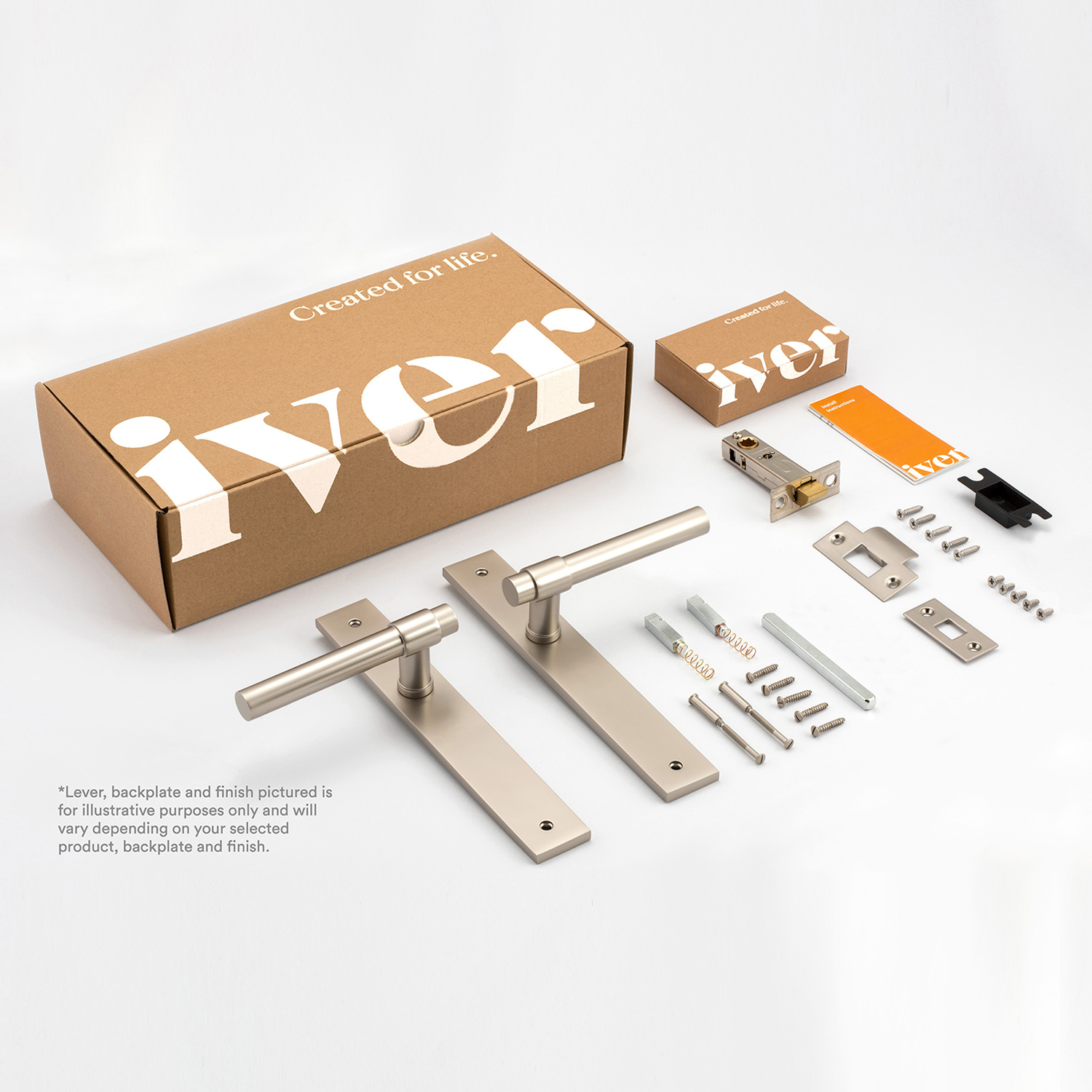

Includes:

• 2 x Levers on Backplates

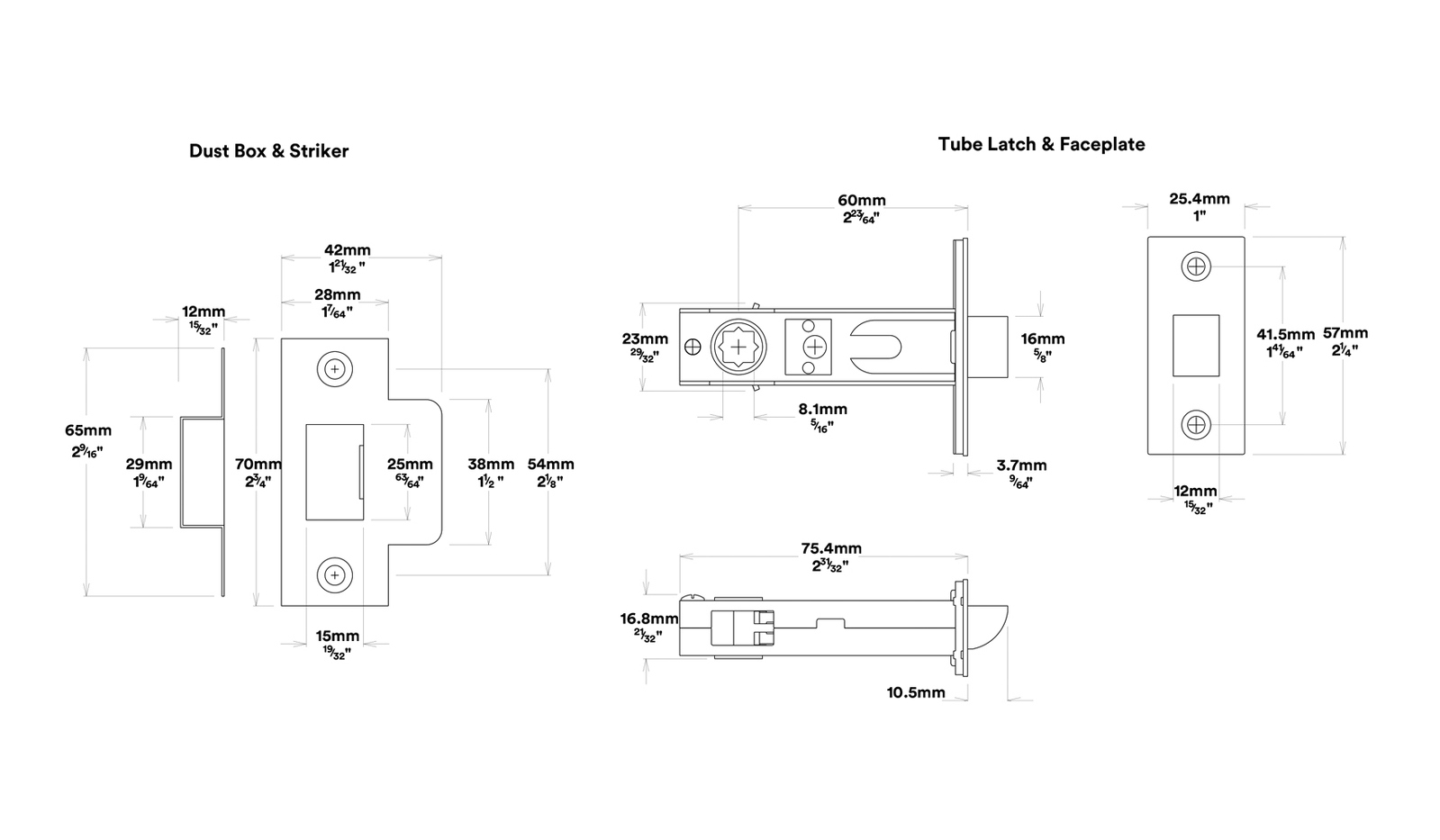

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 15 x Screws
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Helsinki takes its cues from industrial design, celebrating the simplicity of clean lines with a design accent at the join with minimalistic tubular lever
• For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries

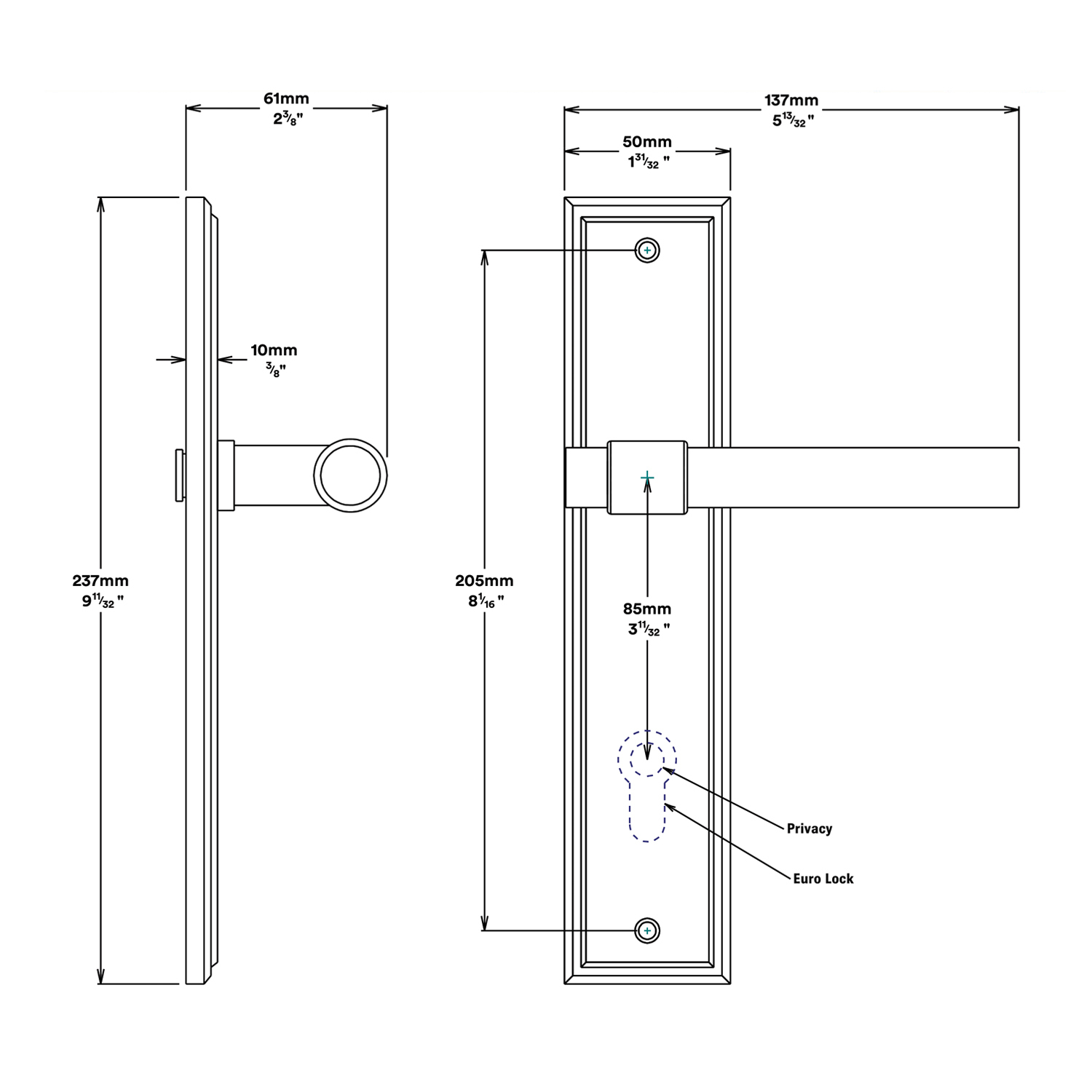

Specifications:

• Backset: 60mm
• Height: 237mm
• Width: 50mm
• Length: 137mm
• Projection: 61mm
• Centre to Centre: 205mm
• Function: Passage

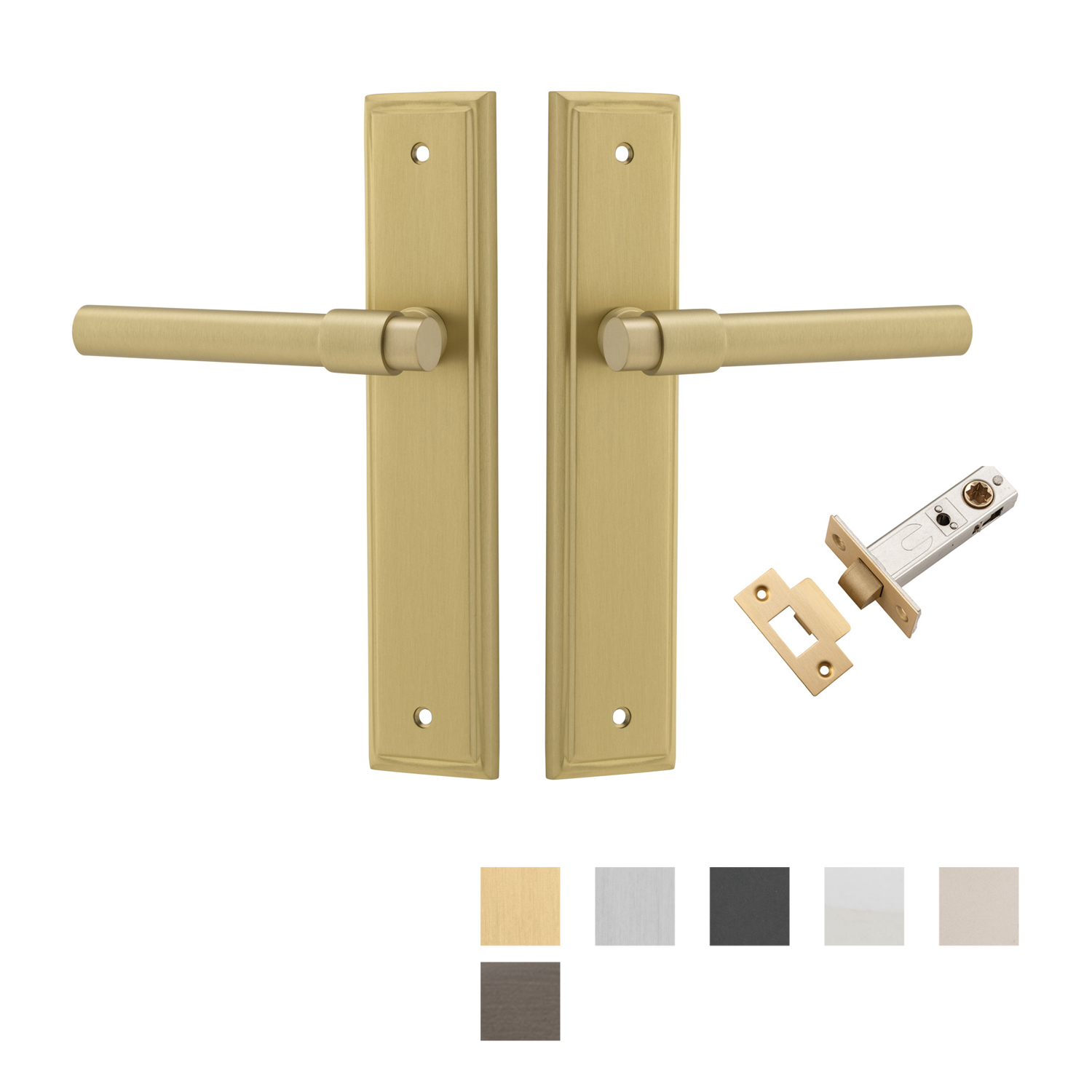

• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Brushed Gold PVD
  • Matt Black
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
