Iver Osaka Door Lever Handle on Chamfered Backplate Privacy Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

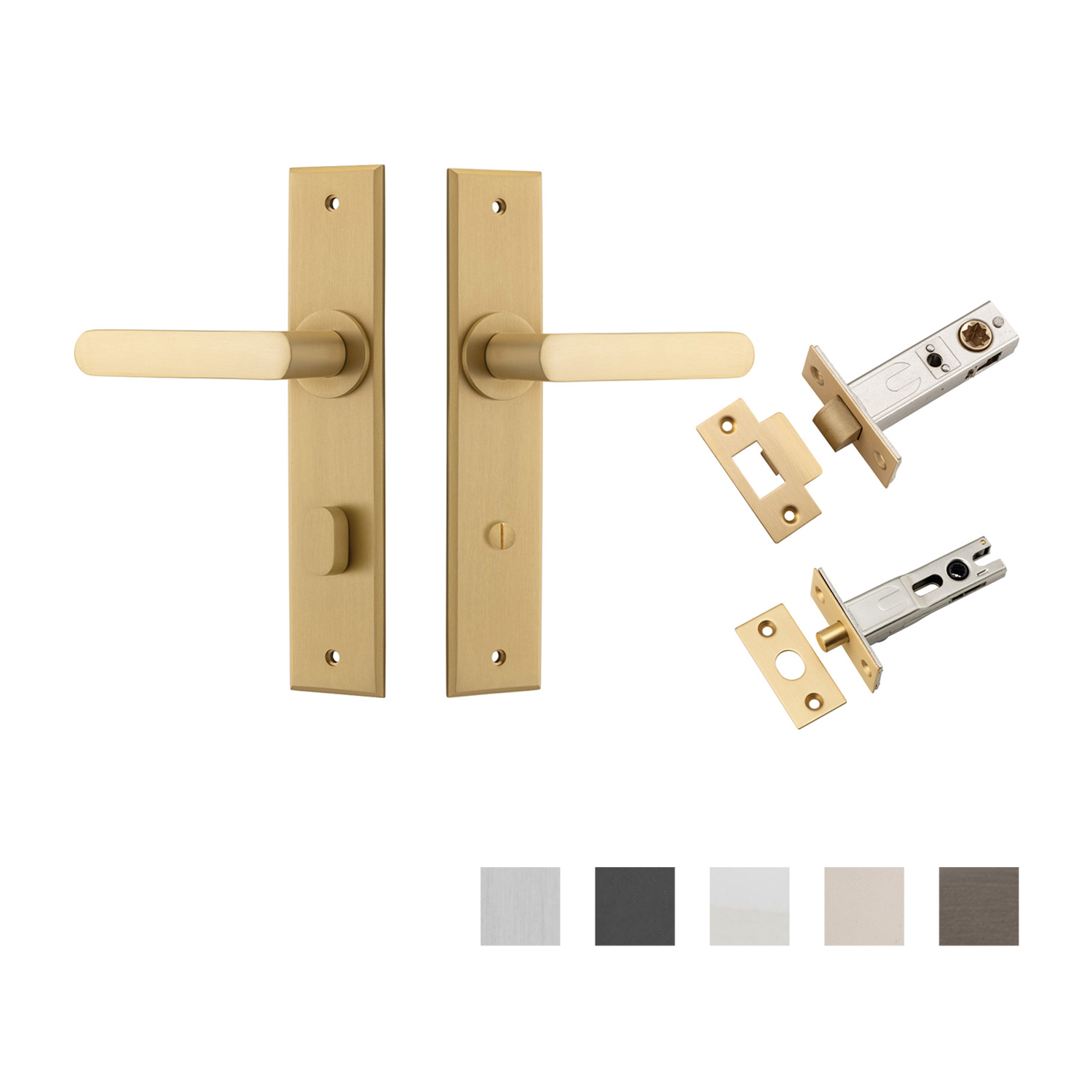

Includes:

• 2 x Osaka Levers on Chamfered Backplate

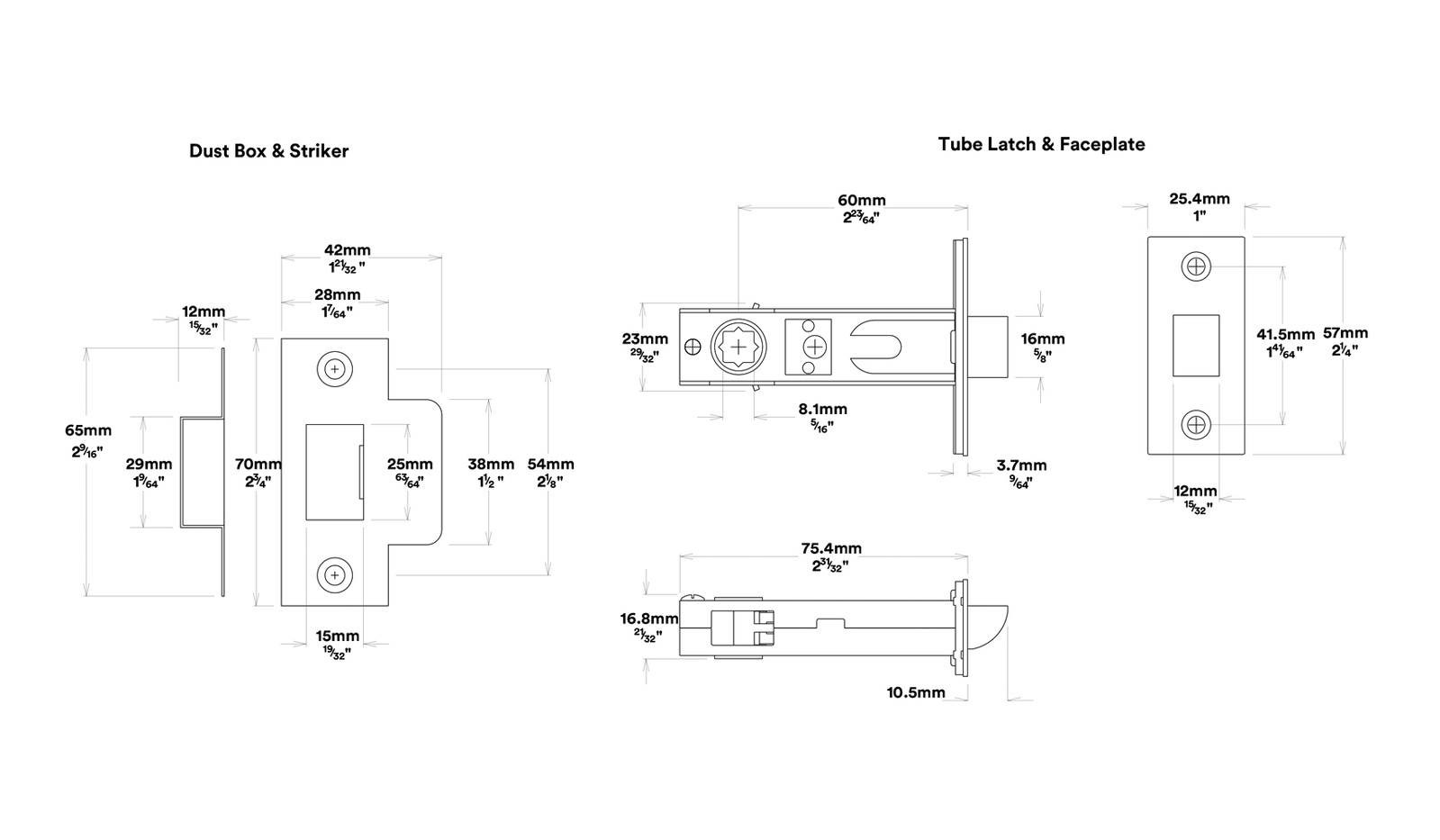

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

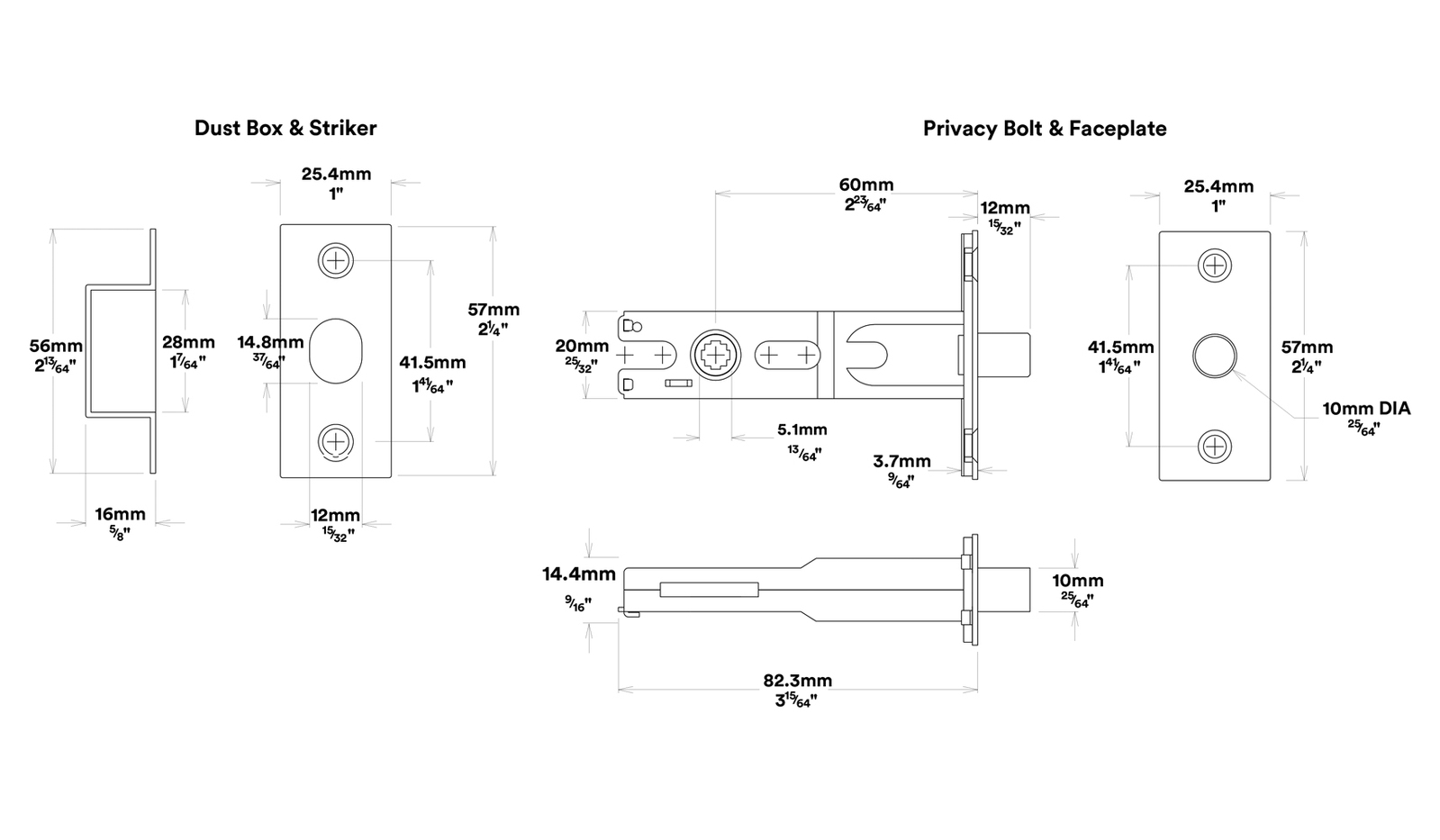

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts

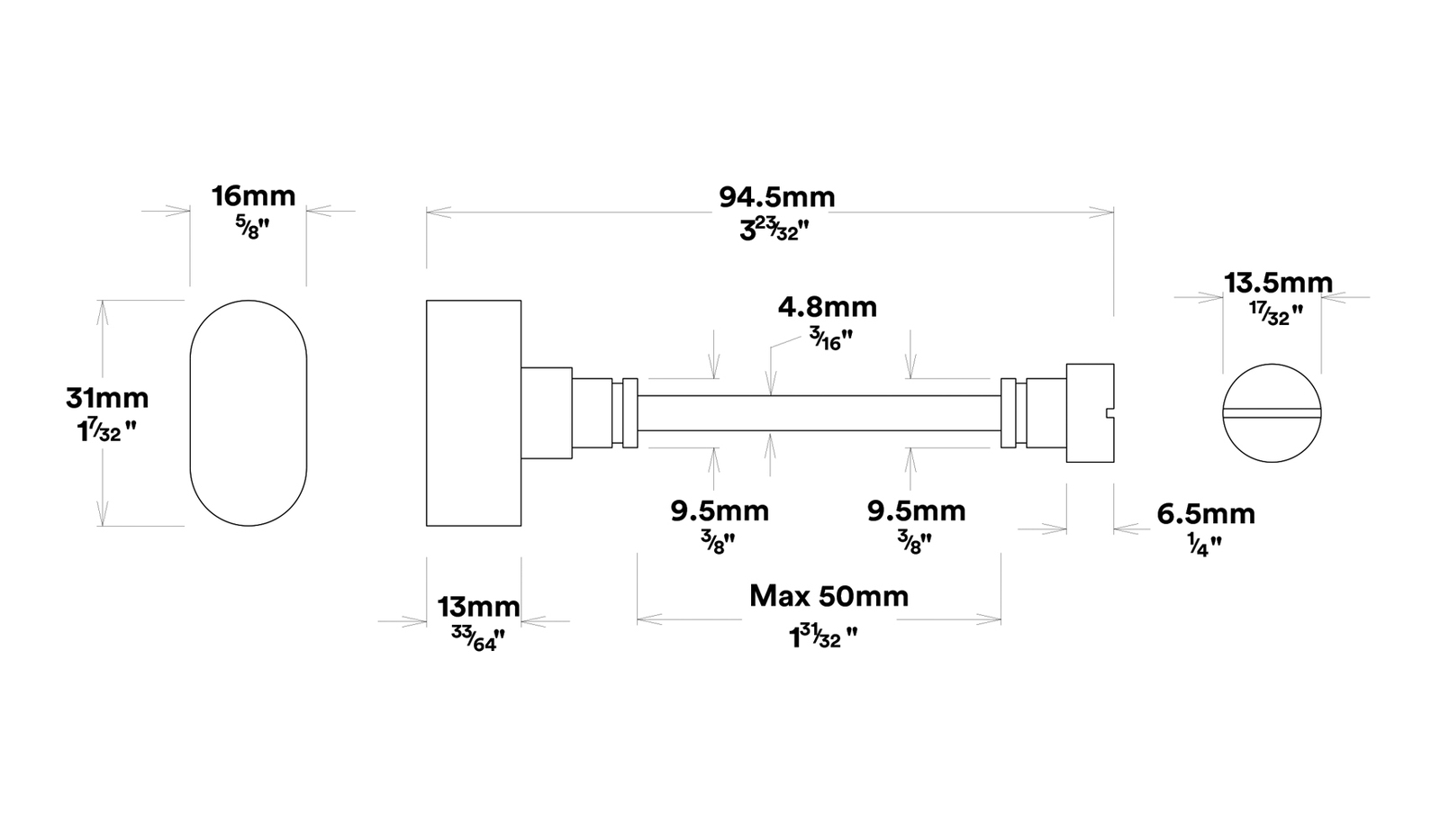

• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

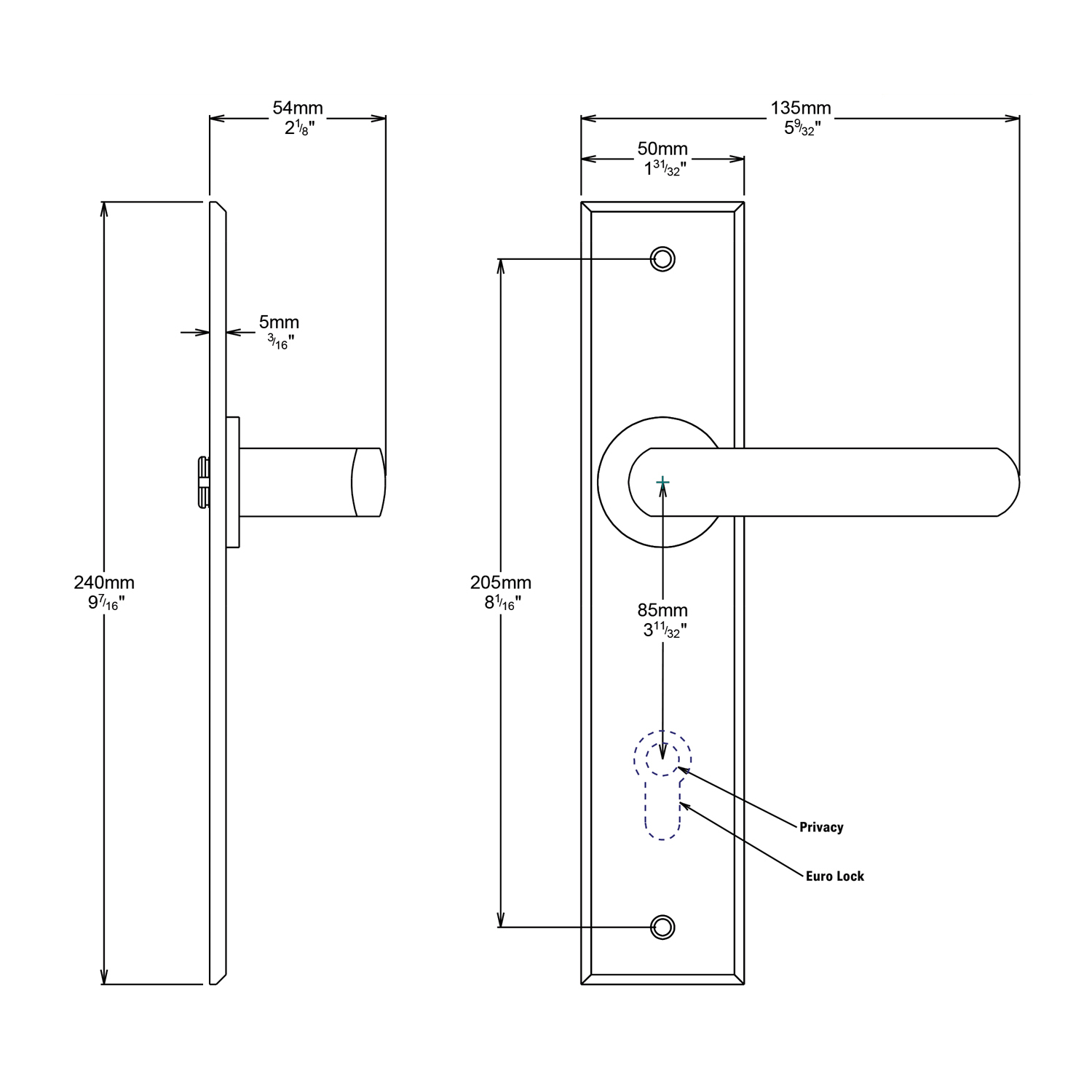

Specifications:

• Height: 240mm
• Width: 50mm
• Length: 120mm
• Projection: 54mm
• Centre to Centre: 205mm
• Function: Privacy
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
