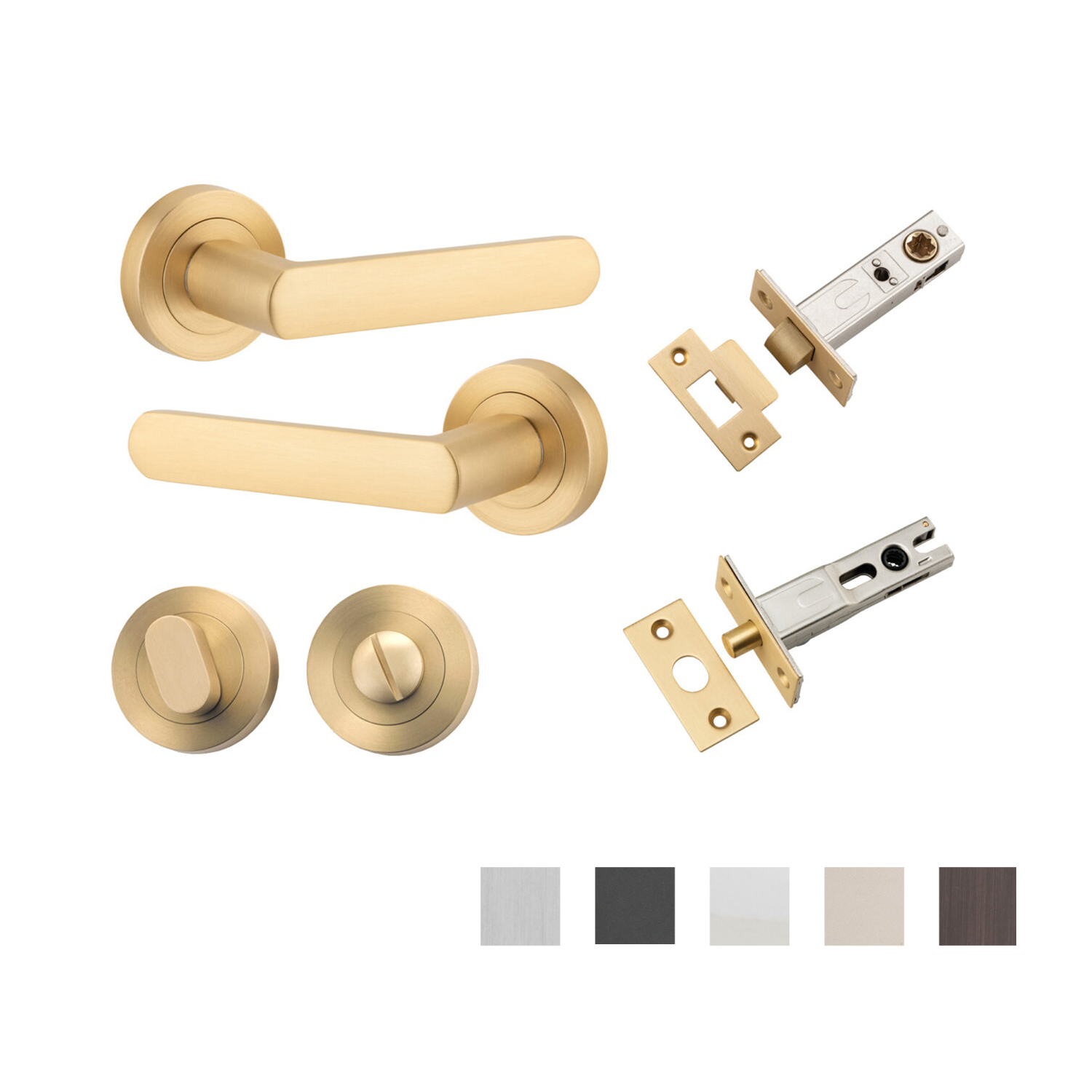

Iver Osaka Door Lever Handle on Round Rose

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

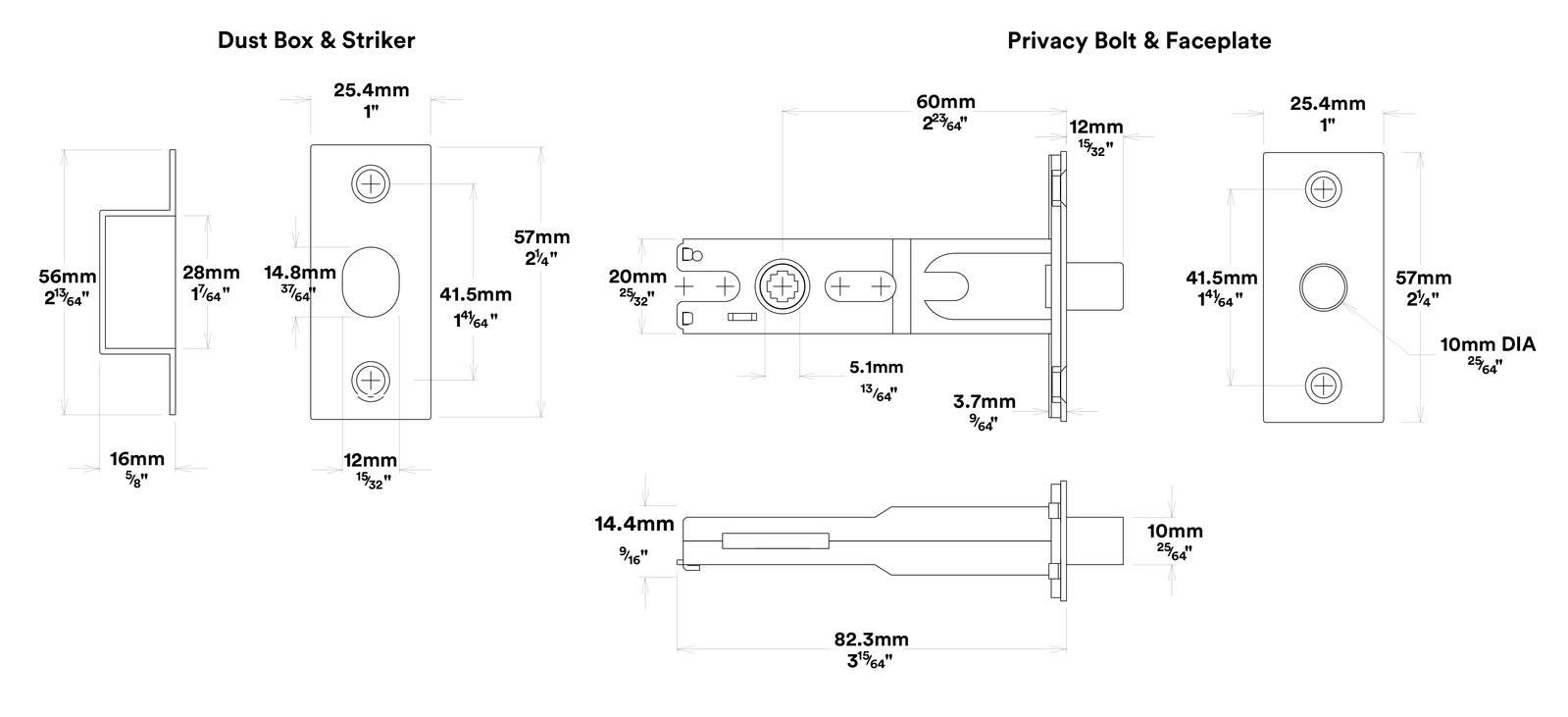

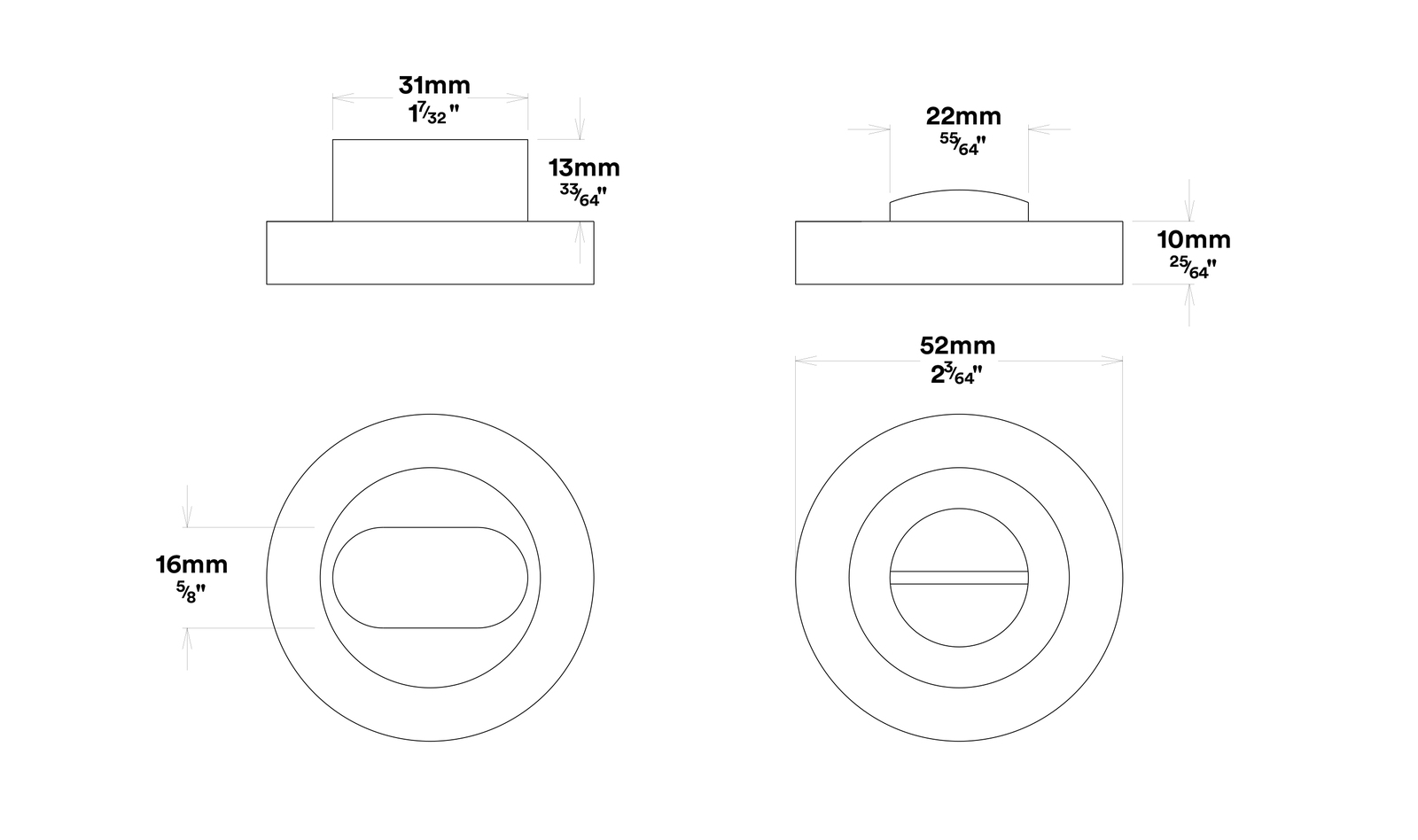

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

  • 2 x Levers on Round Rose

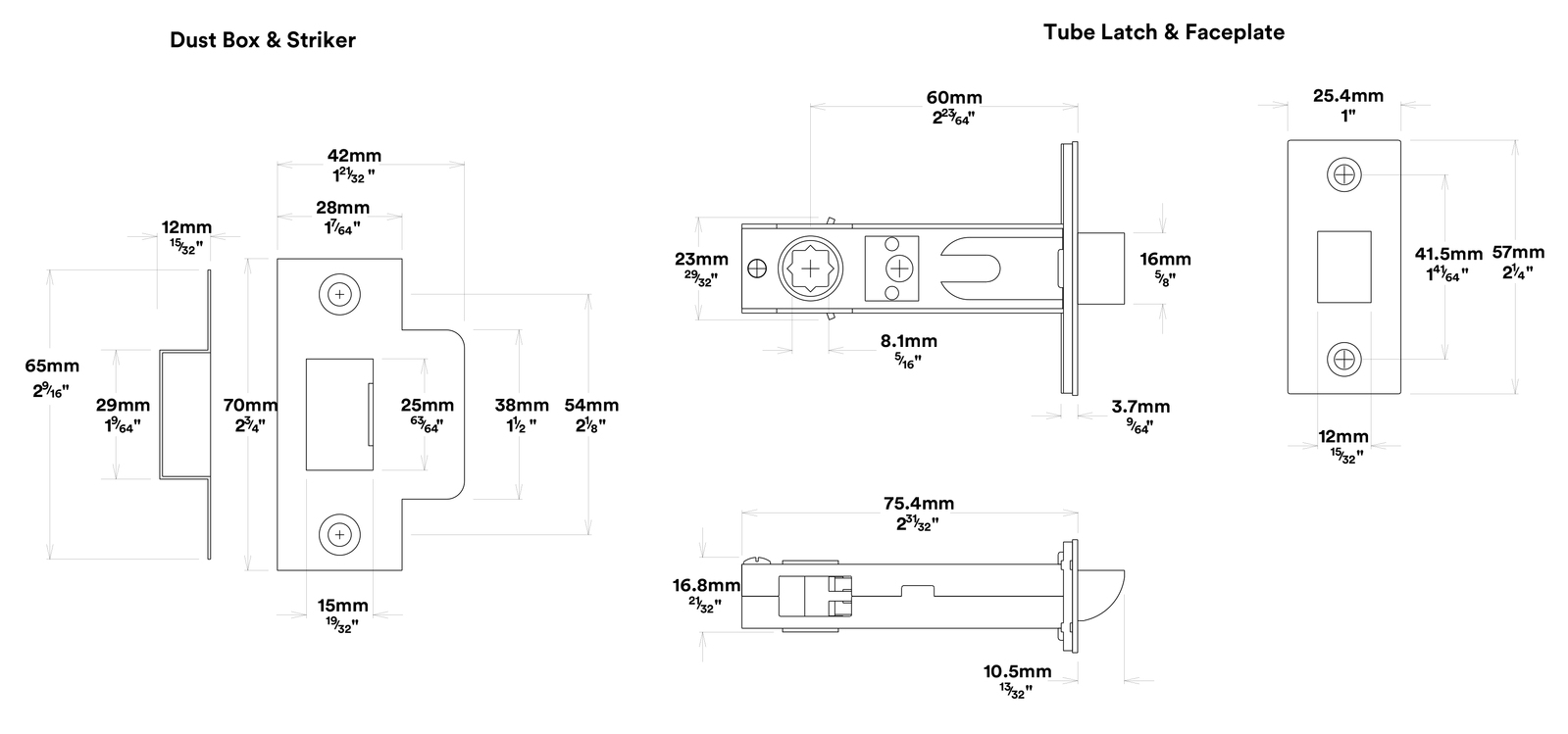

  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 18 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 4 x Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

Features:

  • Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface
  • For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

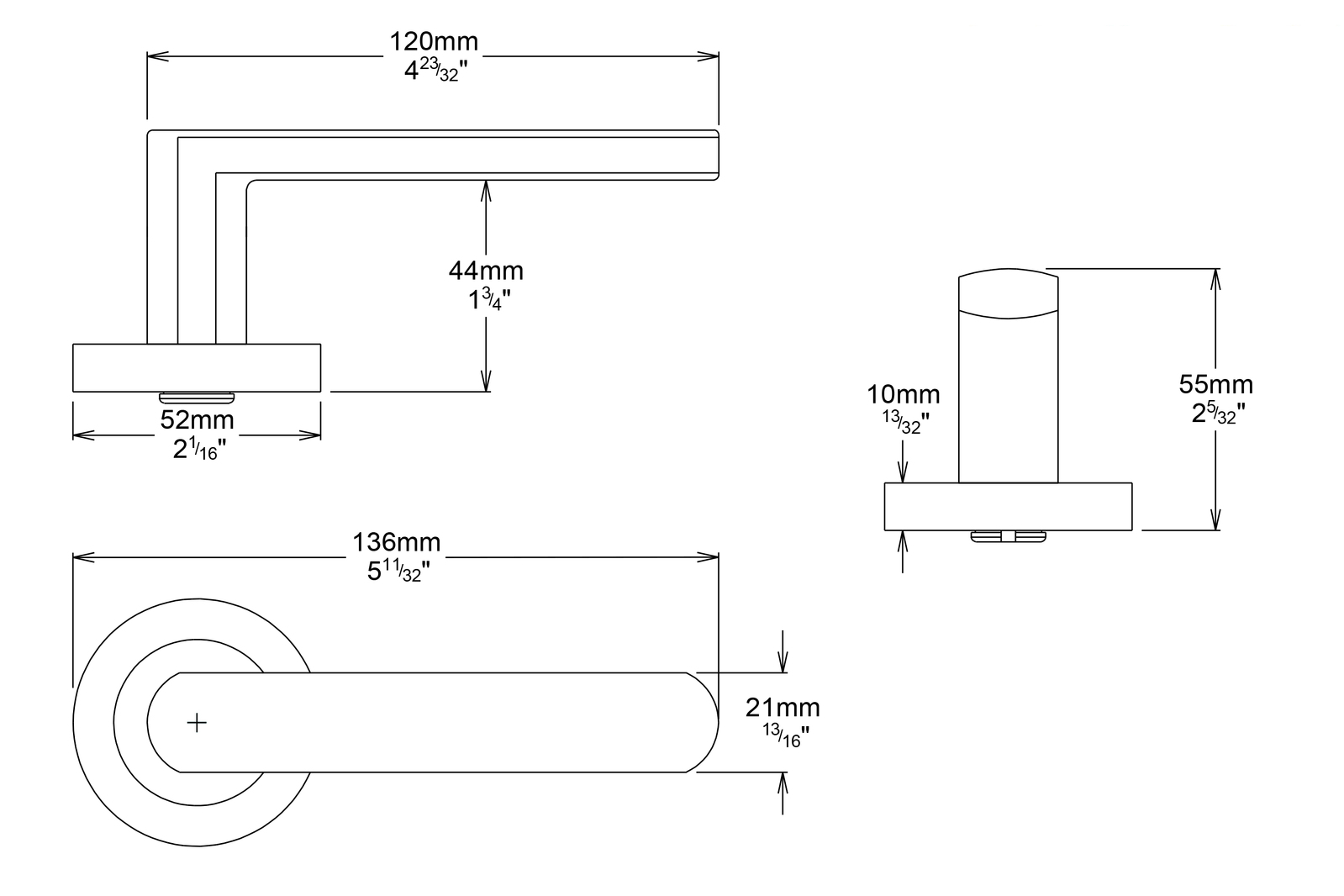

Specifications:

  • Backset: 60mm
  • Backplate Diameter: 52mm
  • Height: 52mm
  • Width: 52mm
  • Length: 120mm
  • Projection: 55mm
  • Function: Privacy
  • Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Matt Black
    • Polished Chrome
    • Satin Nickel
    • Signature Brass

Notes:

  • Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
SKU TRA20771KPRIV60_
Brand Iver
