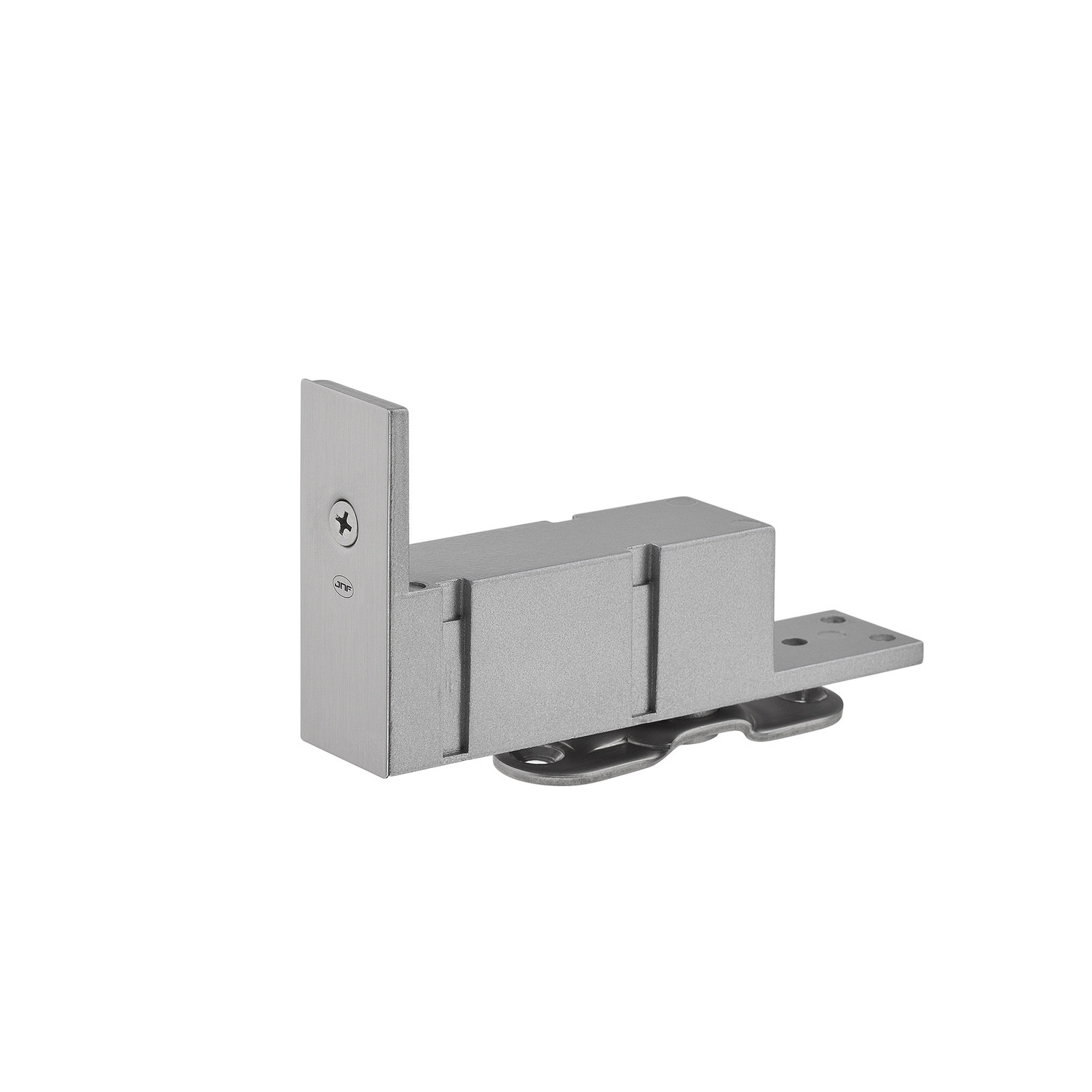

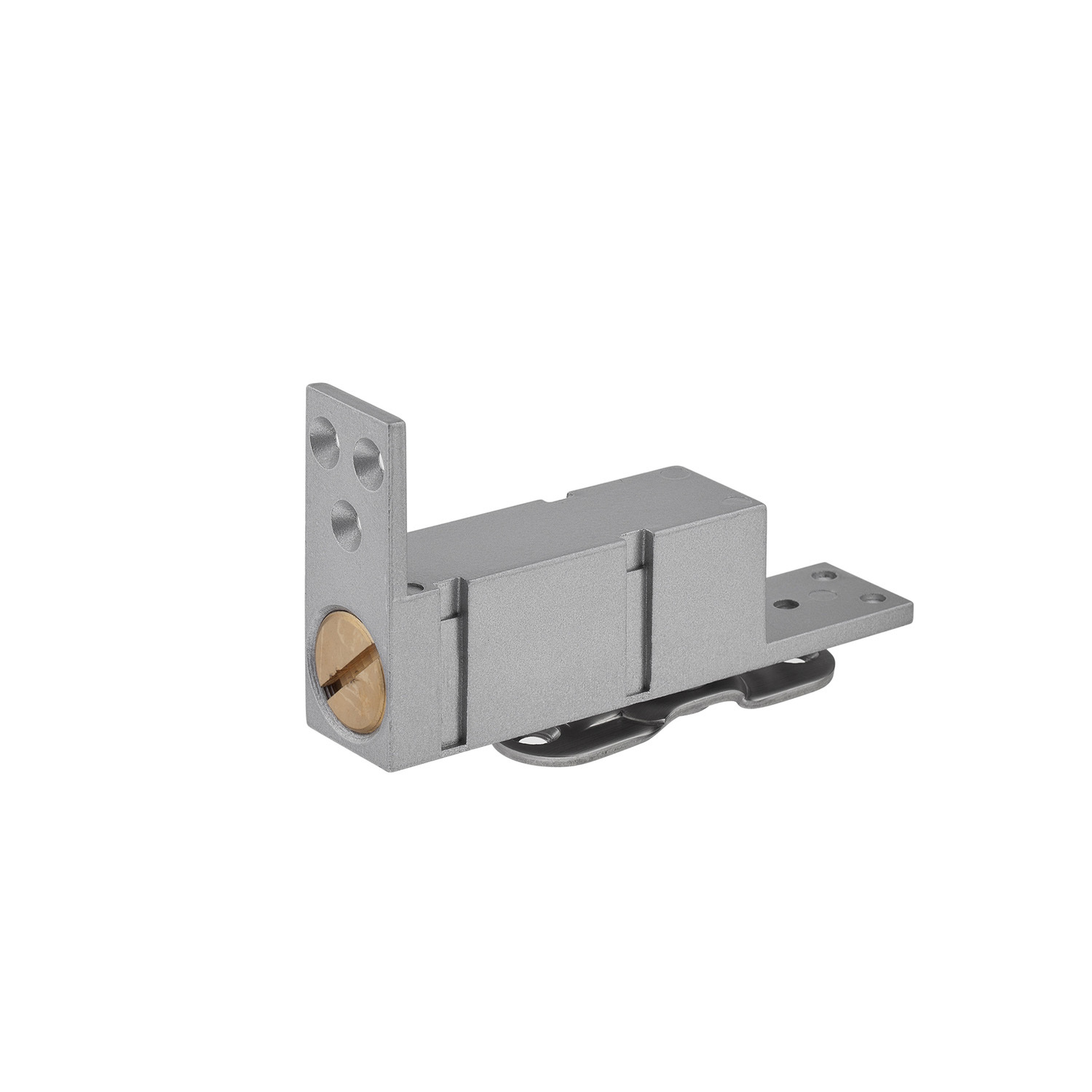

JNF Bottom Pivot with Spring System
IN.05.199

Pivot Set are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

  • Double action door for rebated doors with 180 degrees opening each side and 90 degrees hold open
  • Adjustable spring closing force
  • Max. pulling force 0.5Kg
  • Only for indoor use
  • Supplied With Fixings

Specifications:

  • Material: Aluminum
  • Max. Door Width: 900mm
  • Max. Weight: up to 45Kg.

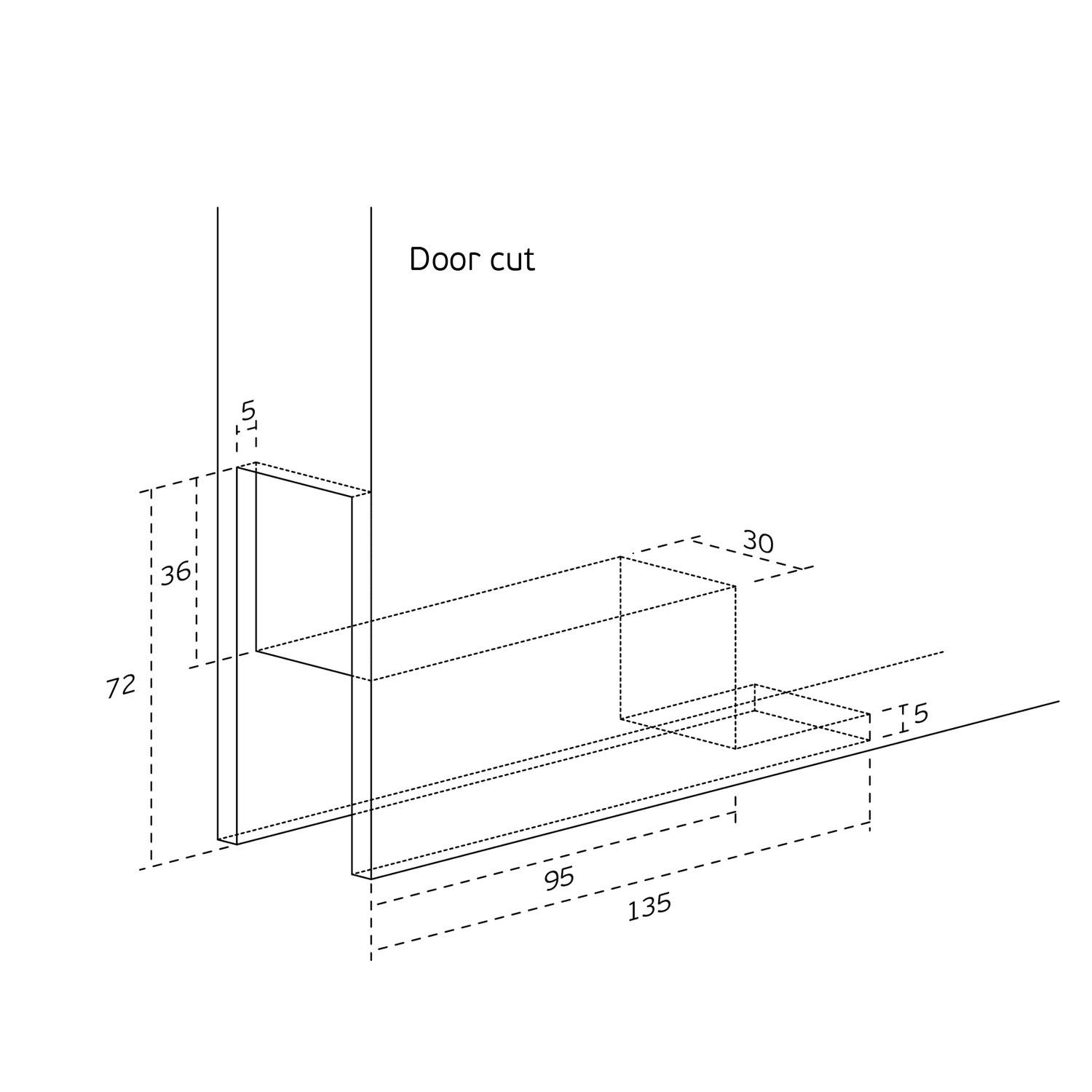

  • Door Thickness: 35mm to 45mm

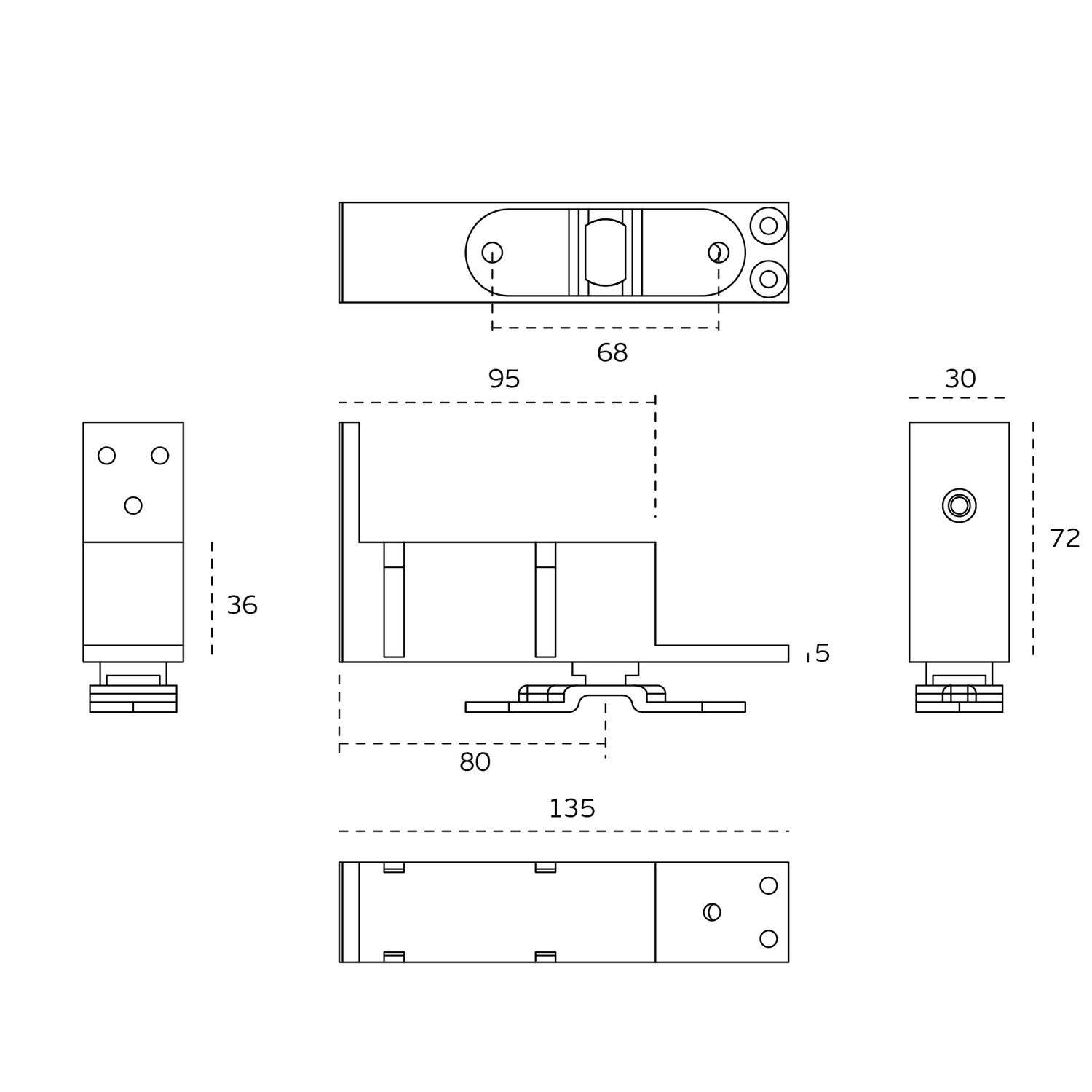

  • Length: 135mm
  • Height: 72mm
  • Finish: Stainless Steel
SKU JNFIN05199
Barcode # 5602686026678
Brand JNF
