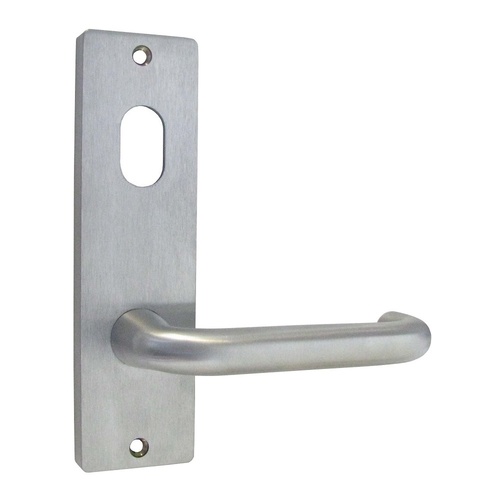

Kaba 600 Series Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
601V-25SCP

Square End Plate Furniture is used for most commercial standard backset mortice locks. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Furniture Function - external plates with lever designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

  • For use with contemporary Australian manufactured mortice locks and latches
  • Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
  • Designed to fit back to back with either concealed or visible fixing to outside plate
  • Tiebolt M5 fixing screws have a cross-recessed head
  • Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

  • Plate Size:
    • Height: 166mm
    • Width: 46mm
    • Depth: 11.5mm
  • Fixing Centres: 149mm
  • Door Thickness: 32mm - 50mm
  • Finish: Satin Chrome Plate
SKU KABA601V25SCP
Barcode # 2000000014036
Brand Kaba
