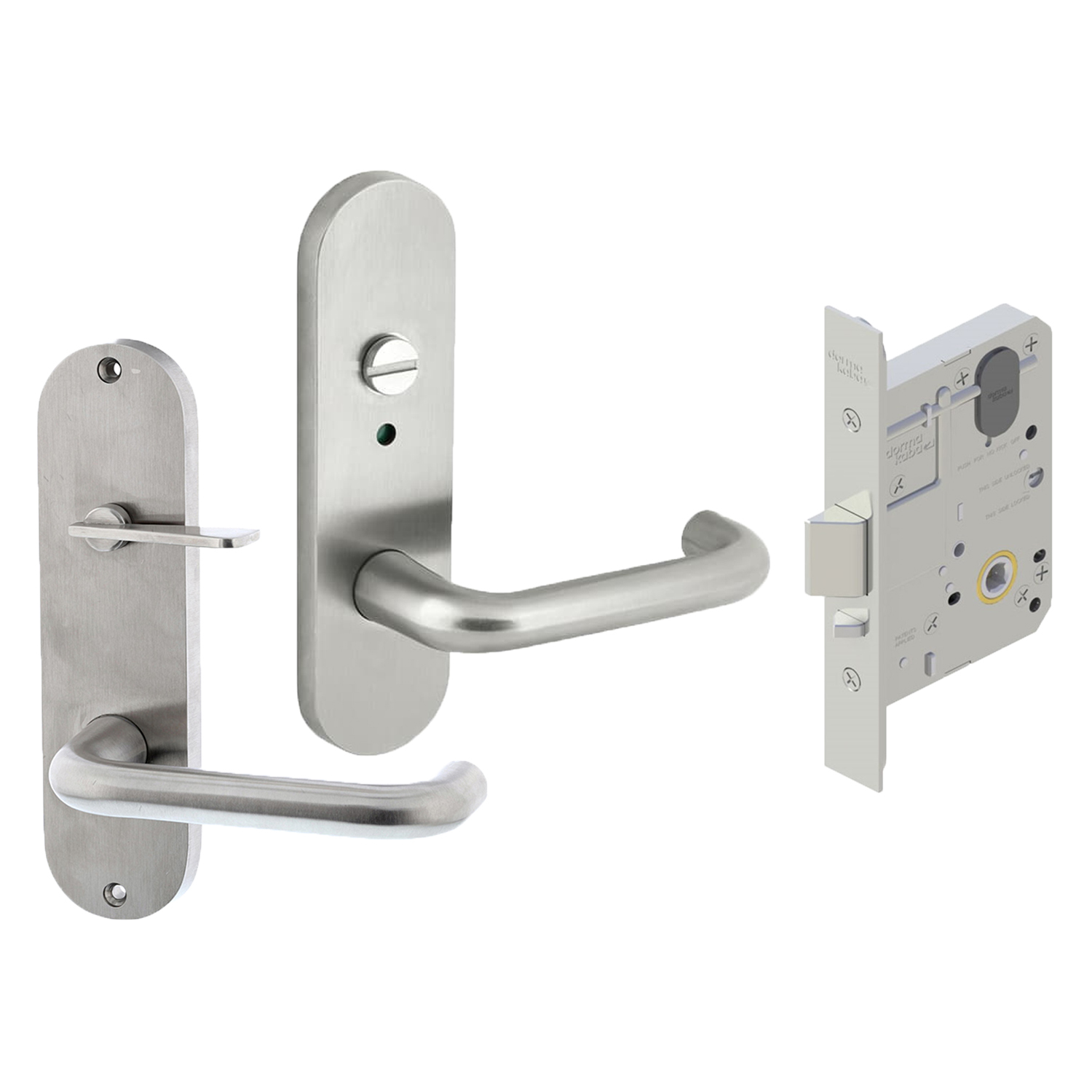

Dormakaba Door Pack MS2 Lock w/ Round Plate Turn Indicator and Lever Left Hand

Ambulant Door Lever Function - designed to be user-friendly and accessible for individuals with disabilities, particularly those who have limited hand strength, dexterity, or mobility.

Includes:

• 1 x Dormakaba 6707/30LG Internal Plate Disabled Turn Visible Fix and Lever Satin Stainless Steel (DF67073001L)
• 1 x Dormakaba Lever External Round End Plate w/ Emergency Button Left Hand (6749/30GL)
• 1 x Dormakaba MS2 Mortice Door Lock Commercial Grade 60mm Backset Satin Stainless Steel (MS2602SSS)

Dormakaba 6707/30LG Internal Plate Disabled Turn Visible Fix and Lever
DF67073001L

Features:

• Rectangular interior round end plate
• Bolt-through fixings compatible with Dorma ST9600 mortice locks
• Heavy duty spring mechanism
• Nylon bush prevents metal on metal wear and gives smoother movement
• Turn & privacy snibs accept a star spindle

Specifications:

• Door Thickness: 32mm - 50mm
• Internal / External: Internal
• Plate Type: Round End
• Fire Rated: Yes
• Material: Stainless Steel
• Length: 165mm
• Width: 45mm
• Depth: 10mm
• Plate Has A Lever: Yes
• Finish: Satin Stainless Steel

Dormakaba Lever External Round End Plate w/ Emergency Button
6749/30GL

Features:

• Stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban series lever designs
• Standard screws in 5/32 thread to suit

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 165mm
• Width: 45mm
• Thickness: 10mm thick
• Fixing Centres: 149.25mm
• Handing: Left Hand
• Finish: Satin Stainless Steel

Dormakaba MS2602SSS Heavy Duty Mortice Lock
MS2602SSS

Features:

• MS2602 primary mortice lock
• Operated by key or handle outside or by turnsnib, key or handle inside
• 14 mm stainless steel reversible latch bolt
• Easily adapted to most functions
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Compatible with most electric strikes
• SCEC approved (SL3)
• Conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008
• Conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008

Specifications:

• Material: 304 Grade Stainless Steel
• Backset: 60mm
• Door Thickness: 32mm - 50mm
• Fire Rated: Yes
• Anti-Lockout: Yes
• Finish: Satin Stainless Steel
