Dormakaba ED22 Panic Exit Device Fire Rated

Panic Exit Device provide a fast and convenient means of escape in the case of an emergency.

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• Designed to provide emergency egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the door.
• Provides secure dead-latching function and offers external trim options for lever/knob or pull handle and is suitable for double or single, metal or timber doors.
• Horizontal fitting with single point locking
• Can be field sized to 645 mm minimum length
• Latch-bolt is dead-latching
• Field selectable handing

Specifications:

• Door Thickness: 35mm - 50mm

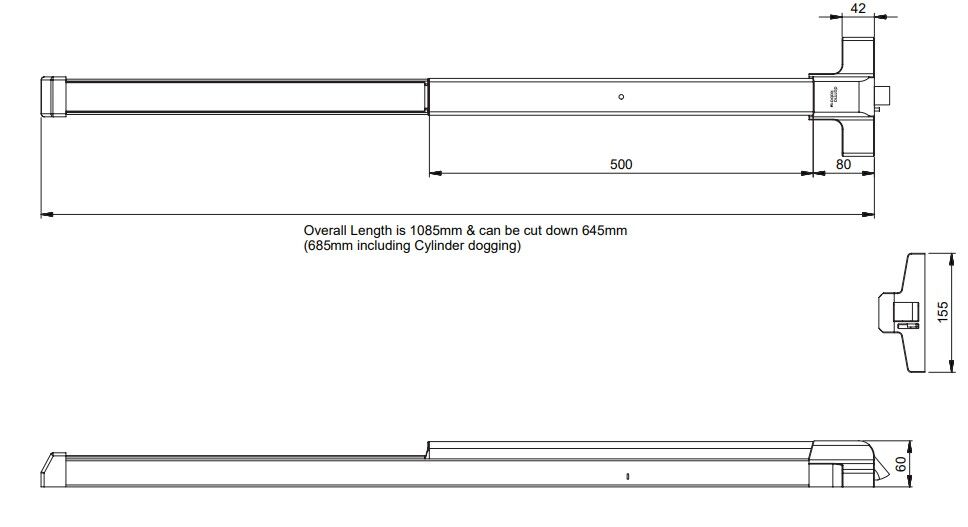

• Overall Length: 1085mm
• Minimum Length: 645mm
• Max Door Width: 1085mm
• Locking Mode: Locking - Horizontal
• Has Dogging: No
• Available Finish:
  • Satin Stainless Steel
  • Silver

Fire Rating:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Note: Fire doors cannot include dogging due to fire regulations.
