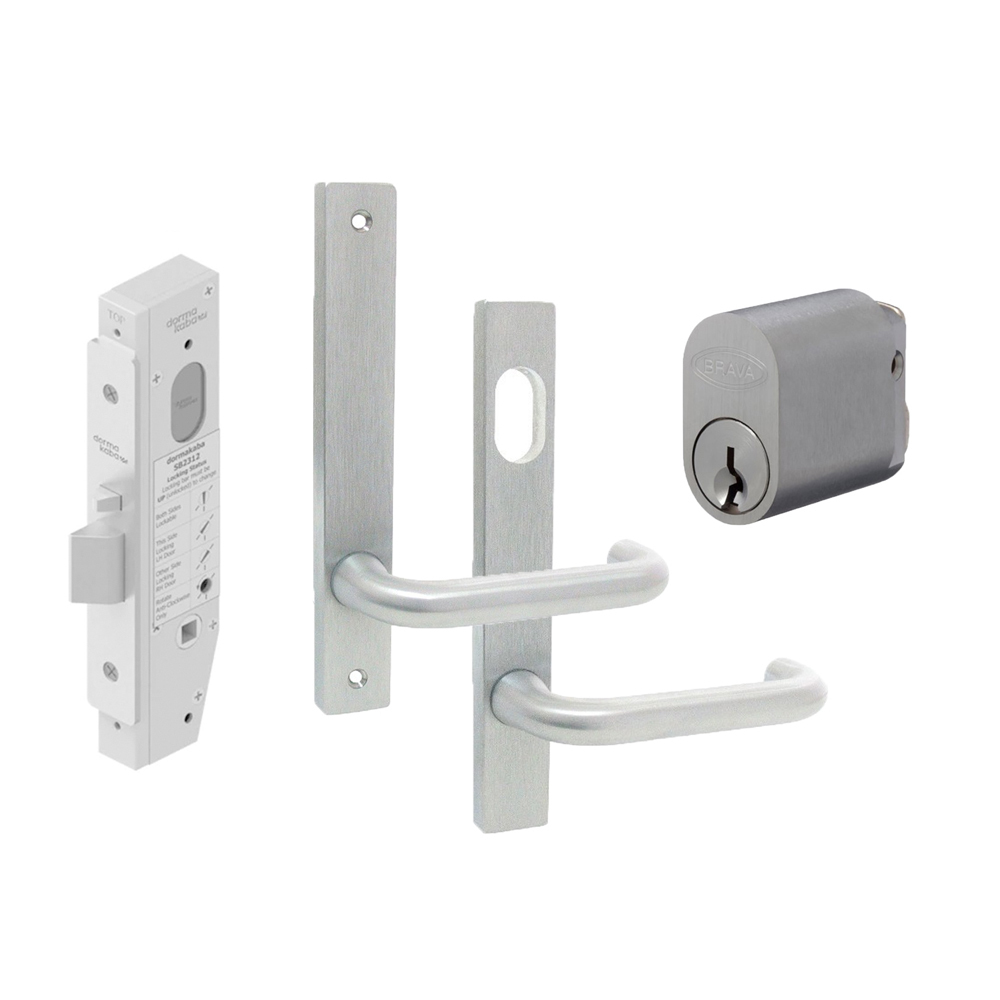

Dormakaba Exit Door Pack SB2312 Narrow Style Mortice Lock with Oval Cylinder and Lever

Mortice Lock commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Includes:

• 1 x Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn (SB2312SSS)
• 1 x Dormakaba 6410 Narrow Style Exterior Square End Plate with Cylinder Hole (DF64100001)
• 1 x Dormakaba N600 Series Narrow Style Plate Furniture w/ 25 Lever (N602V-25SCP)
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

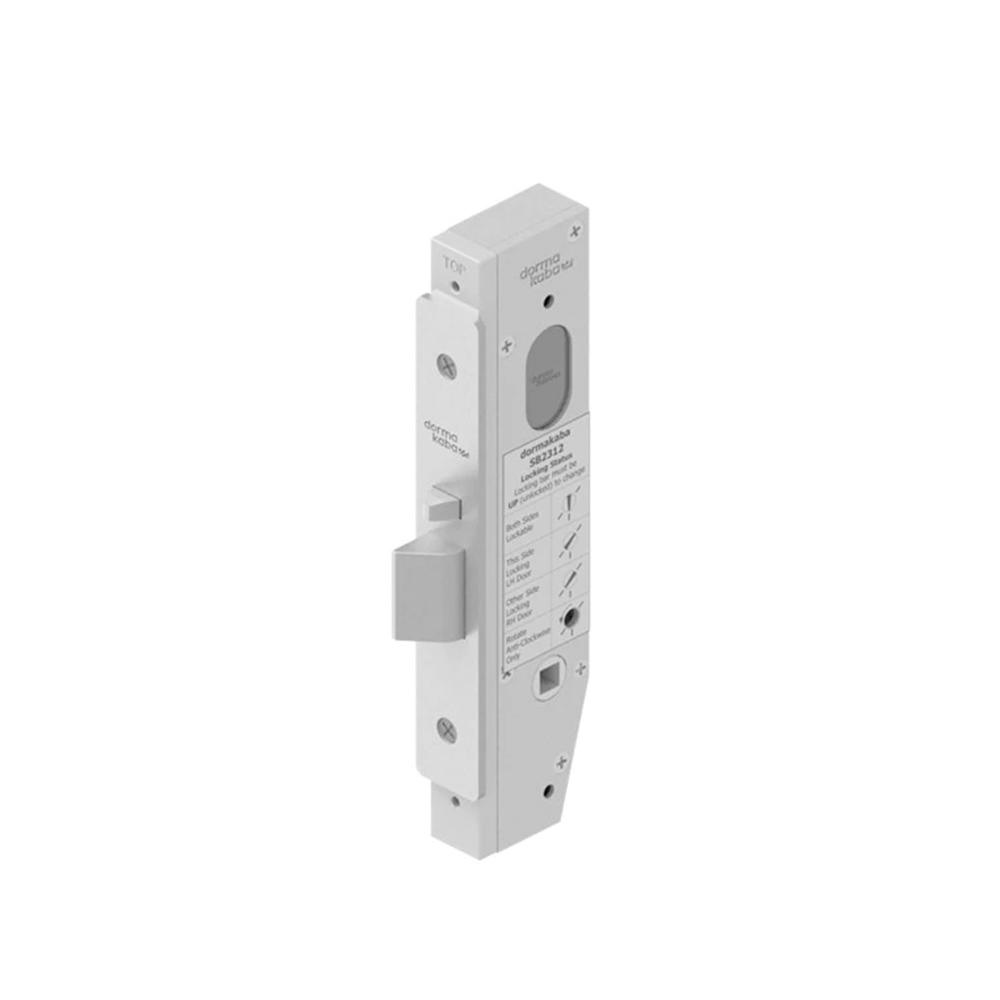

Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel

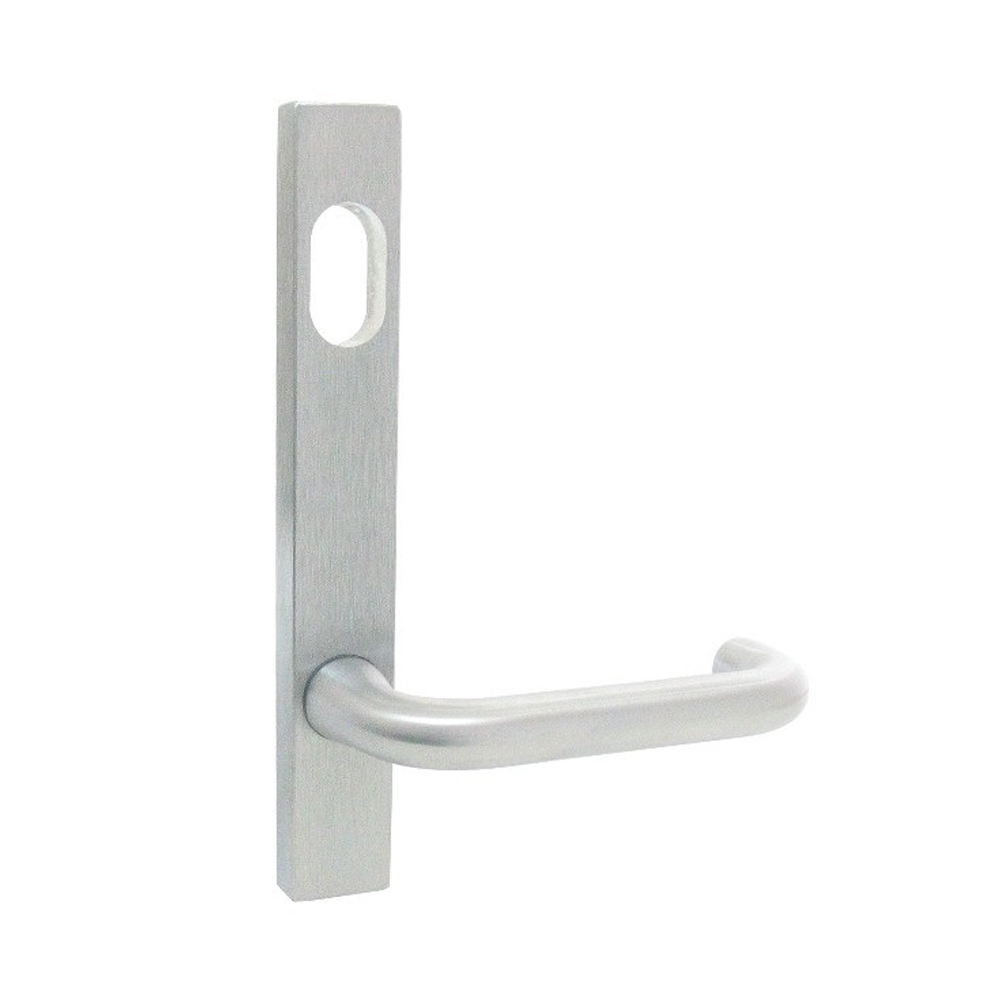

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
N601C25SCP

Features:

• Rectangular narrow stile exterior square end plate.
• Cylinder hole and 25 series lever.
• Disabled access AS1428.1 compliant lever.
• Concealed fixing.
• Plates are designed to fit back to back.
• External plates supplied with fixing screws.
• Fire rated.
• Reversible handing

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Screw fixing centres: 158.8mm
• Finish: Satin Stainless Steel

Compliance:

• This product comprises a BCA AS1428.1 -2009 compliant lever and has been Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock)

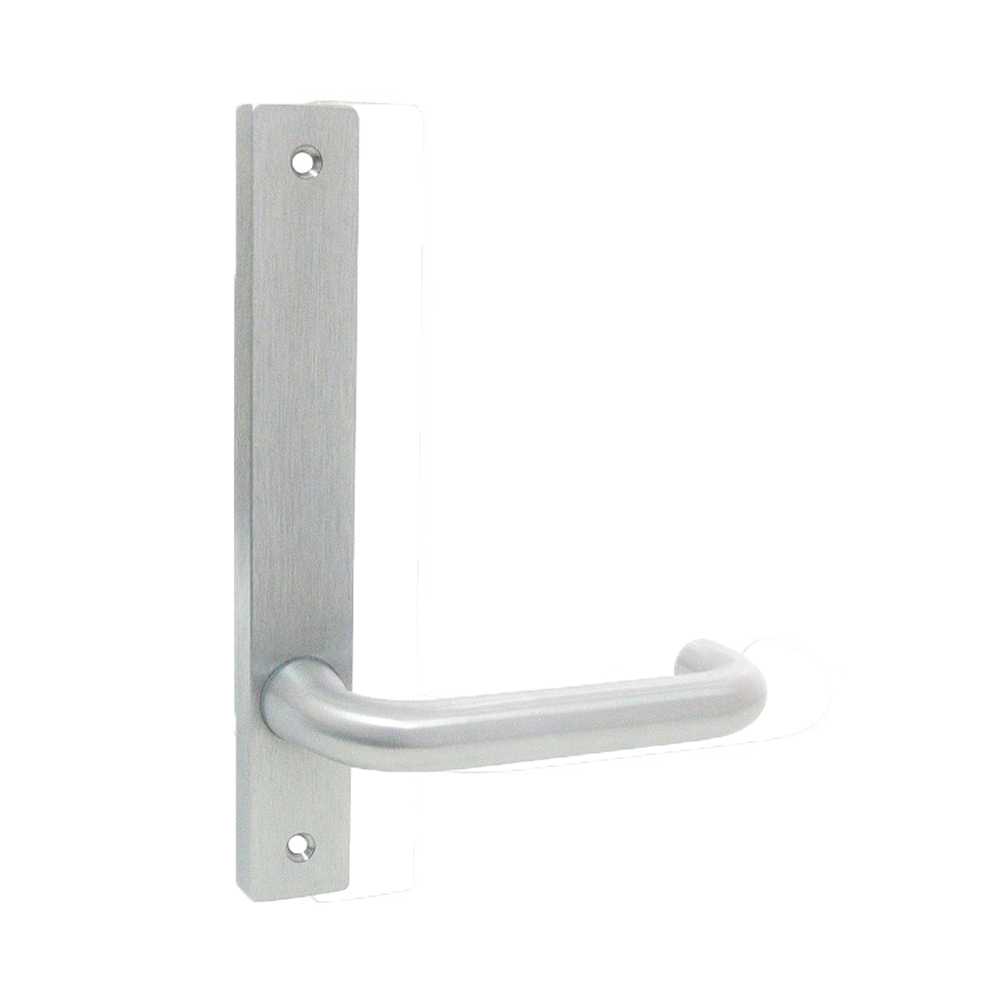

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602V25SCP

Features:

• Rectangular narrow stile interior square end plain plate
• 25 series lever
• Disabled access AS1428.1 compliant lever
• Visible fixing
• External plates supplied with fixing screws
• Plates are designed to fit back to back
• Fire rated
• Reversible handing

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Screw Fixing Centres: 158.8mm
• Finish: Satin Chrome Plate

Compliance:

• This product comprises a BCA AS1428.1 -2009 compliant lever and has been Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock)

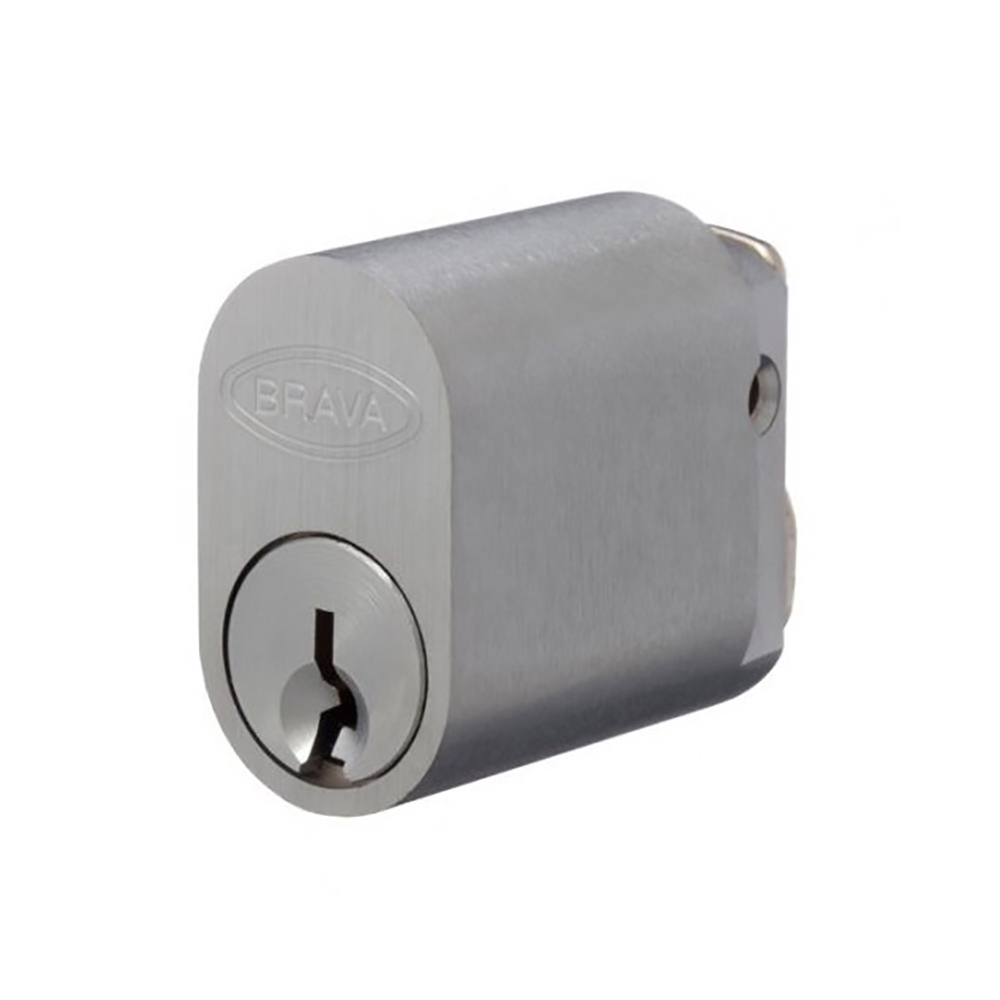

Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
