Dormakaba Panic Exit Device Fire Rated
ED22EOFSIL

Panic Exit Device provide a fast and convenient means of escape in the case of an emergency.

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

  • Designed to provide emergency egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the door.
  • Provides secure dead-latching function and offers external trim options for lever/knob or pull handle and is suitable for double or single, metal or timber doors.
  • Horizontal fitting with single point locking
  • Can be field sized to 645 mm minimum length
  • Latch-bolt is dead-latching
  • Field selectable handing

Specifications:

  • Door Thickness: 35mm - 50mm

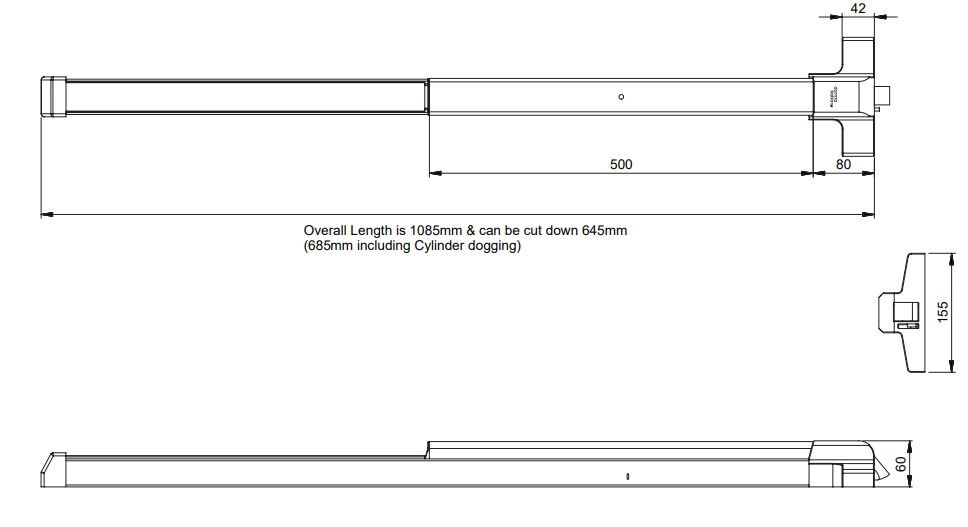

  • Overall Length: 1085mm
  • Minimum Length: 645mm
  • Max Door Width: 1085mm
  • Locking Mode: Locking - Horizontal
  • Has Dogging: No
  • Finish: Silver

Fire Rating:

  • Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Note: Fire doors cannot include dogging due to fire regulations.

SKU KABAED22EOFSIL
Barcode # 9322844024471
Brand Dormakaba
