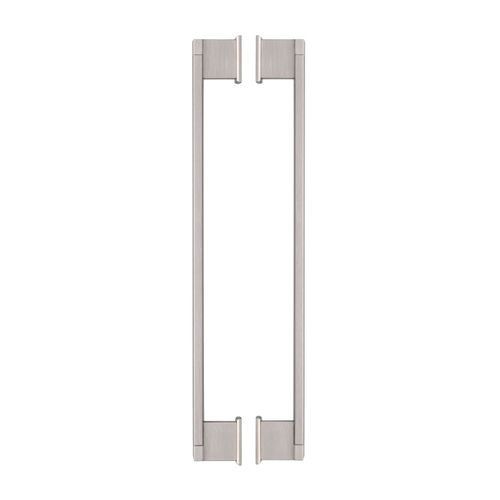

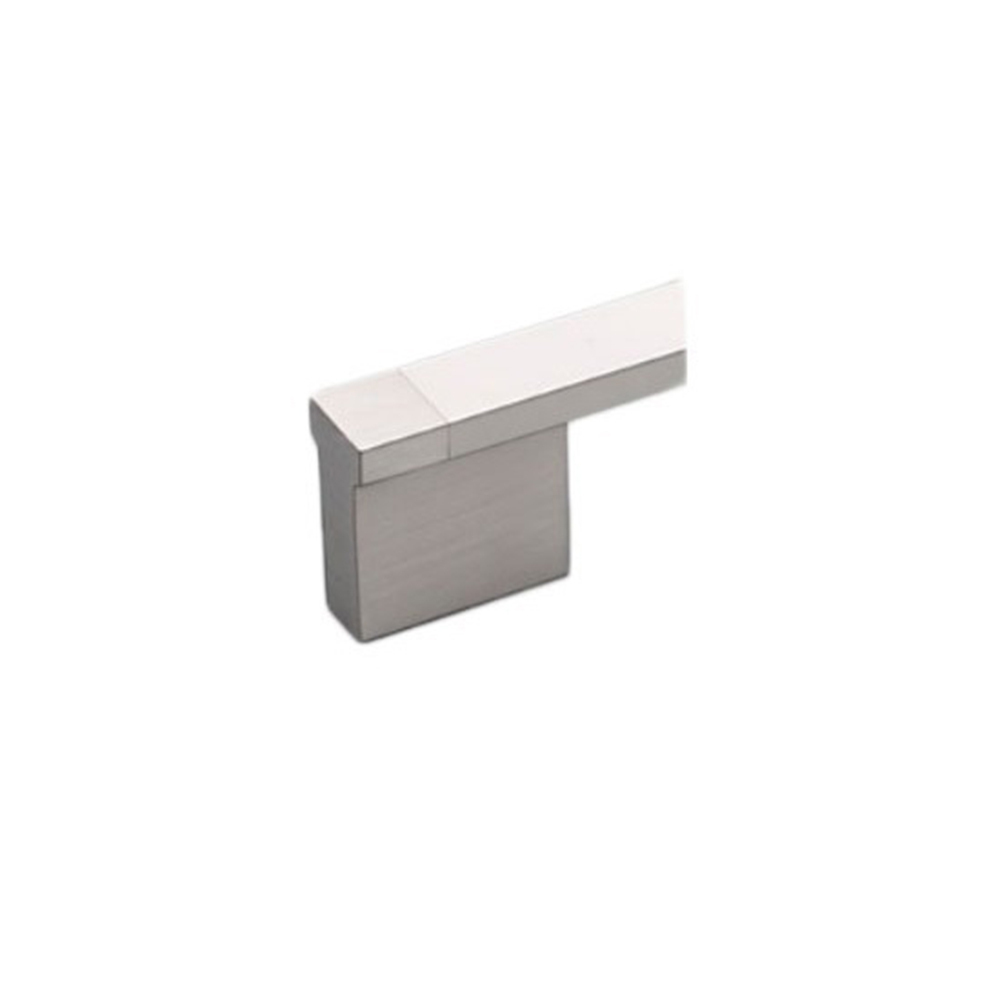

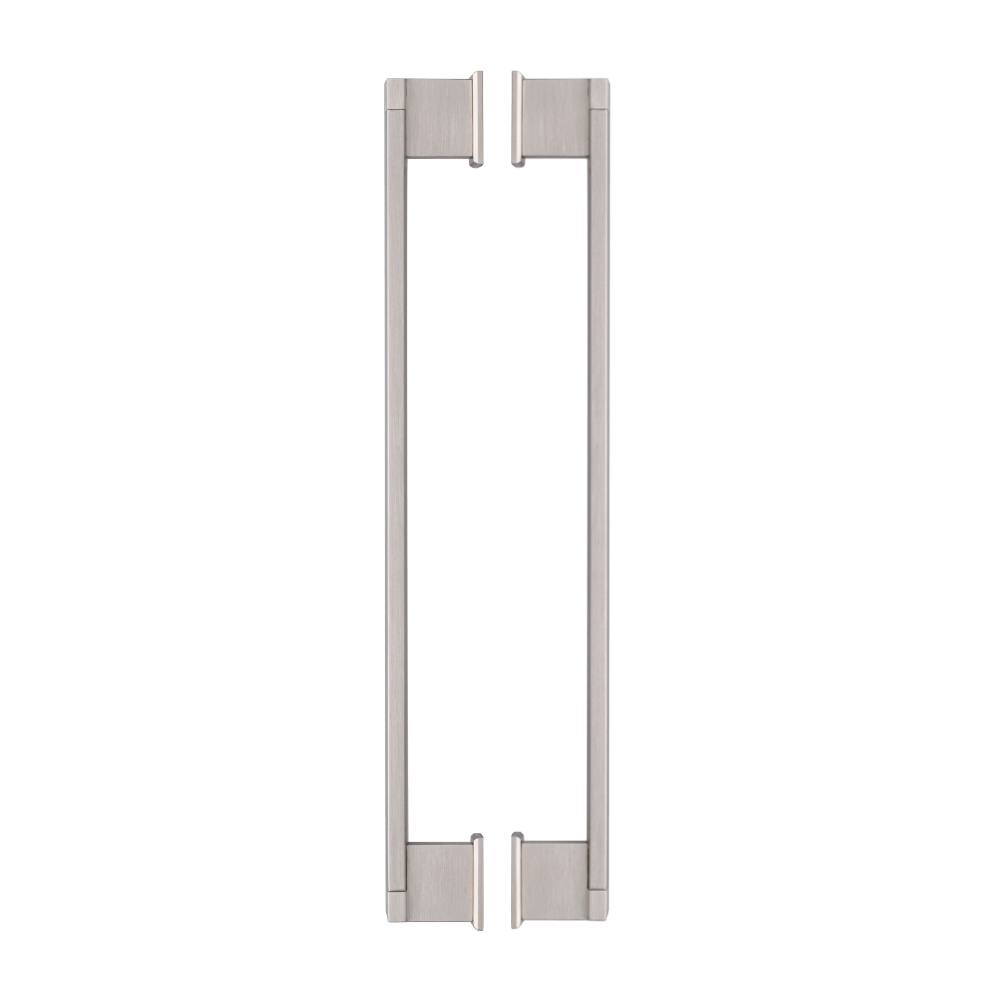

Kethy Enviro Flat Top Handle BTB Set

Pull Handles are used as a handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

Features:

• Kethy Enviro handles are available as a Back to Back handle set
• The joining pin is made from stainless steel and will fit doors up to 45mm

Specifications:

• Length:
  • 144mm
  • 176mm
  • 208mm
  • 240mm
  • 304mm
  • 400mm
  • 496mm
  • 624mm
• Center to Center:
  • 128mm
  • 160mm
  • 192mm
  • 224mm
  • 288mm
  • 384mm
  • 480mm
  • 608mm

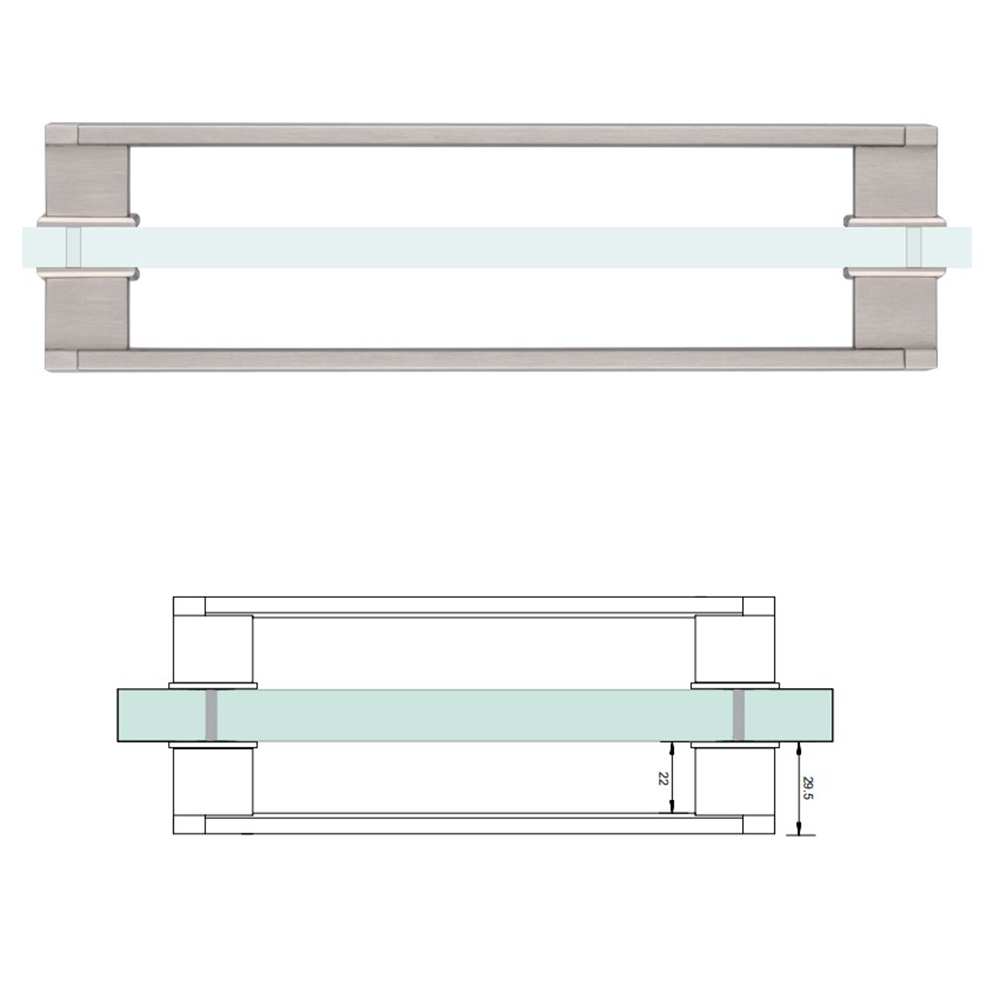

• Projection: 27.5mm
• Width: 12mm
• Material: Solid Stainless Steel Bar
• Available Finish:
  • Polished Stainless Steel
  • Stainless Steel

Note:

• The screw depth on Kethy handles can vary depending on the design, Most knobs and handles have sufficient thread depth to allow a 22mm or 25mm screw to fix to either 16mm or 18mm doors or drawers. Knobs and handles are supplied with the correct screw for these thicknesses depending on the handle. Longer screws can be supplied upon request, up to 50mm long.
