Kilargo Aluminium Meeting Style Seal for Single Action Fire Door
FDMS-2440TP

Meeting Stile are seals for frameless glass sliding doors.

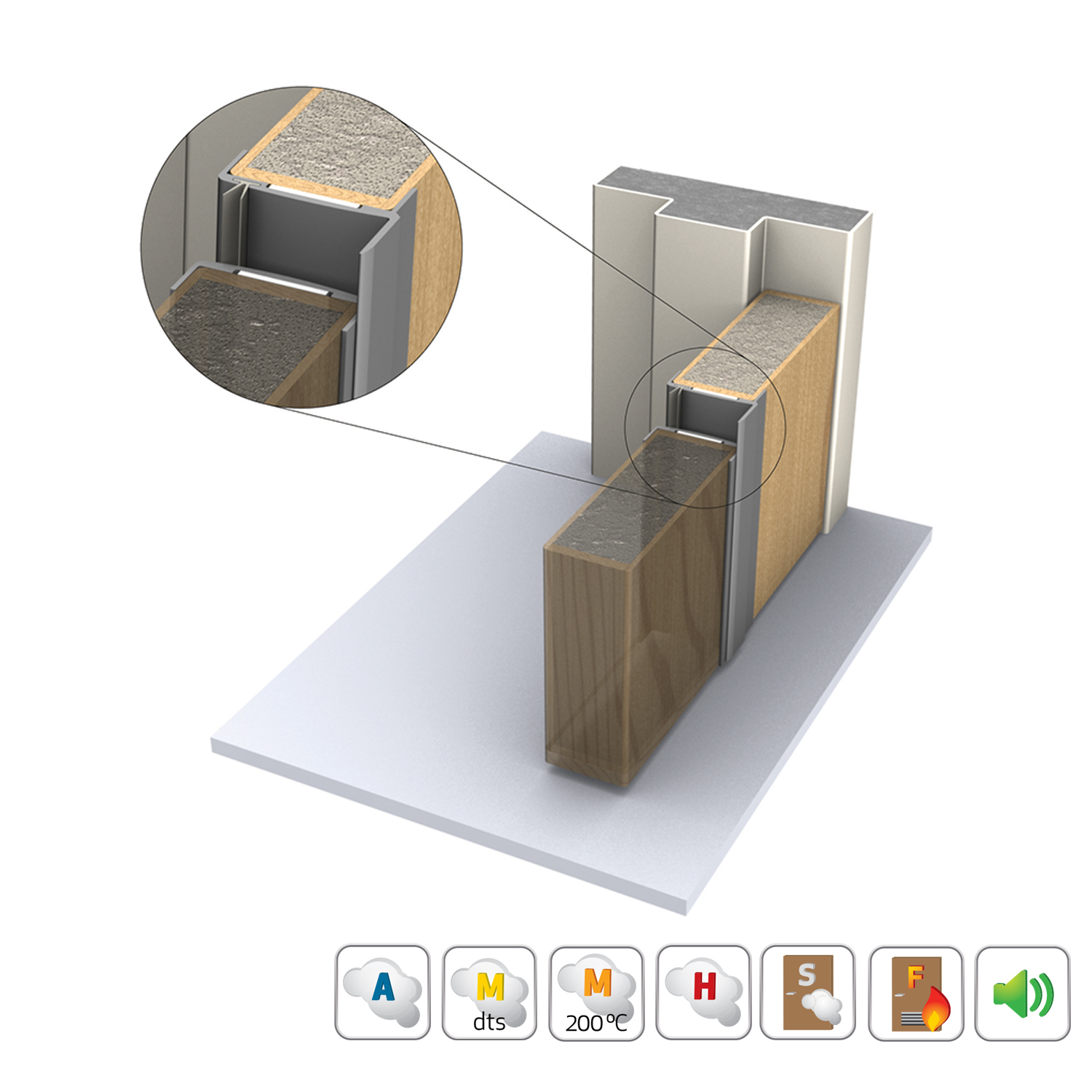

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • New modern and aesthetic appearance
  • Incorporates intumescent fire and smoke sealing technology
  • Improves acoustic performance
  • Can be used to upgrade existing fire doors
  • Easy installation
  • Sold as complete assembly incorporating 2 identical aluminium sections and PVC encased intumescent seals with elastomeric
    smoke and acoustic fins

Fixing:

  • The Kilargo FDMS-T astragals come complete with the intumescent and silicone seal fitted. Simply cut to length and screw-fix to the respective door leaves.

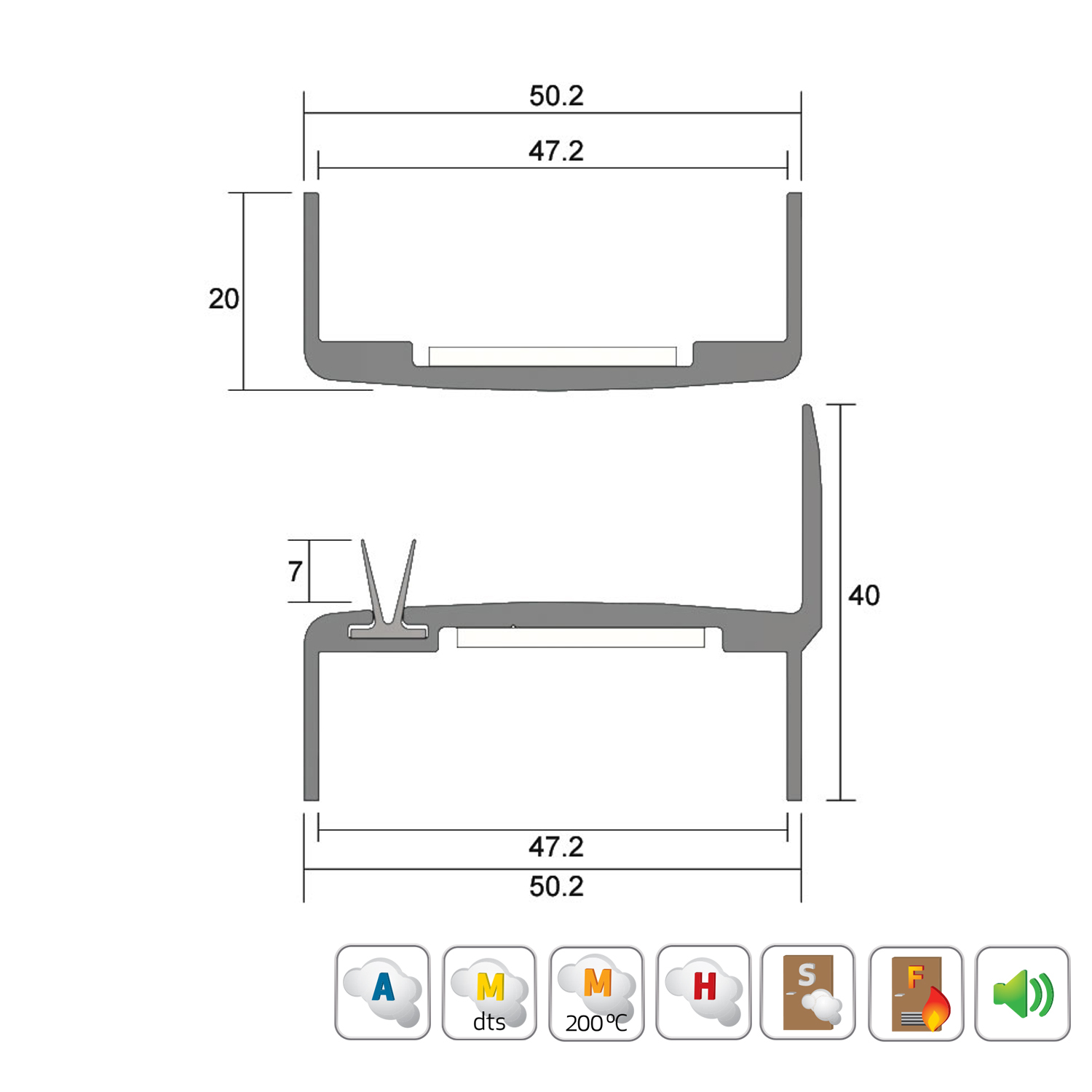

Specifications:

  • Material: Anodised Aluminium
  • Size: 2440mm
  • Finish: Clear Anodised

Approvals:

  • AS1530/4 fire tests with proprietary fire door assemblies
  • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
  • Conforms with BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2.
SKU KILFDMS2440TP
Barcode # 9355723039839
Brand Kilargo
