A heavy duty, automatic door bottom seal which can be face-fixed, semi or fully mortised into the bottom edge of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

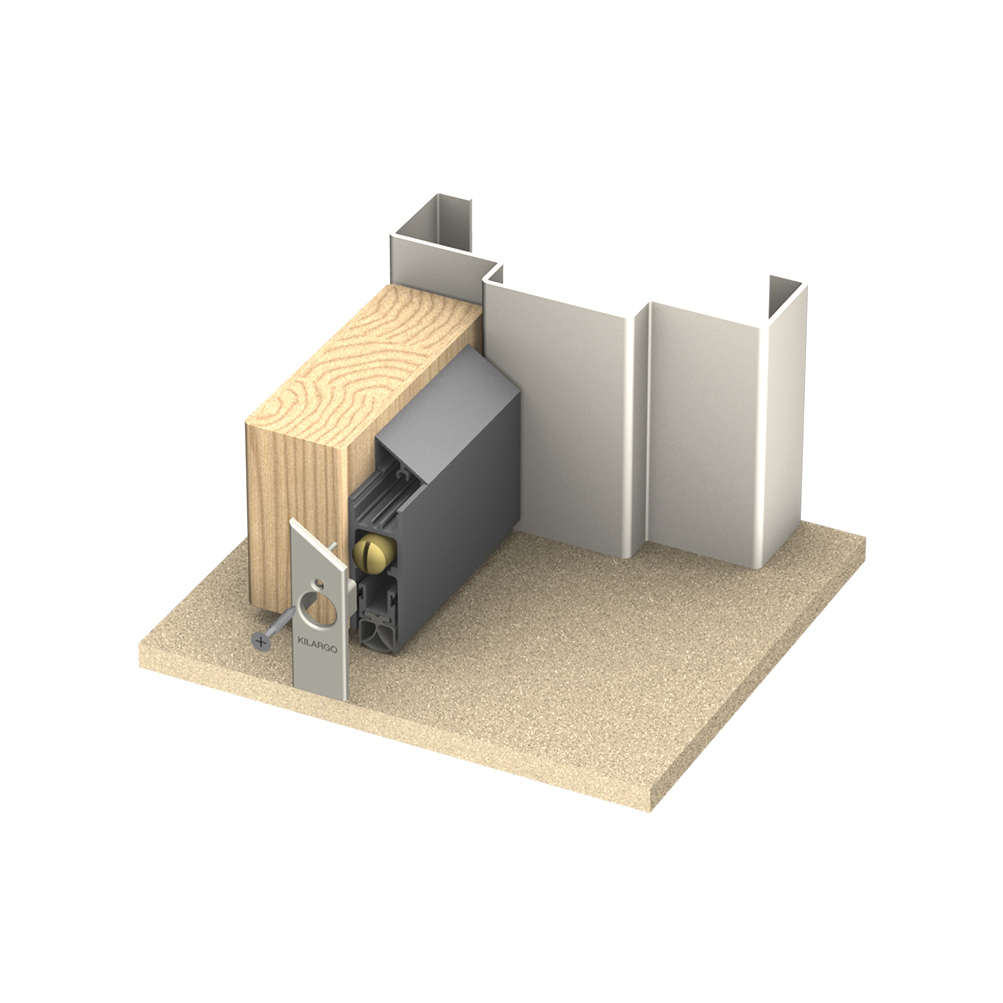

Face-fixed: The seal is fixed to the face of the door bottom using the long fixing screws provided. (see detailed fitting instructions). The reversible aluminium top cover plate conceals the fixing screws and provides an aesthetic, architectural finish. A set of screw-fixed nylon end plates ensure longevity of the seal mechanism.

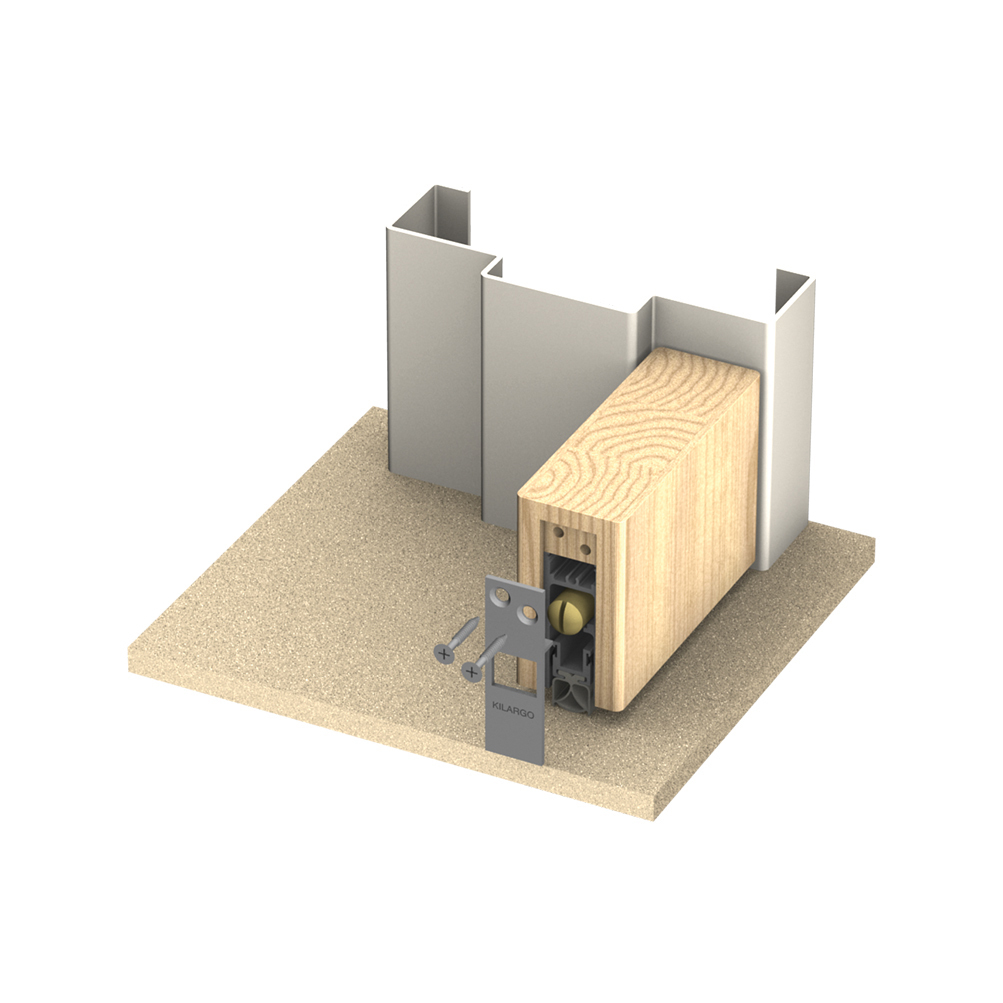

Fully-mortised: When the seal is to be fully-mortised, the seal (minus the top cover plate) is mounted into a 54mm deep x 22mm wide machined groove and screw-fixed back into the door stiles via stainless steel end plates, holding the seal in place.

The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Specifications:

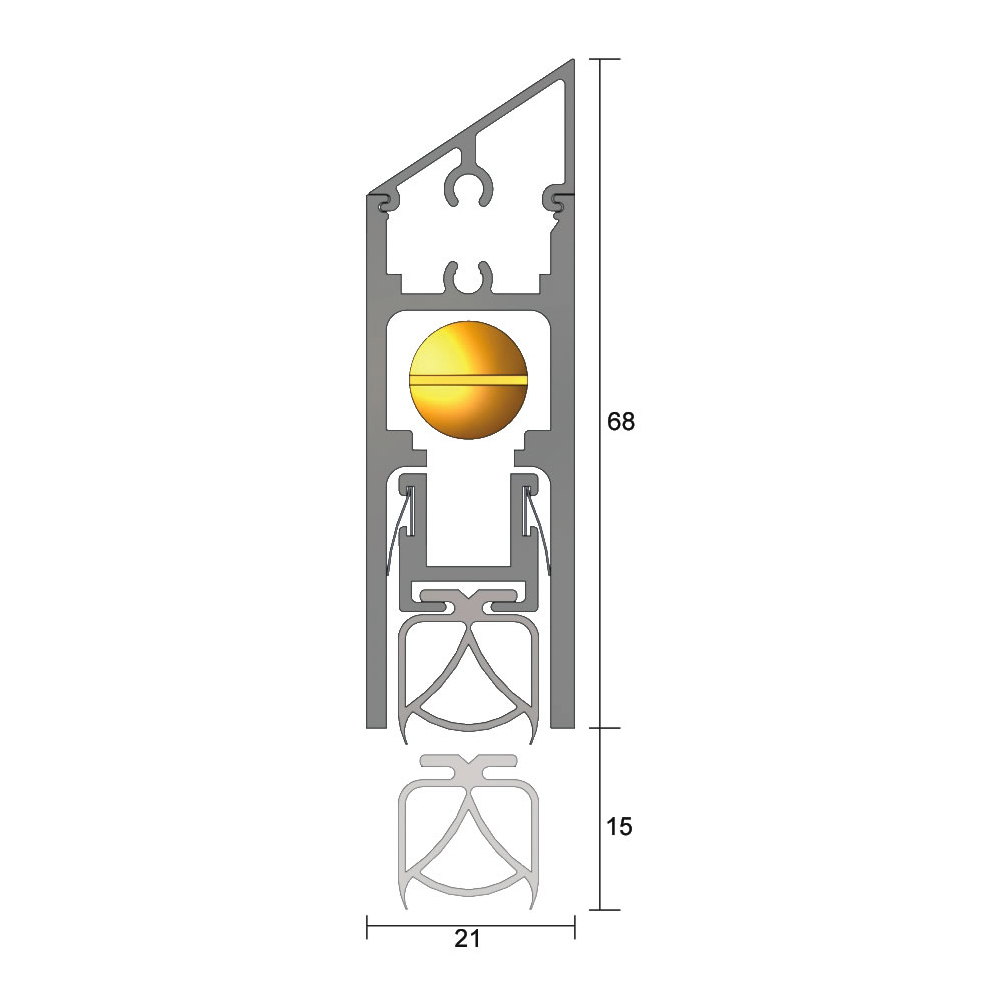

• Gap Size: Min. 3mm / max. 15mm
• Door set standard lengths: 920mm
• Finish: Clear Anodised

IS8020SI maximum allowable cut-back:

• 450mm seal cuts to 275mm
• 610mm seal cuts to 450mm
• 820mm seal cuts to 610mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm
• 1500mm seal cuts to 1220mm

(*Seals can be cut on site for exact dimension).

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• UL Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles

Antimicrobial architectural seals

• The threat of bacterial infection exists in all environments, but particularly in ‘high traffic’ commercial buildings. Dangerous bacteria live on all common surfaces, including doors, door hardware and door seals. These can be easily spread by simple human contact.
• To assist in suppressing the growth & spread of these bacteria, Kilargo has incorporated antimicrobial technology into the manufacture of its range of silicone door seals. Our innovative range of antimicrobial silicone gaskets provide outstanding performance with unbeatable hygiene, eliminating up to 99.99% of bacteria.
• Manufactured with in-built SteriTouch® protection, they are designed for ‘clean room’ environments and buildings that demand superior infection control, including:

  • hospitals, medical centres and nursing homes
  • laboratories and testing facilities
  • childcare centres and schools
  • food-handling areas.

SteriTouch

Like all Kilargo products, our SteriTouch® range is professionally manufactured to exacting standards - providing exceptional solutions for containing sound, limiting the spread of smoke, improving energy efficiency and preventing weather infiltration. Along with incredible bacteria resistance, they’re the perfect choice for the most hygienic buildings.

What is SteriTouch®?

• SteriTouch® additives use the proven, natural sterilising properties of silver to reduce the growth of harmful bacteria, mould and fungi by up to 99.99%. In fact, SteriTouch® provides protection against a wide range of pathogens, and is particularly effective against illnesscausing bacteria such as E.Coli, Salmonella and MRSA.
• A trusted and established brand, SteriTouch® is safe for even the most sensitive applications and is backed by independent testing and continual assessment. In line with Kilargo’s ‘green’ commitment, SteriTouch® additives do not leach and have no environmental impact.
• Best of all, the antibacterial qualities of silver are constantly active and enduring - bringing the peace-ofmind and lasting protection you need.
