Kilargo Batwing Selfadhesive Perimeter Door Seal

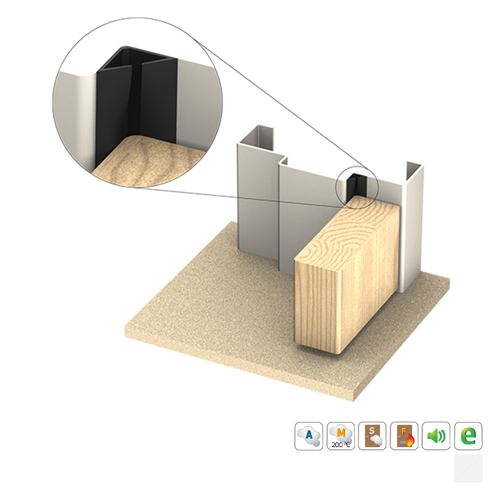

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Specifications:

• Standard Length:
  • 1000mm
  • 2100mm
  • 2400mm
  • 2700mm
  • 3000mm
• Door Set Standard Length:
  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2750mm
• Available Finish:
  • Black
  • White

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 100,000 open & close cycles
