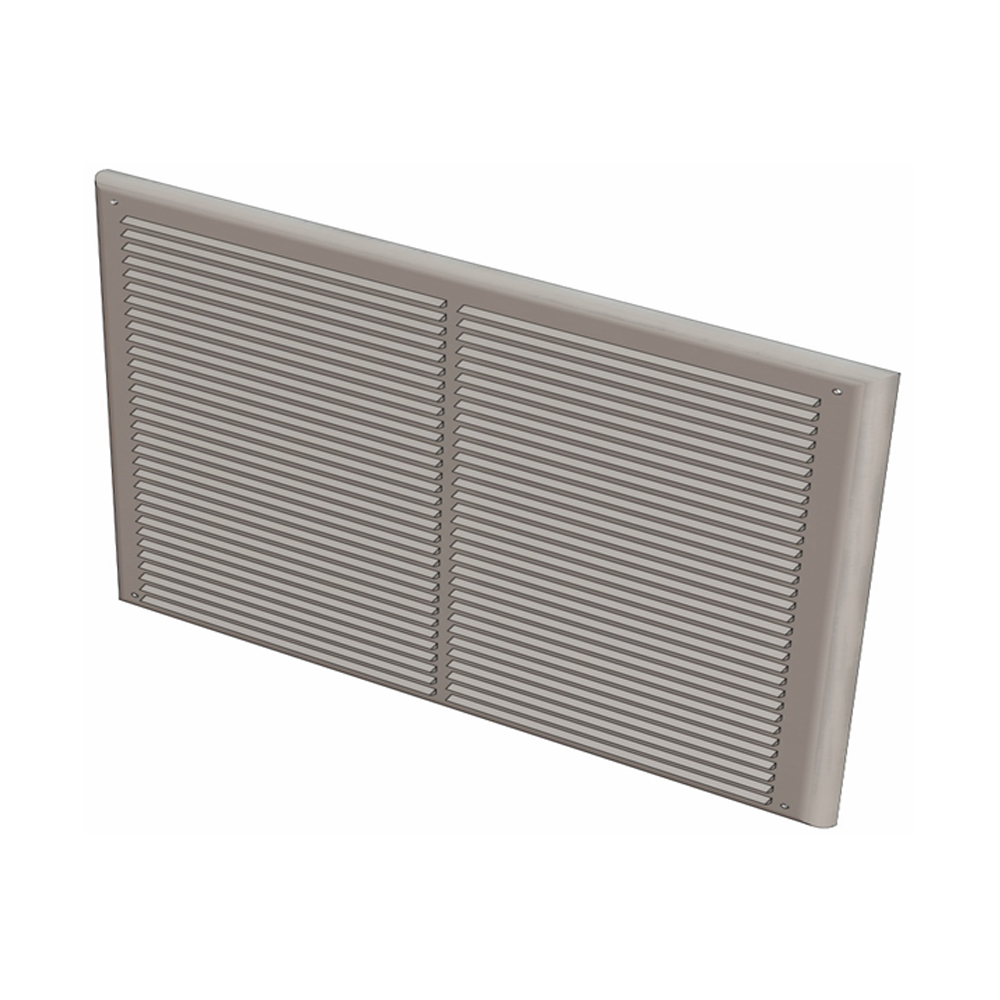

Kilargo Door Cover Grille Surface Mounted For IFD-D
KCG-600300S

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 5-7 business days after payment is made.

Door Grille is commonly used in various types of buildings and applications where fire protection and smoke control are essential.

Door Grille Function designed to help prevent the spread of fire and smoke through doors, particularly in commercial and public buildings where fire-rated doors are installed.

Features:

• Replacement aluminum surface mounted cover grill
• Cover grilles are then secured to both sides of the door leaf with screws provided.
• Innovative, slimline design
• Suitable for both Mini & Maxi fire doors
• Fully tested to AS 1530.4 to comply with the requirements AS/NZS 1905.1
• Grille features decorative finish suitable for INTERNAL USE ONLY

Specifications:

• Suits: IFD-D door grille
• Integrity Fire Rating: 2 hours
• Insulation Fire Rating: 1/2 hour
• Application: For performance and application summary refer to System Installation FDI, FD2 & FD3.
• Performance: For airflow, pressure and acoustic data please refer to nomogram details in technical Section of catalogue.
• Size: 600mm x 300mm
• Finish: Powder-coated silver
