Key Features:

  • Can provide up to 2 hours fire resistance when fitted to the bottom of proprietary fire doors.
  • Non compliant fire doors can be salvaged.
  • Avoids expensive door build-ups or door replacements.
  • Cost-effective solution.
  • Easy retro-fit installation.
  • No need to remove the door during installation.

Specification:

  • Materials: Anodised aluminium profile, flame retardant smoke, draught and light excluding silicone gasket and integral high performance intumescent fire seals.

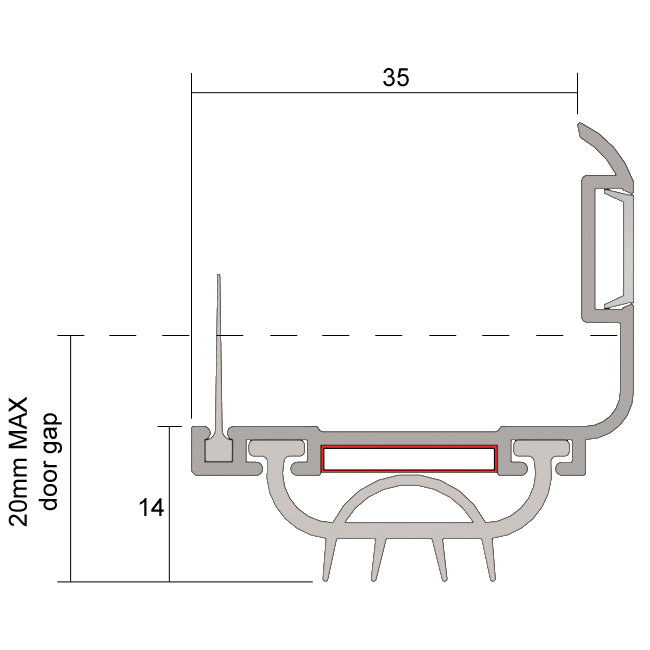

  • Gap Size: up to 20mm maximum, under nom. 35mm and 45mm proprietary doors.
  • Finish: Clear Anodised (Silver) with grey gaskets
  • Fixing: Supplied with pre-drilled slotted holes and screws
  • Size: 820mm

Approval/s:

  • Fully tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
  • Conforms with BCA Specification C3.4 smoke sealing requirements
SKU KILFDBU20820CA
Barcode # 9355723040439
Brand Kilargo
