Kilargo Flexi-Wing Perimeter Door Seal
IS1212-LSDS-BLK

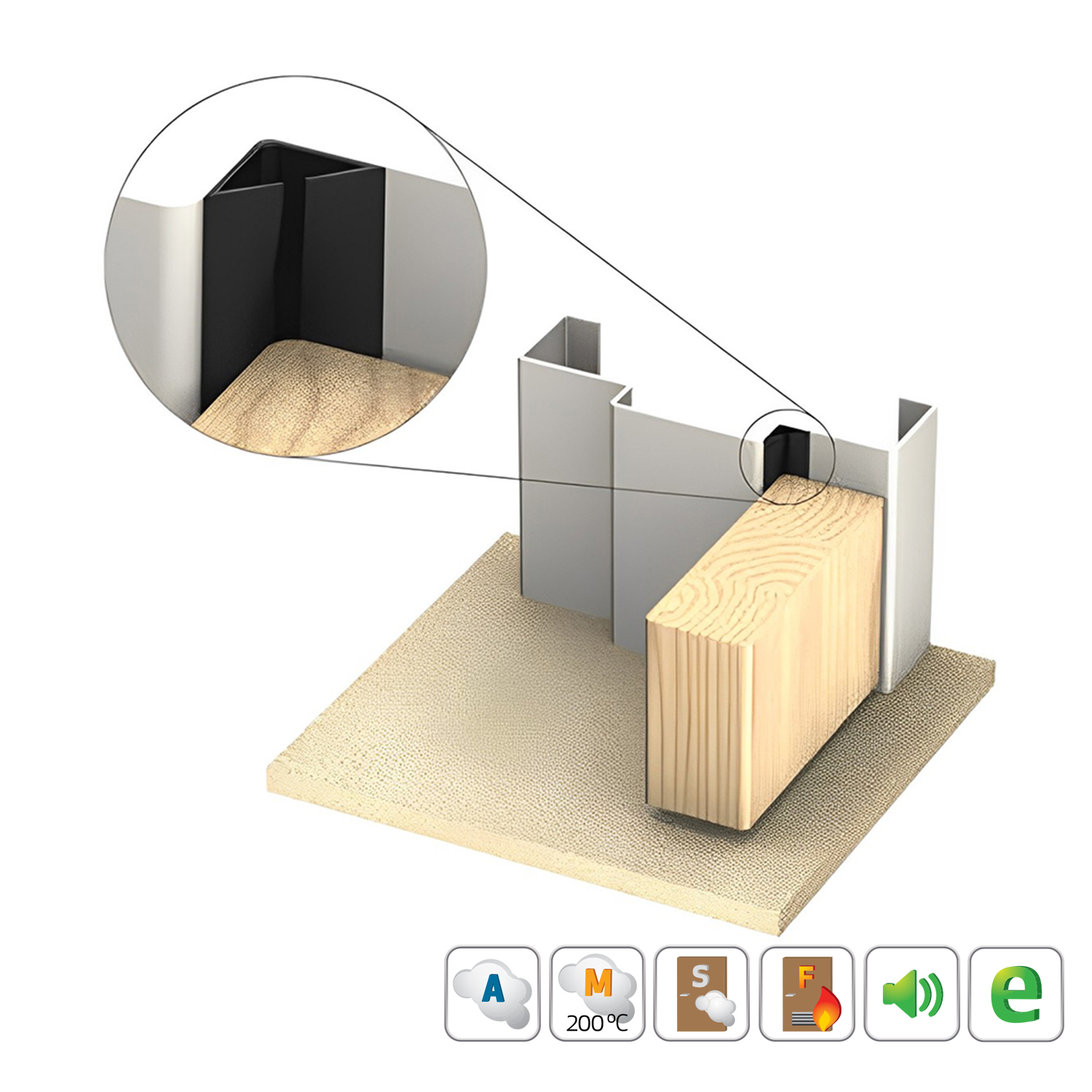

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Reduces friction and resistance while retaining superior fire, smoke and acoustic performance
• Consists of a semi-rigid, flexible flame retardant PVC carrier combined with twin elastomeric sealing blades
• An aggressive self-adhesive backing tape is situated on both sides of the carrier

Specifications:

• Door Set Standard Length: Long Single: 1 x 1000mm, 2 x 2750mm
• Finish: Black

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• UL Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 100,000 open and close cycles
