This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Graphite intumescent combined fire, smoke and acoustic seal.

Application

This versatile intumescent fire and smoke seal is simply fitted to the rebate of a door frame perimeter to provide resistance against fire, smoke (ambient, medium and hot temperature), sound, draugh Twin Fin, dust and light.

Key Features

• Tested on proprietary fire doors for up to 2 hours fire resistance.
• Fi Twin Fin quickly and easily without removal of the door.
• Provides an excellent acoustic & smoke seal across all temperatures.
• Two elastomeric sealing fins cater for excessive door movement across varying temperatures.
• Simple self-adhesive application onto the door frame.
• Strategically located in the impact free zone of the opening.

Use With

Used in conjunction with a Kilargo door bottom solution such as the IS8010si automatic door bottom or KP3504TF seal to provide a total door sealing system incorporating ambient-medium-hot temperature smoke and acoustic properties.

Materials

Kilargo high performance graphite based intumescent core with PVC backing incorporating two elastomeric sealing fins. Supplied with aggressive self adhesive backing tape on both flanges of the carrier.

Gap Size

Minimum 3mm

Sizes Door Se Twin Fin:

• Single 1 x 1000mm, 2 x 2100mm
• Long Single 1 x 1000mm, 2 x 2750mm
• Double 3 x 2100mm
• Long Double 1 x 2100mm, 2 x 2750mm

Standard lengths 1000mm, 2100mm, 2400mm, 2700mm, 3000mm

Finish

Standard Colour: Black

Fixing

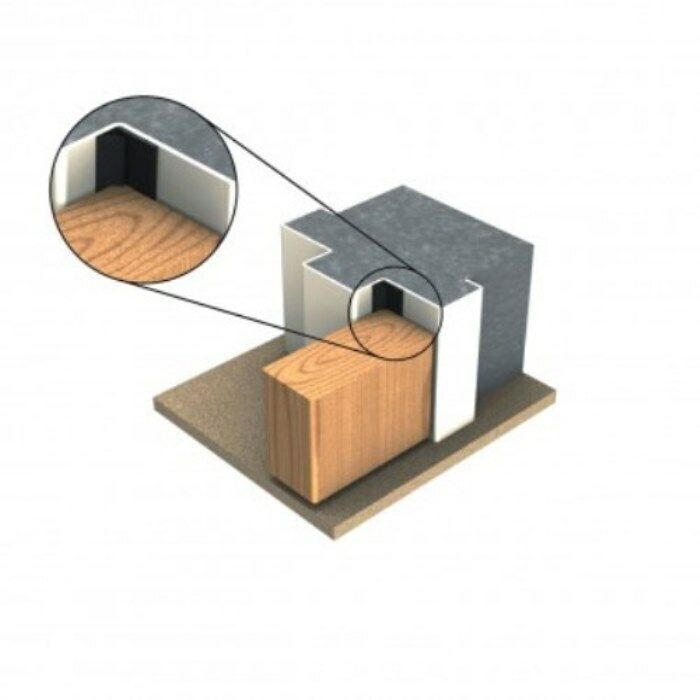

The product is fitted onto the rebate of the door frame and applied using the integral self-adhesive backing tape.

Approval/s

• Fire tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
