Kilargo IS3015si Rebated Door Bottom Seal
IS3015SI3500CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

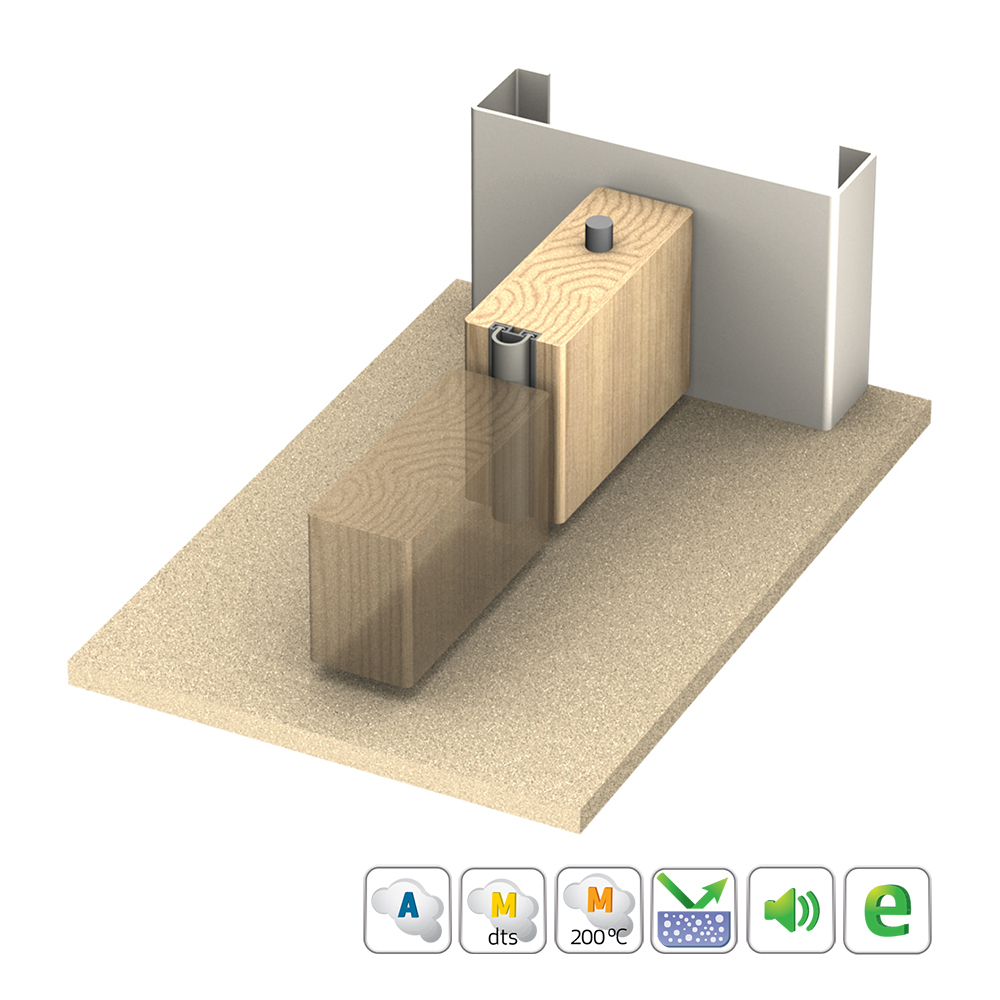

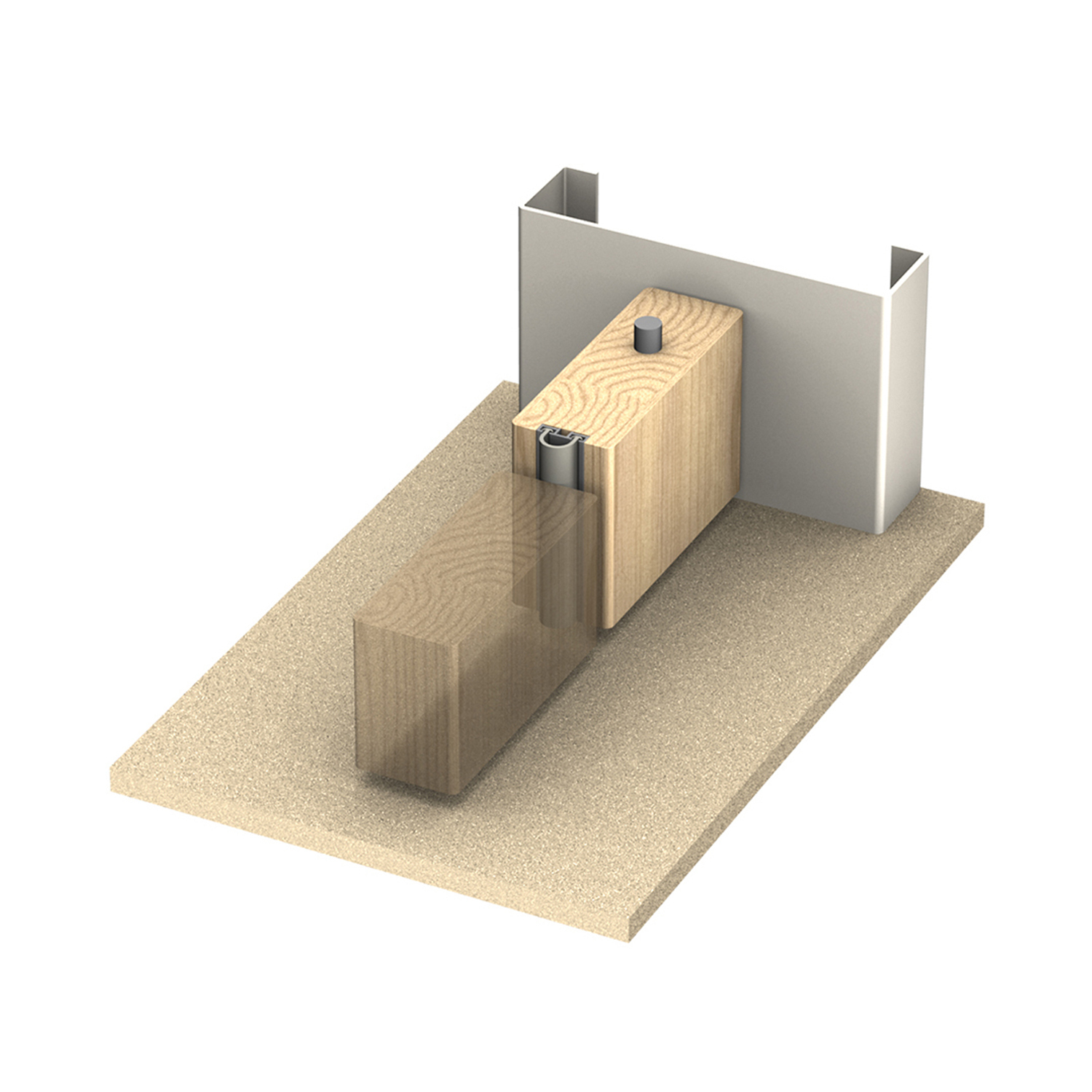

• Designed in a concealed rebated groove in the meeting stile or bottom of the door leaf (respectively) for single and double swing timber door
• These seals may be surface mounted or rebated into doors to allow for depth adjustment as required
• Both seals can provide effective containment against medium and ambient temperature smoke, sound, dust, light, weather and vermin

Specifications:

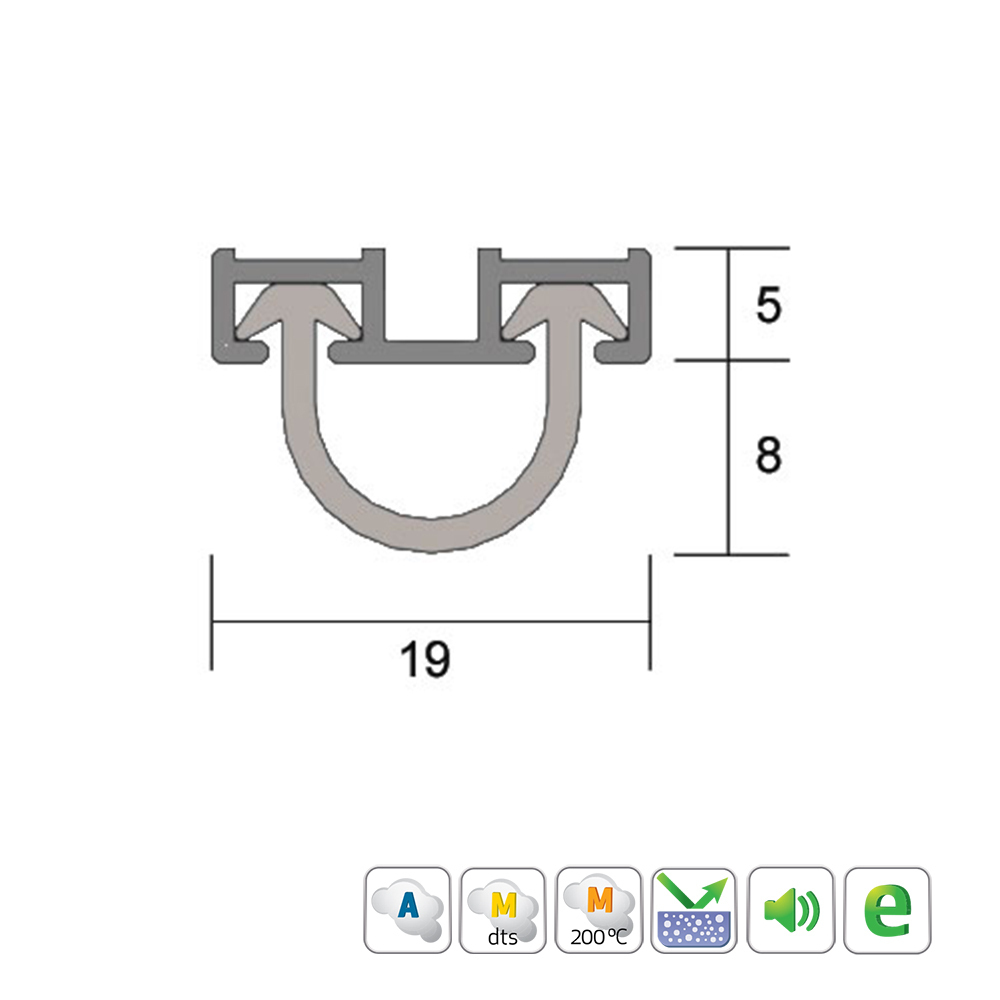

• Gap Size: Min. 3mm / max. 8mm (allowing for the aluminium carrier to be recessed)
• Length: 3500mm
• Anti-Microbial: No
• Finish: Clear Anodised
• Fixing:
  • Timber fixing screws are supplied with detailed fitting instructions
  • Fixing holes are pre-drilled and slotted to allow the seals to be positioned accurately

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
