Kilargo IS3017si Sweep Action Blade Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

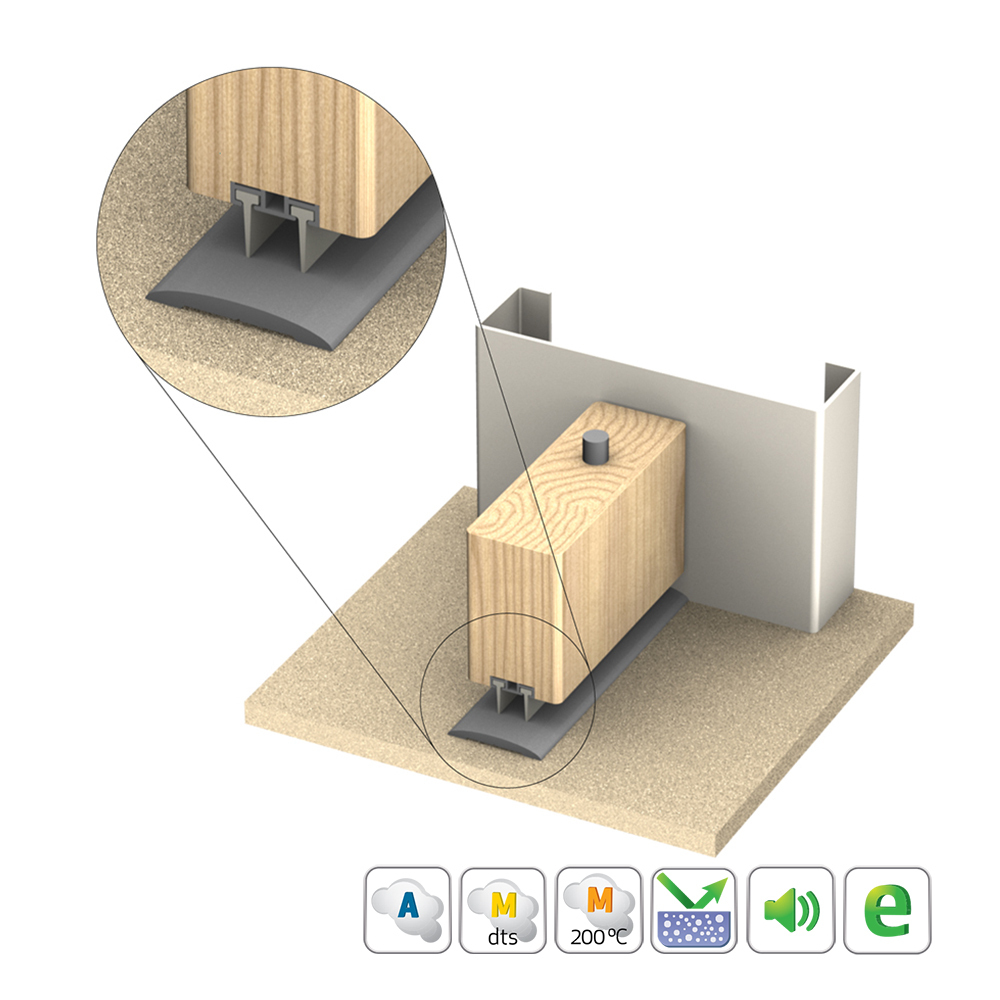

Sweep Seal Function - seals the gap between the door's bottom and the threshold.

Features:

• With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
• This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
• This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies

Specifications:

• Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Finish: Clear Anodised
• Fixing:
  • Timber fixing screws are supplied with detailed fitting instructions
  • Fixing holes are pre-drilled to allow the seals to be positioned accurately

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
