Kilargo IS3017SI Sweep Action Blade Seal
IS3017SI5000CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

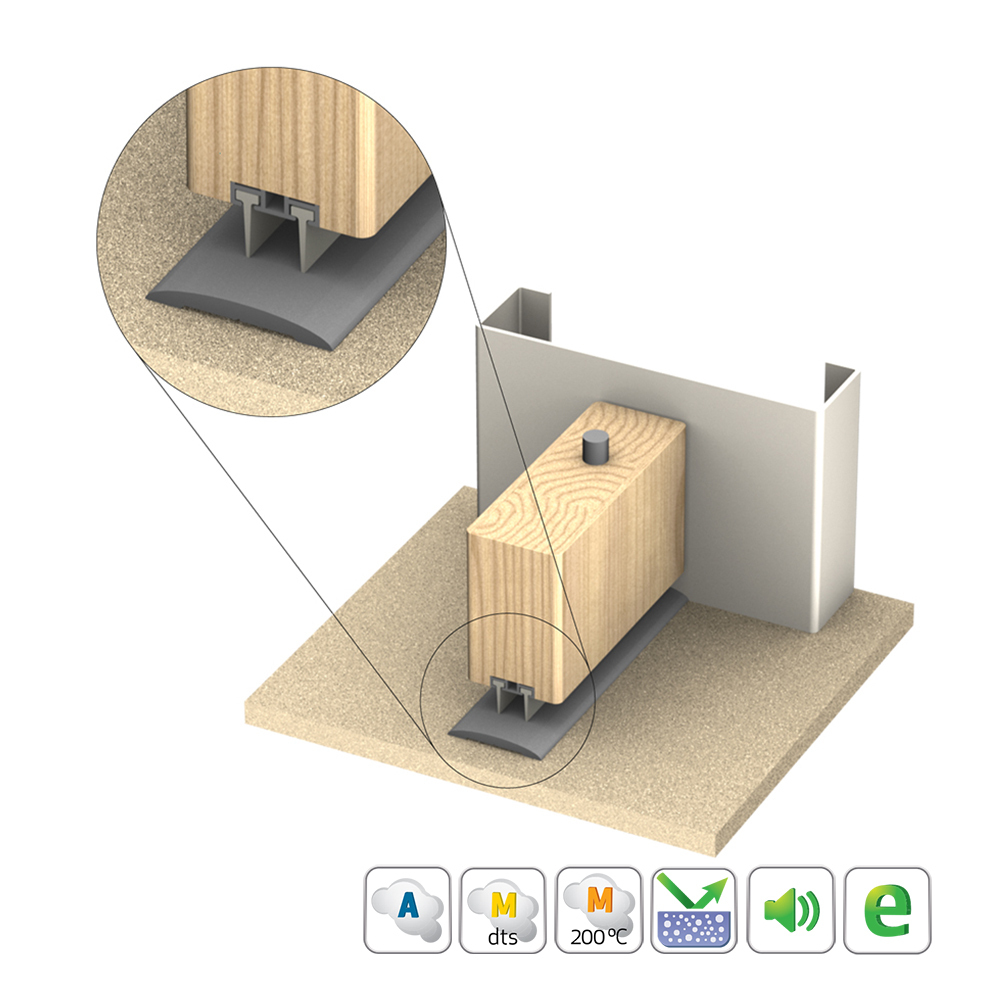

Sweep Seal Function - seals the gap between the door's bottom and the threshold.

Features:

  • With high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors
  • This seal may be surface mounted or rebated into doors to allow for depth adjustment as required
  • This seal provides effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies

Specifications:

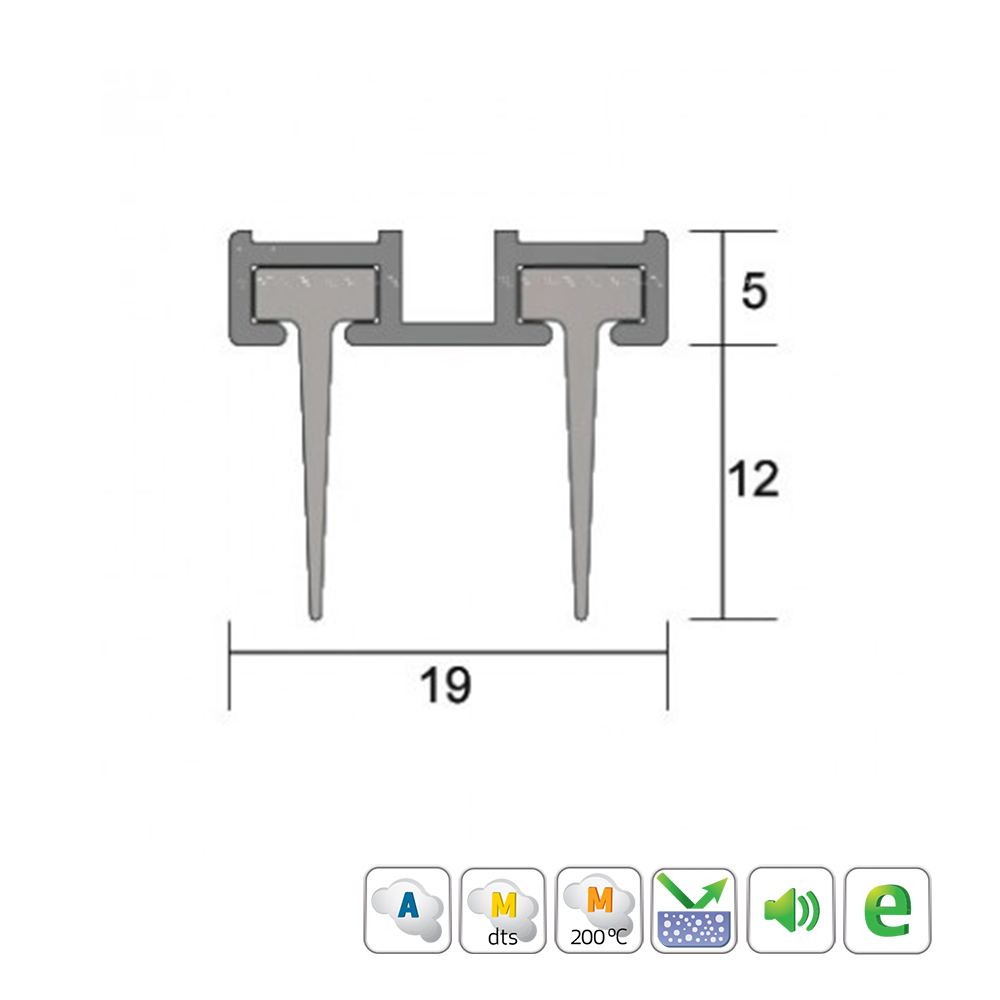

  • Gap Size: Min. 8mm / Max. 12mm (allowing for the aluminium carrier to be recessed)
  • Length: 5000mm
  • Anti-Microbial: No
  • Finish: Clear Anodised
  • Fixing:
    • Timber fixing screws are supplied with detailed fitting instructions
    • Fixing holes are pre-drilled to allow the seals to be positioned accurately

Approvals:

  • Conforms to BCA Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
SKU KILIS3017SI5000CA
Brand Kilargo
