Kilargo IS3021si Finned Door Bottom Seal
IS3021si-2500CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Door Bottom Seal used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

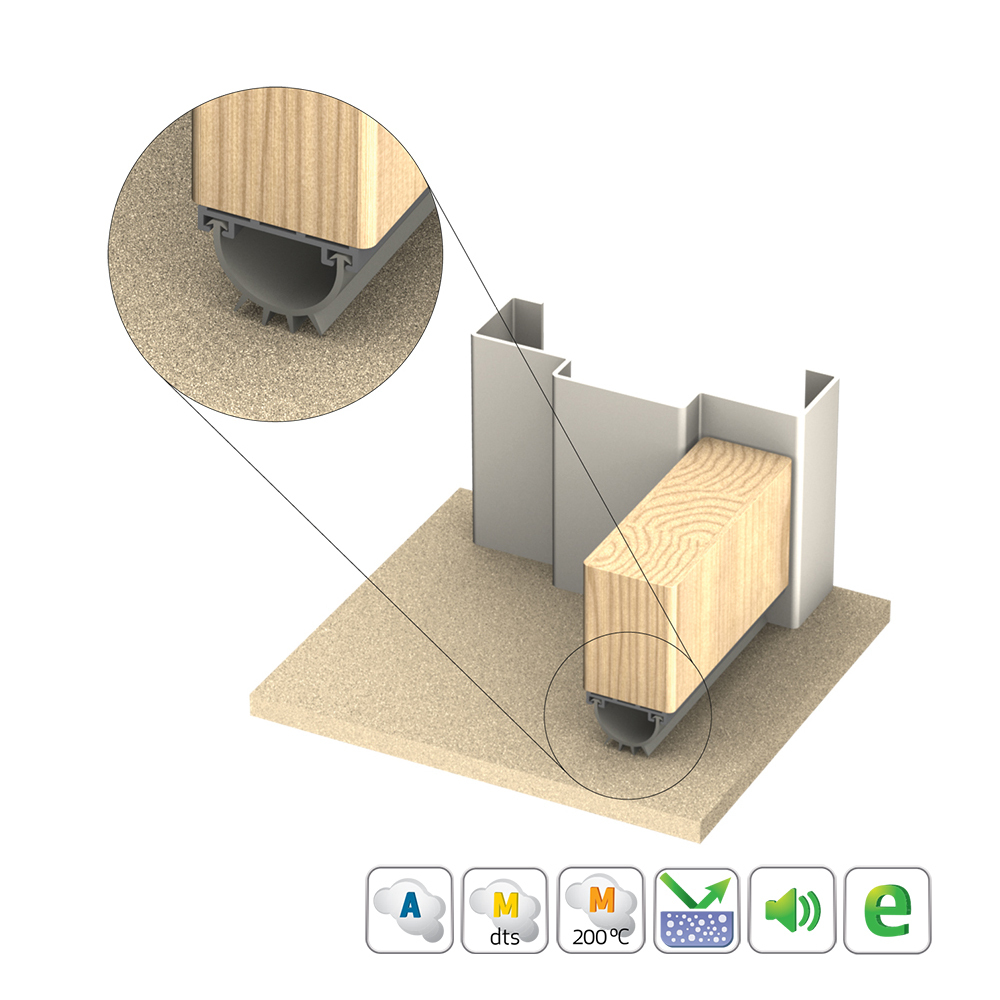

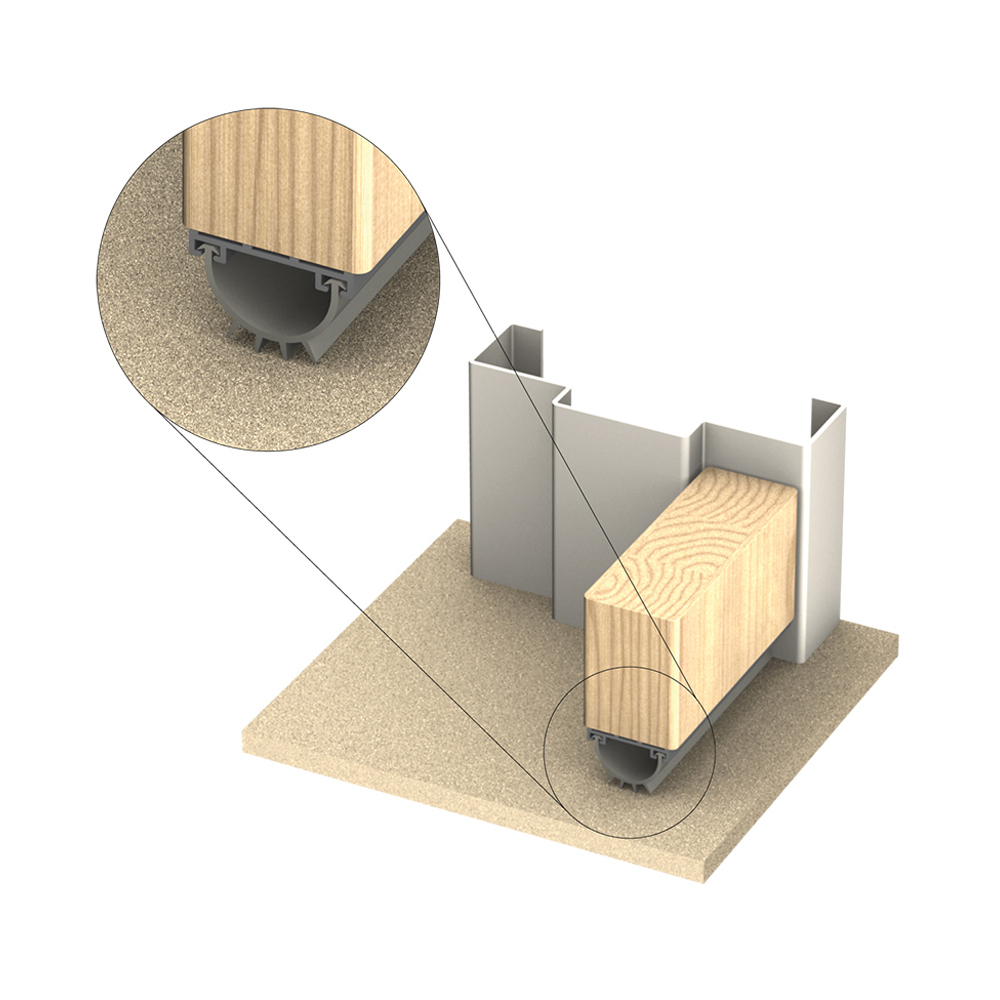

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Can be fitted to door bottoms or meeting stiles of single and double action doors
• Can also be utilised for door bottoms on roller type doors
• Both seals can provide effective containment against medium and ambient temperature smoke, sound, dust, light, weather and vermin

Specifications:

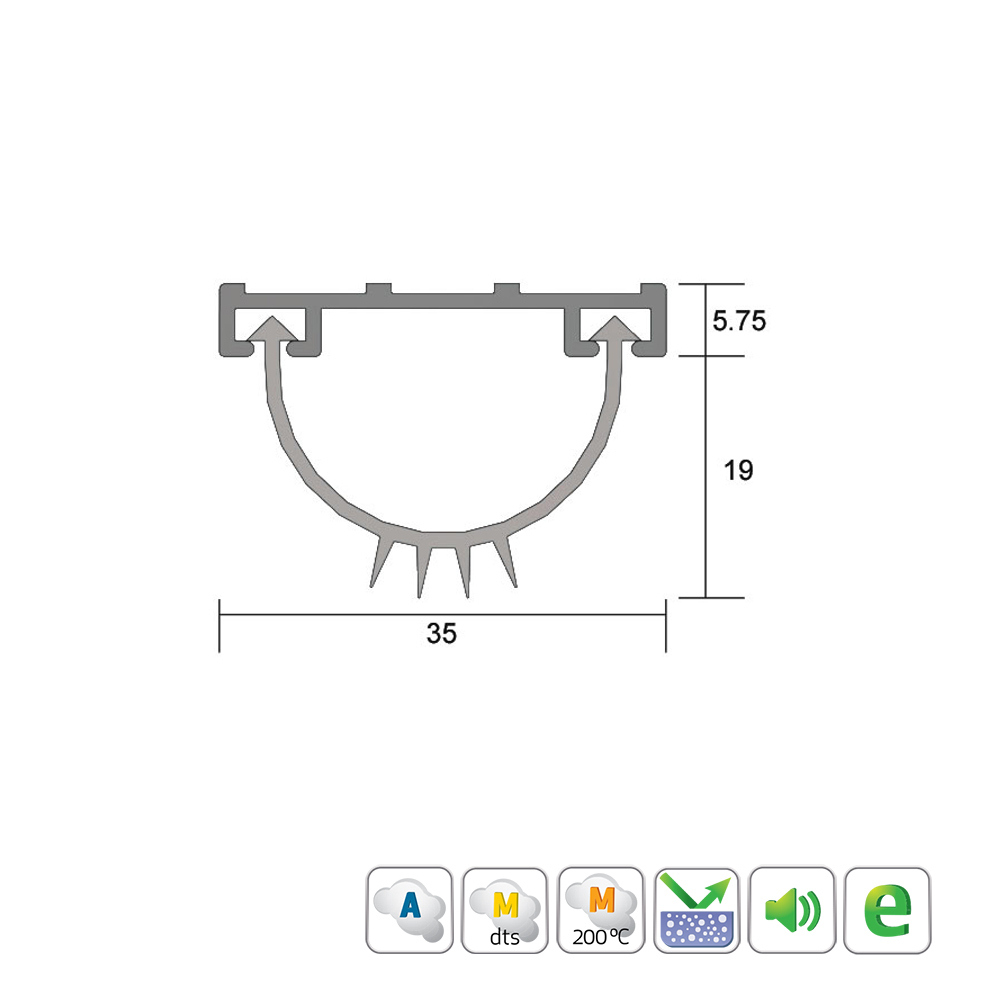

• Gap Size: Min. 20mm / max. 24mm
• Length: 2500mm
• Antimicrobial: No
• Fixing:
  • Fixing screws are supplied with detailed fitting instructions
  • Fixing holes are pre-drilled to allow the seals to be positioned accurately
• Finish: Clear Anodised

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
