Kilargo IS4010 Heavy Duty Low Profile Threshold Plate
IS40102750CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Threshold Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

  • These heavy duty, low profile threshold plates are used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
  • Low profile design ensures compliance with the access for people with disability€™ requirements, AS1428/1 and BCA D3, particularly for wheelchair traffic.
  • Has a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

Specifications:

  • AS1428 Compliant: Yes
  • Includes Fixing Screws: Yes

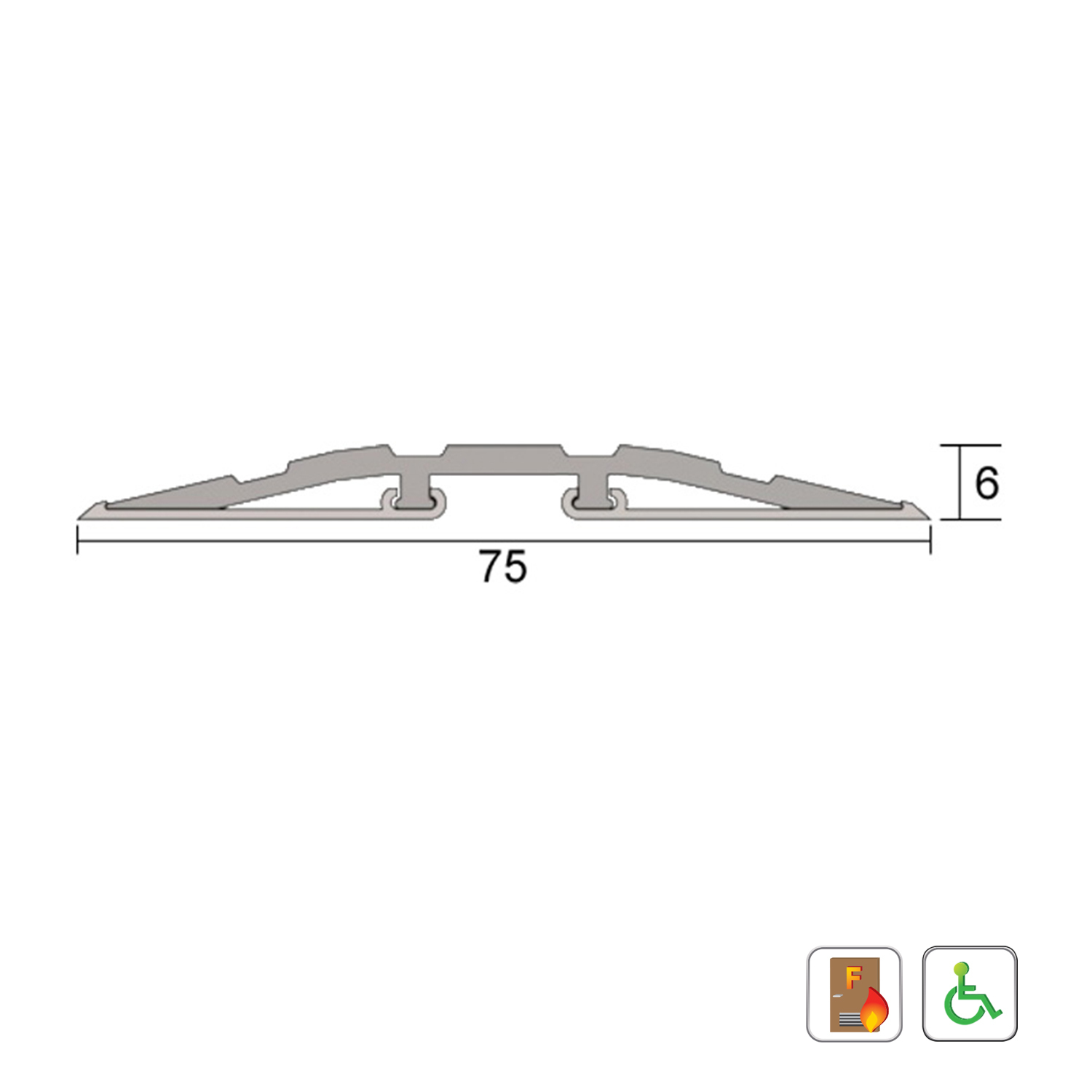

  • Depth: 75mm
  • Height: 6mm
  • Material: Aluminium
  • Length: 2750mm
  • Finish: Clear Anodised
  • Fixing:
    • Stainless Steel fixing screws and plugs are supplied
    • Alternatively, fasten with builder's adhesive for concealed fixing

Approvals:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428 Part 1 (Design for access and mobility)
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
SKU KILIS40102750CA
Brand Kilargo
