Kilargo IS4010 Heavy Duty Low Profile Threshold Plate
IS40102250CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Threshold Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• These heavy duty, low profile threshold plates are used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
• Low profile design ensures compliance with the access for people with disability€™ requirements, AS1428/1 and BCA D3, particularly for wheelchair traffic.
• Has a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

Specifications:

• AS1428 Compliant: Yes
• Includes Fixing Screws: Yes

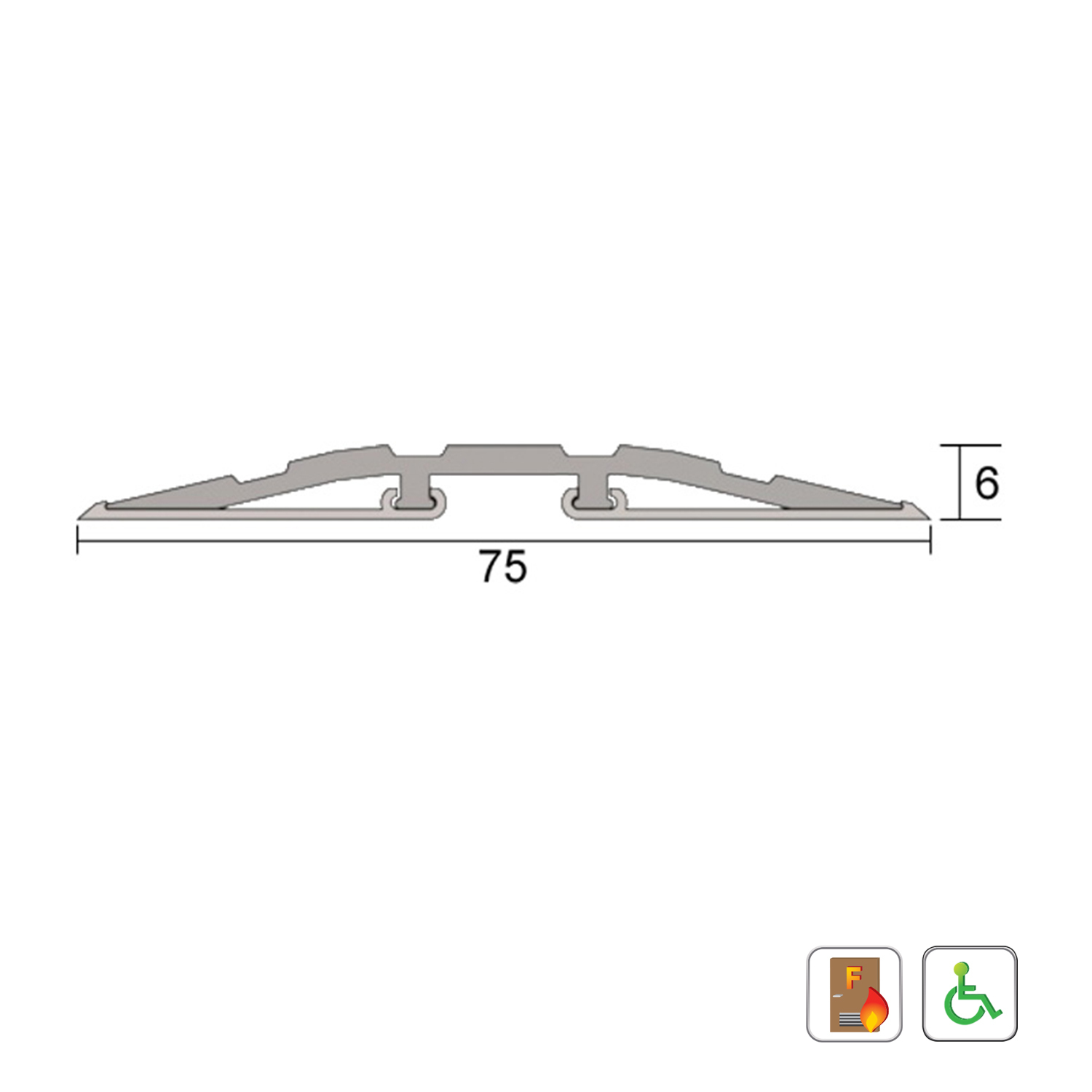

• Depth: 75mm
• Height: 6mm
• Material: Aluminium
• Length: 2250
• Finish: Clear Anodised
• Fixing:
  • Stainless Steel fixing screws and plugs are supplied
  • Alternatively, fasten with builder's adhesive for concealed fixing

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428 Part 1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
