Kilargo IS4015 Heavy Duty Low Profile Threshold Plate
IS40151000CA

Threshold Ramp Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Ramp Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

  • Their 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and BCA D3, particularly for wheelchair traffic
  • Have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress

Specifications:

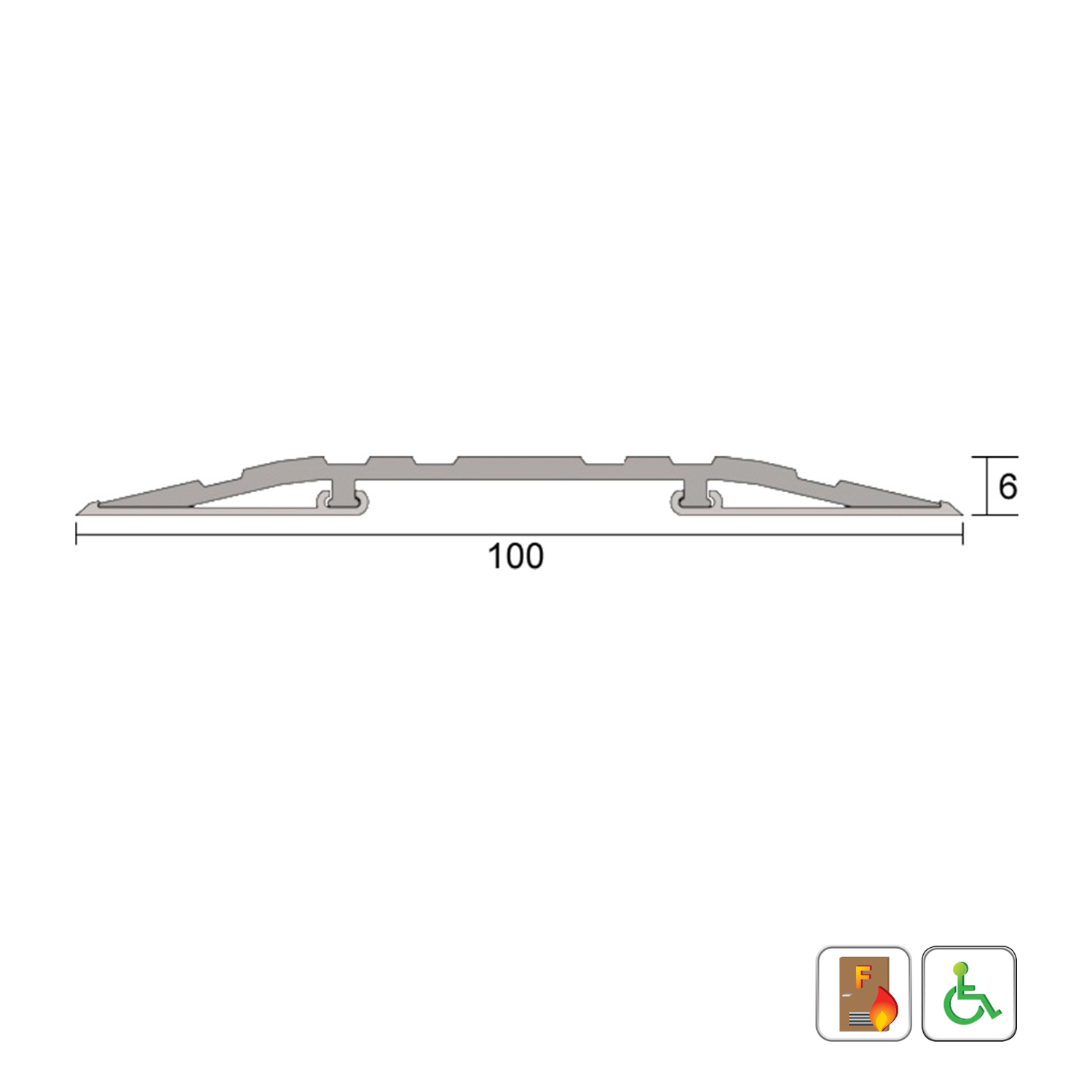

  • Height: 6mm
  • Width: 100mm
  • Length: 1000mm
  • Finish: Clear Anodised
  • Fixing:
    • Stainless Steel fixing screws and plugs are supplied
    • Alternatively, fasten with builder’s adhesive for concealed fixing

Approval/s:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility)
  • Conforms to NCC D3 (Access for people with disabilities)
SKU KILIS40151000CA
Barcode # 9355723013044
Brand Kilargo
