Kilargo IS4015 Heavy Duty Low Profile Threshold Plate
IS40153500CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Threshold Ramp Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Ramp Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Their 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and BCA D3, particularly for wheelchair traffic
• Have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress

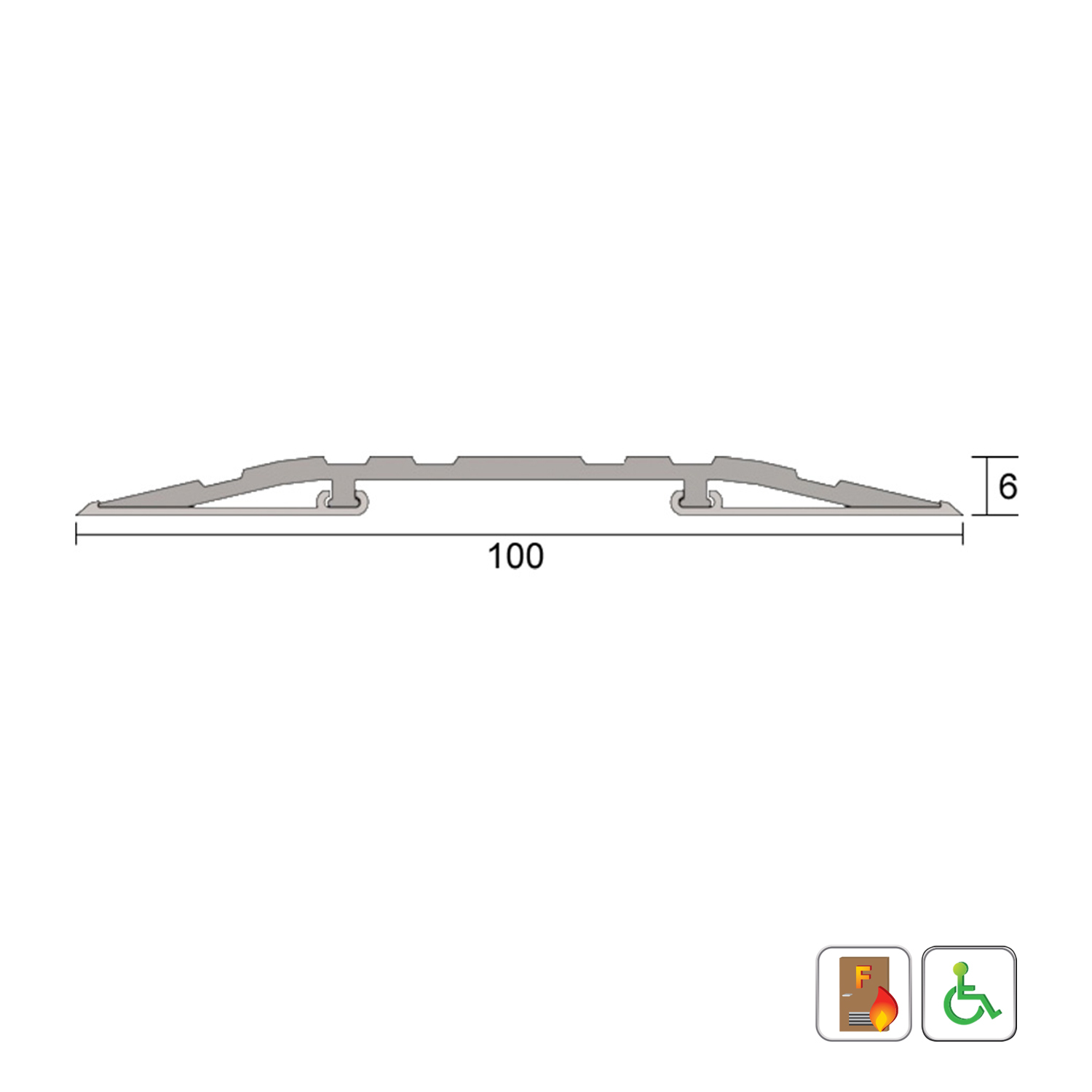

Specifications:

• Height: 6mm
• Width: 100mm
• Length: 3500mm
• Finish: Clear Anodised
• Fixing:
  • Stainless Steel fixing screws and plugs are supplied
  • Alternatively, fasten with builder’s adhesive for concealed fixing

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to NCC D3 (Access for people with disabilities)
