Kilargo IS4025 Heavy Duty Low Profile Threshold Plate
IS40251000CA

Threshold Ramp Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Ramp Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

  • Used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration
  • Their 6mm low profile design ensures compliance with the access for people with disability requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
  • These threshold plates have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

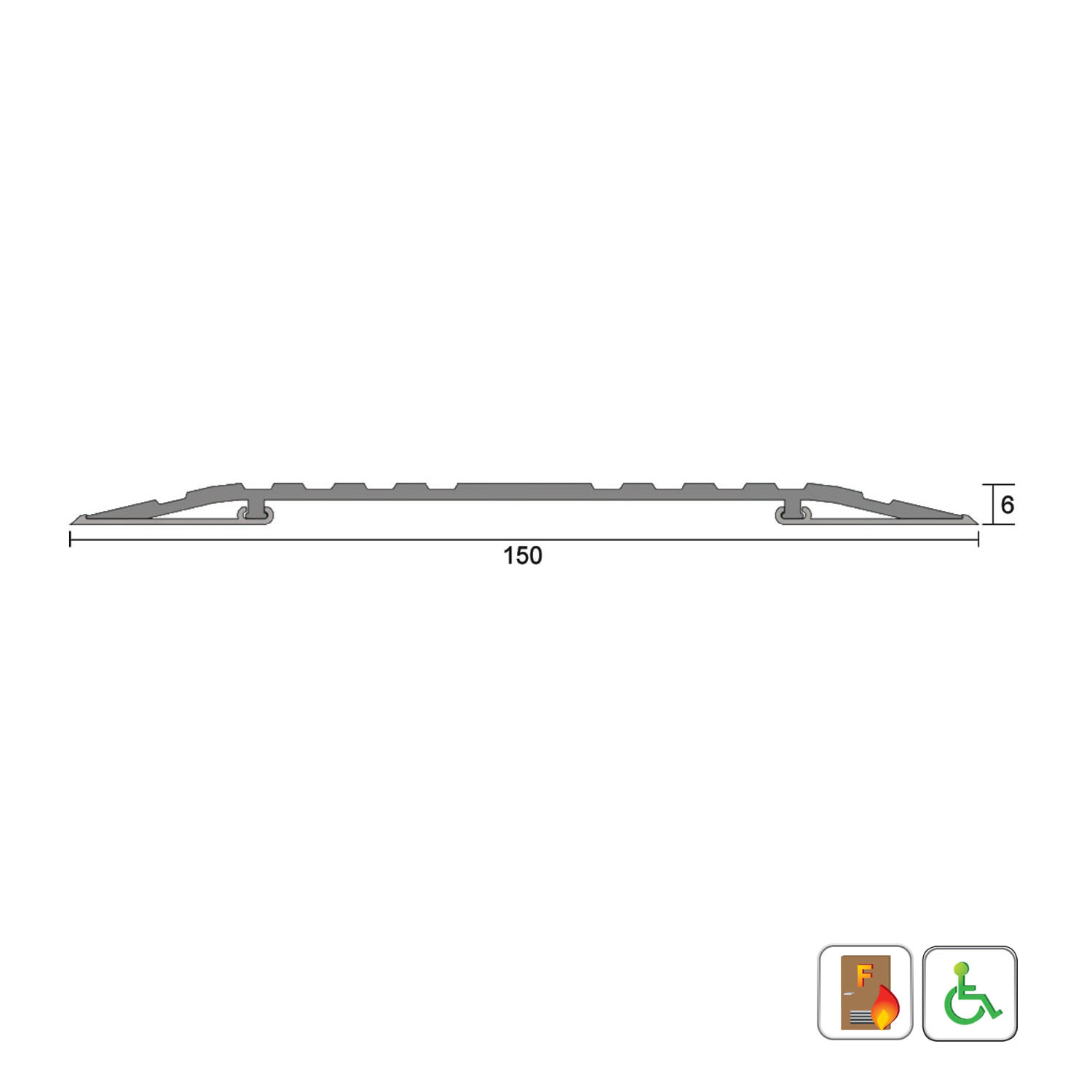

Specifications:

  • Height: 6mm
  • Width: 150mm
  • Length: 1000mm
  • Finish: Clear Anodised
  • Fixing:
    • Stainless steel fixing screws and plugs supplied
    • Alternatively, fasten with builders adhesive for concealed fixing

Approval/s:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility)
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
SKU KILIS40251000CA
Barcode # 9355723013945
Brand Kilargo
