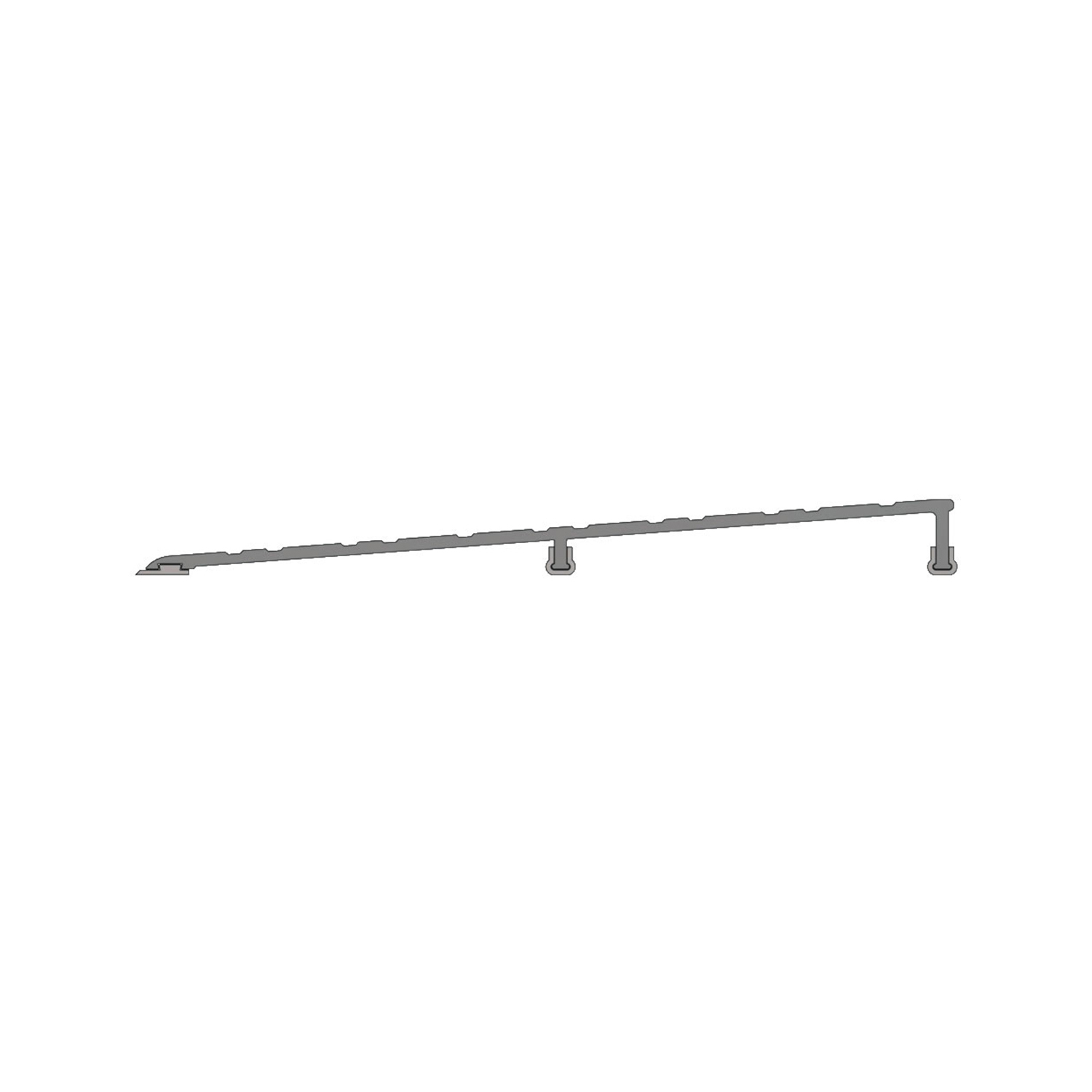

Kilargo IS4075 Heavy Duty Threshold Ramp

Threshold Ramp enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Ramp Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Utilised in buildings where wheelchairs and trolleys are used or to compensate for uneven floors.
• Rate of incline ensures compliance with the ‘access for people with disability’ requirement, particularly for wheelchair traffic.
• Durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

 Specifications:

• Gradient: 1:12
• Available Size (Lengths): 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3500mm, 4000mm, 4500mm and 5000mm
• Finish: Silver Anodised Aluminum
• Fixings:
  • Stainless steel fixing screws and plugs supplied
  • These extrusions can be positioned back-to-back to provide a two-way threshold ramp

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
