Kilargo IS4120 Heavy Duty Threshold Plate

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

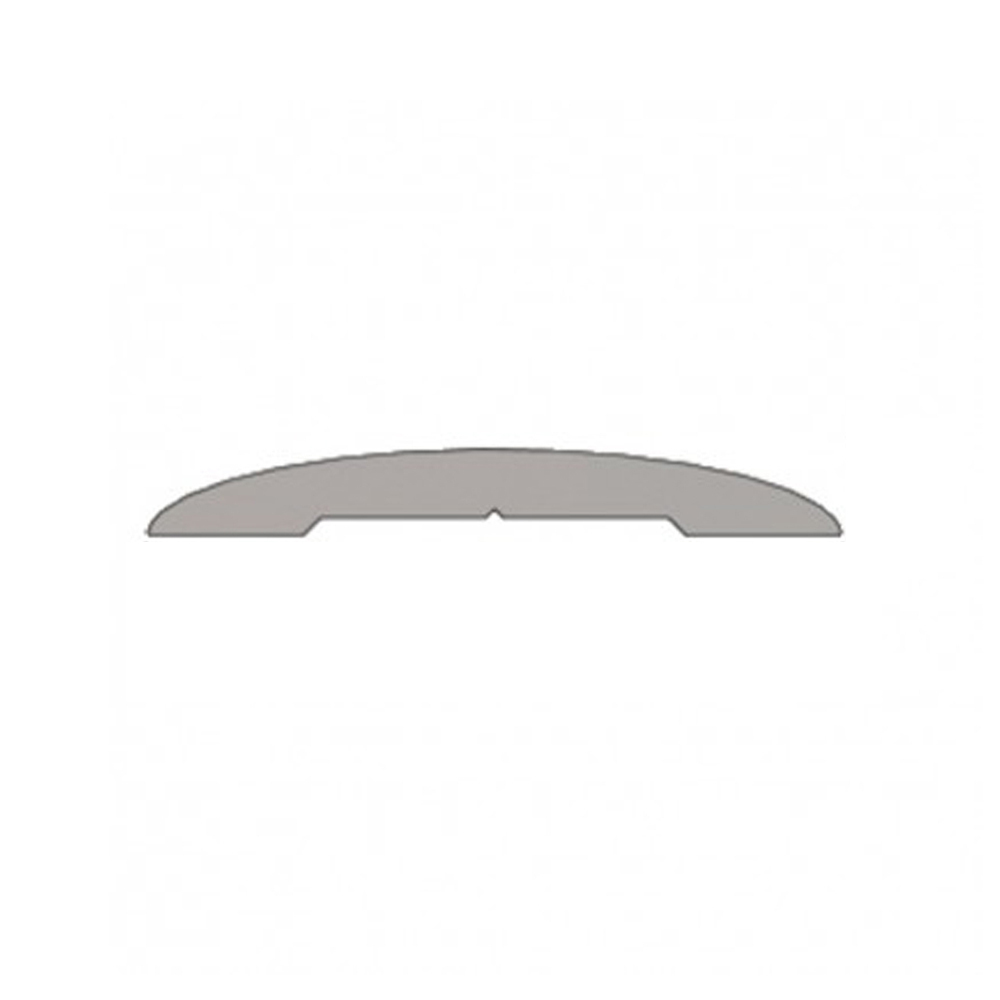

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Used in conjunction with other Kilargo door bottom seals to help prevent draught, insect and smoke penetration.
• Their low profile ensures compliance with the ‘access for people with disability’ requirements, particularly for wheelchair traffic.
• Anodised profile has a snap-fit cover strip for concealed fixings

Specifications:

• Fixing:
  • Stainless Steel Fixing screws and plugs supplied
  • Alternatively, fasten with builder’s adhesive for concealed fixing
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3500mm, 4000mm, 4500mm and 5000mm
• Finish: Silver Anodised Aluminum

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities
