Kilargo IS4140 Carpet Threshold Plate
IS4140-2250CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

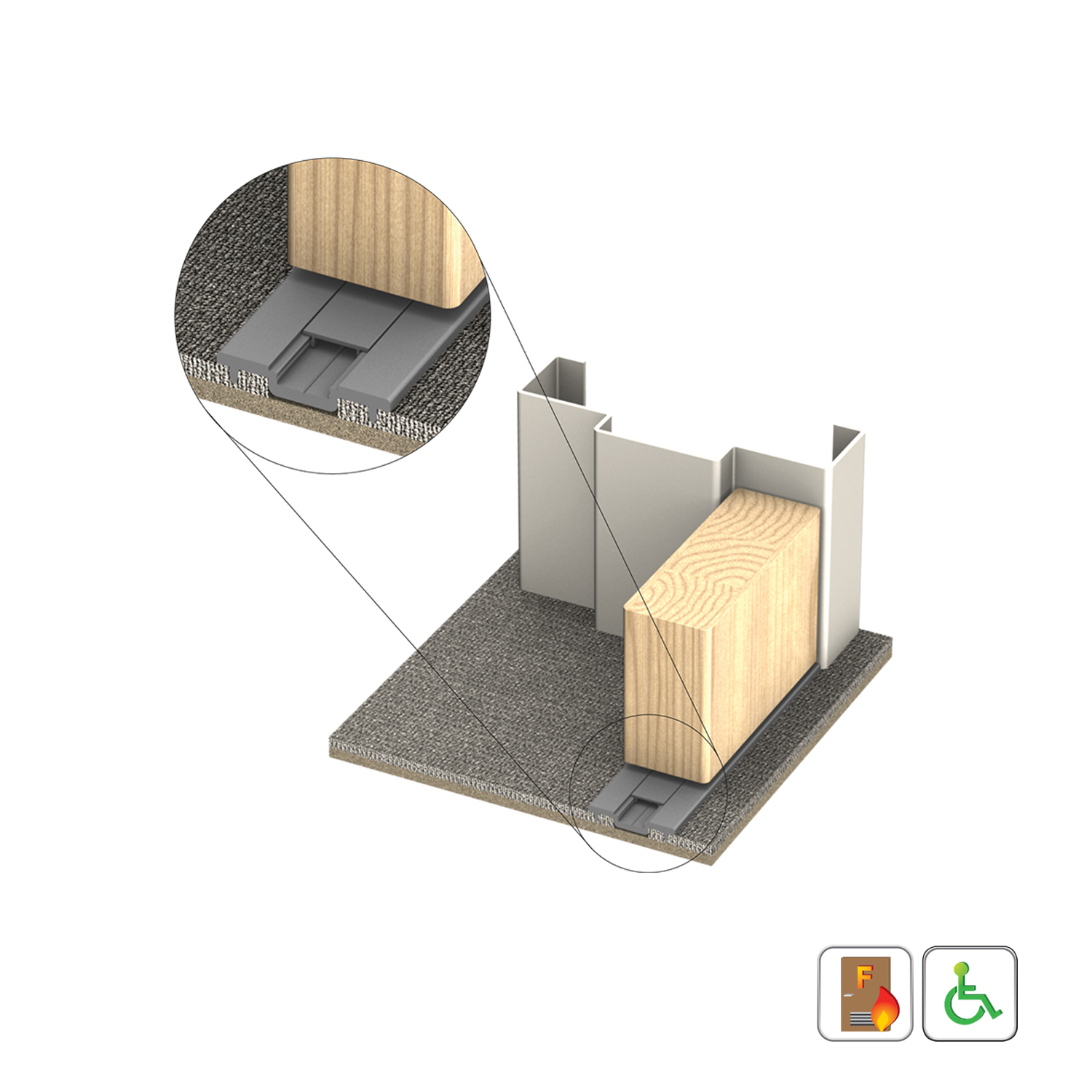

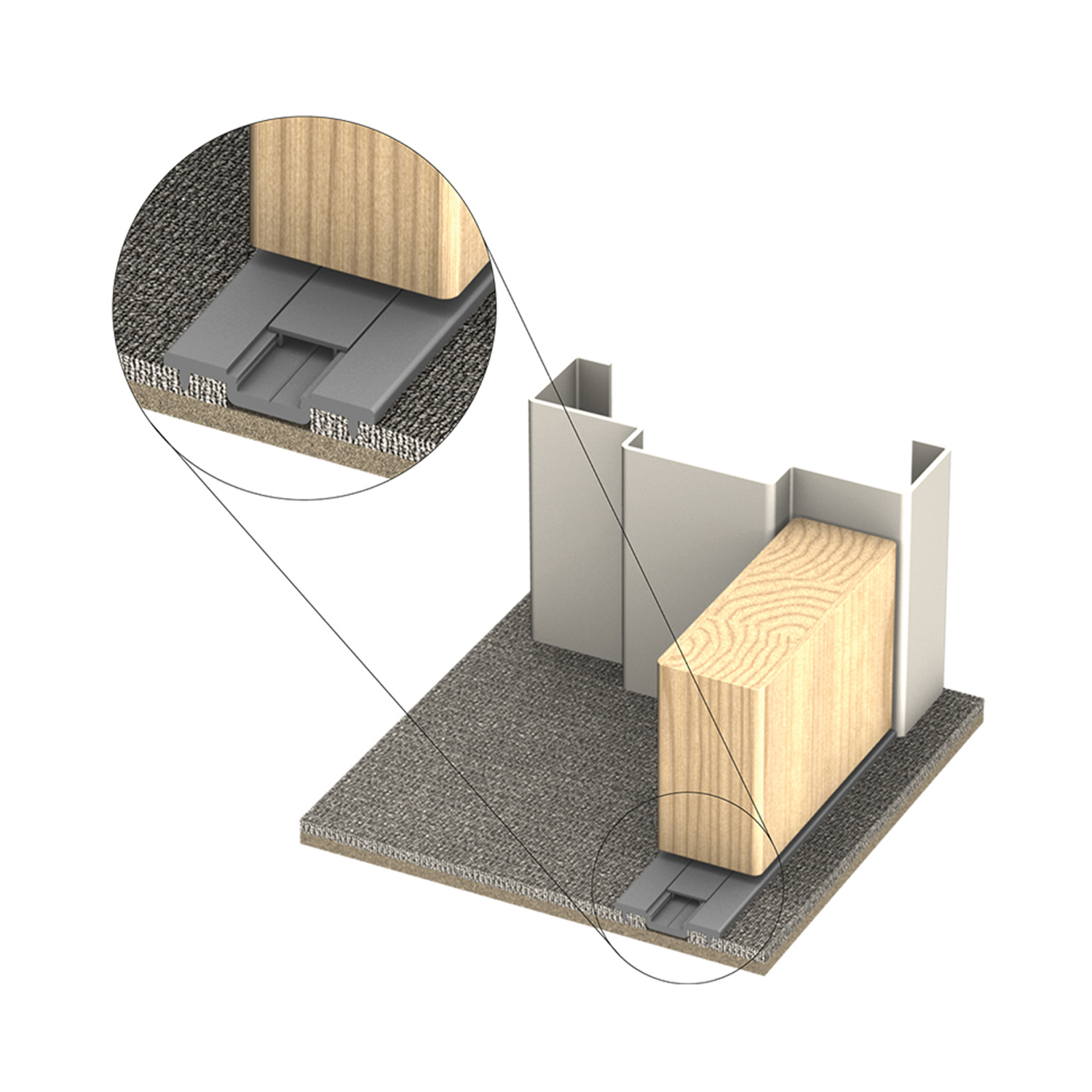

• IS4140 threshold plate is used when a flat sealing surface is required where carpet runs under the door.

Features:

• Used in conjunction with other Kilargo door bottom seals to help prevent draught, insect and smoke penetration.
• Their low profile ensures compliance with the ‘access for people with disability’ requirements, particularly for wheelchair traffic.
• The durable, anodised profile has a snap-fit cover strip for concealed fixings

Specifications:

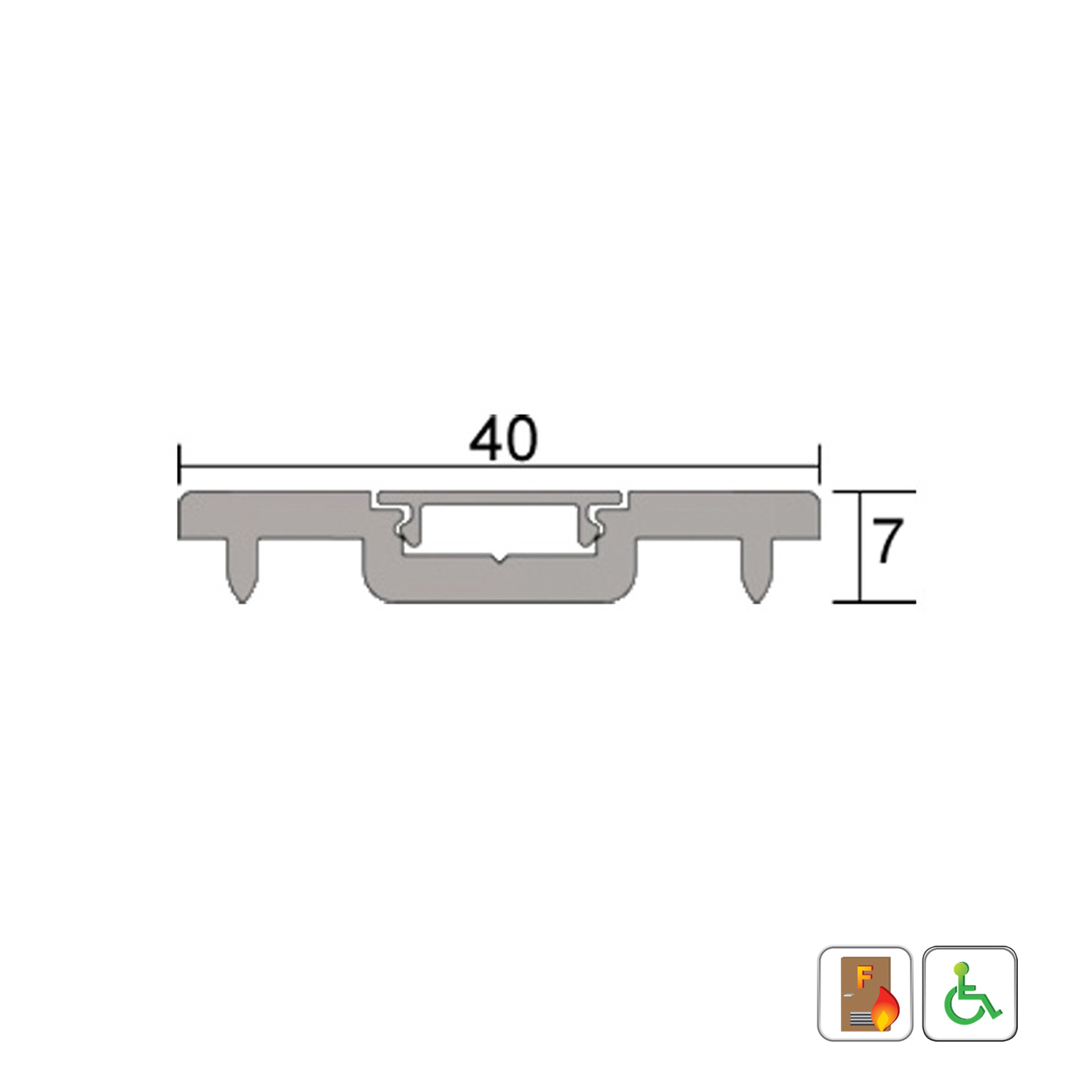

• Size: 2250mm
• Fixing: Stainless Steel Fixing Screws and Plugs Supplied
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities
