Kilargo IS5111SI Silicone Sweep Seal
IS5111SI2250CA

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

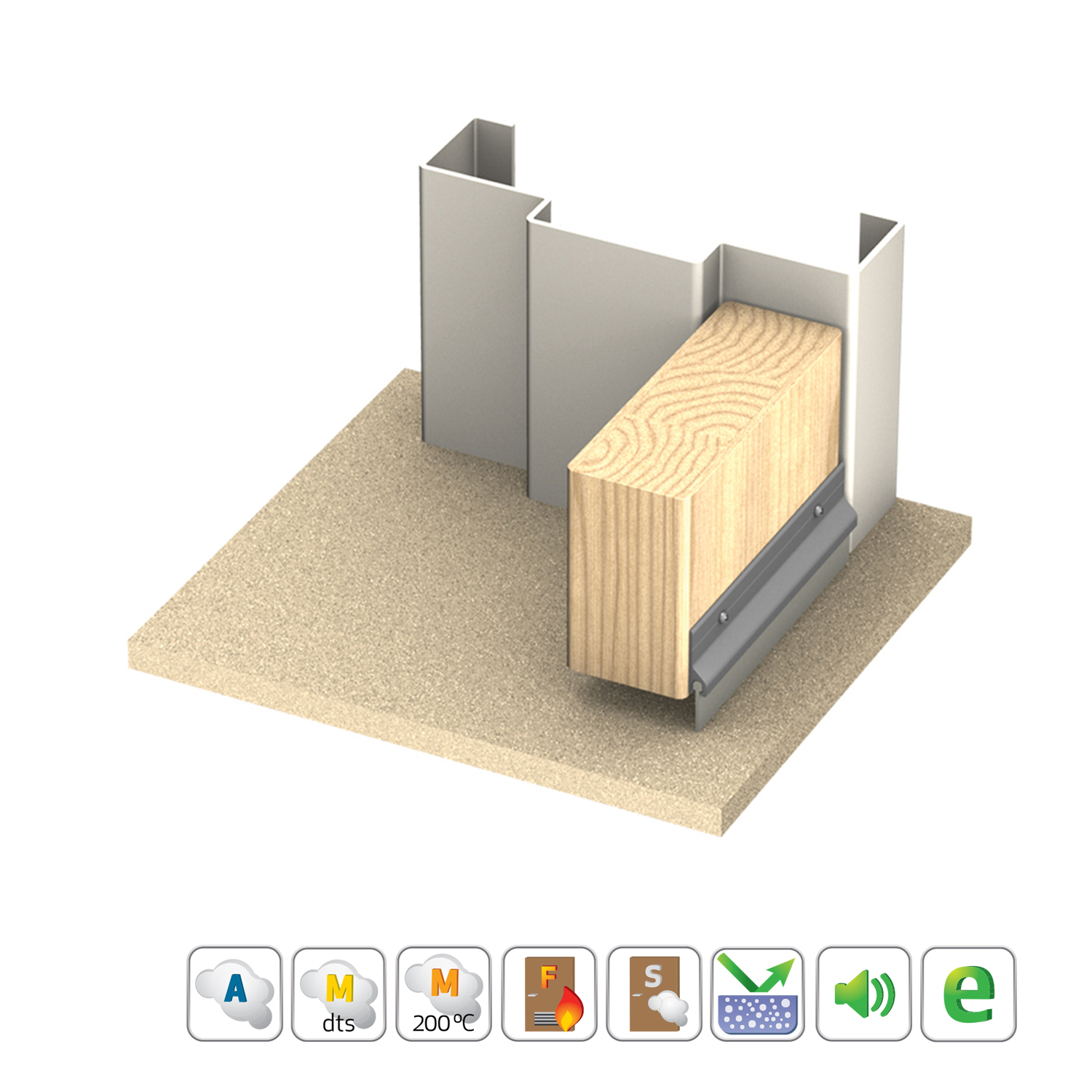

Sweep Seal Function - seals the gap between the door's bottom and the threshold.

Features:

  • Designed to be used around the head and jambs, door bottom and meeting stiles of single or double swing doors, revolving, tilt-up and roller doors
  • Helps protect against ambient and medium temperature smoke, draught and dust, and weather penetration
  • The slim line carriers are aesthetically angled to avoid dust build-up
  • These seals provide excellent sealing solutions for pivot action smoke doors and clean room applications

Specifications:

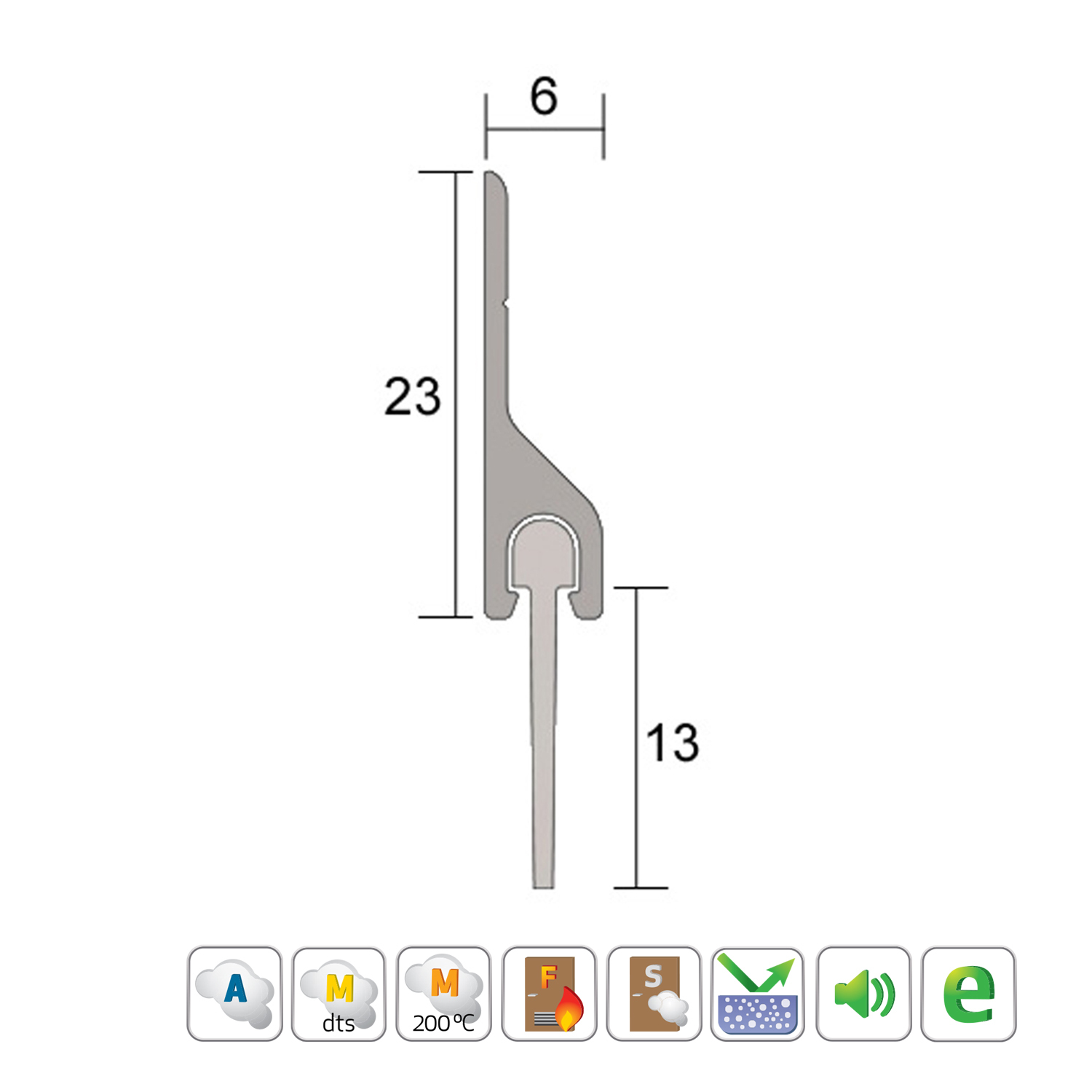

  • Gap size: Min. 9mm / max. 12mm
  • Length: 2250mm
  • Anti-Microbial: No
  • Finish: Clear Anodised
  • Fixing:
    • Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
    • Fixing screws and aggressive backing tape are supplied

Approvals:

  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
  • Conforms with NCC Specification C3.4 smoke sealing requirements
  • Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
SKU KILIS5111SI2250CA
Brand Kilargo
