This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

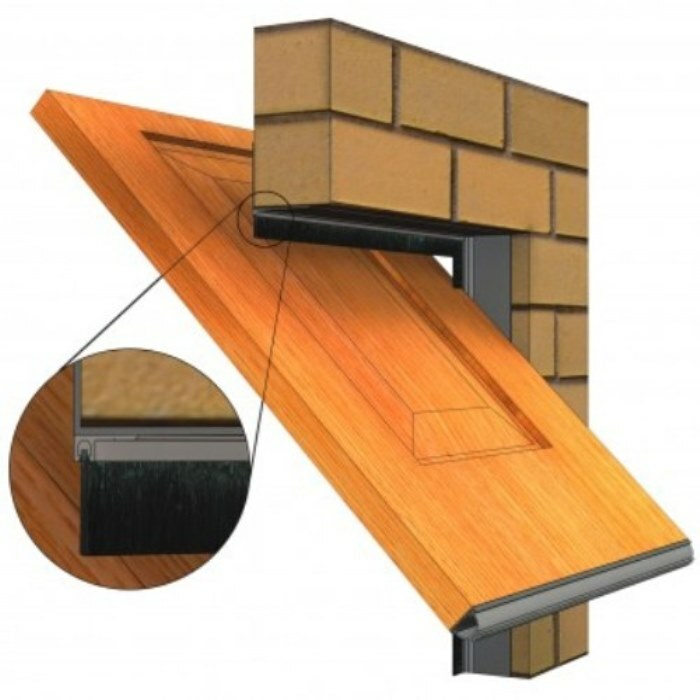

The IS5160H seal is designed with a 90º angle aluminium carrier and is used to prevent draught and dust penetration on sliding doors.

The angled aluminium carriers can be fitted with either 13mm, 19mm or 25mm black nylon brush. (50mm brush is also available upon request).

Gap size

• Min. 23mm / max. 29mm (with 25mm brush insert)

(Gap size dependent upon brush size utilised)

Standard lengths

• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 3000mm

(Brush lengths to be confirmed upon placement of order.)

Standard colours

• Silver anodised aluminium carrier with black nylon brush

Fixing

• Brush Door Seals (within carriers) can be screw fixed or self-adhered to the desired surface
• Fixing screws and aggressive backing tape are supplied

Approval/s

• Durability tests demonstrating over 100,000 open and close cycles
