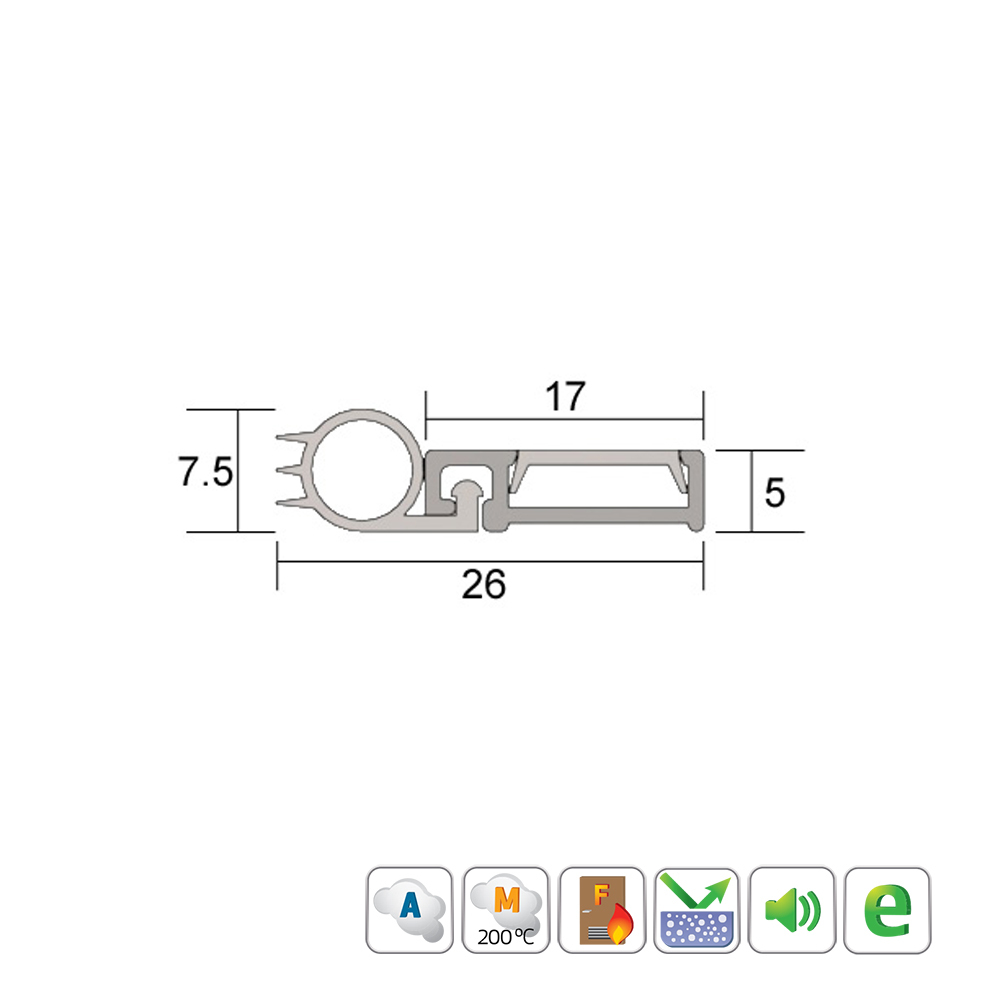

Kilargo IS7025si Slim-Line Door Perimeter Seal
IS7025SILSDSCA

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

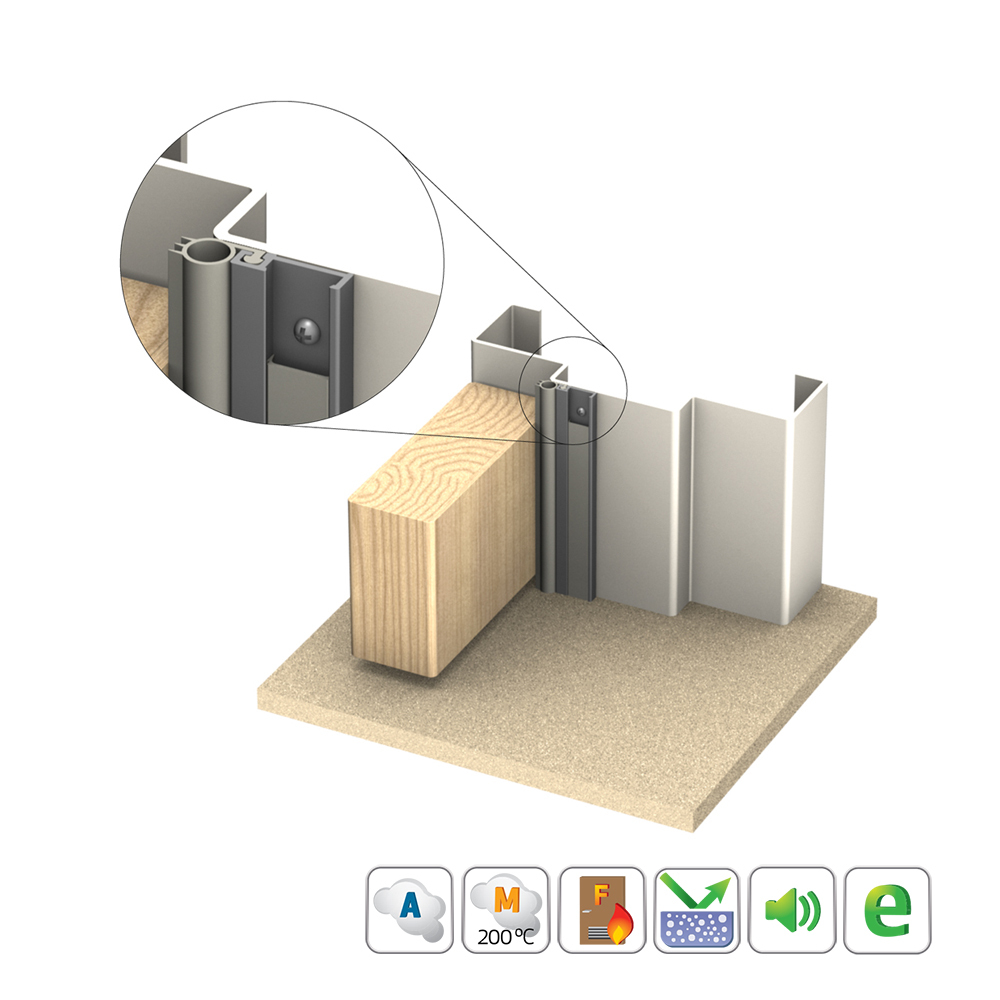

• Popular slim-line, door frame perimeter seal, designed to be fitted to an existing door stop, around the head and jambs of single swing doors
• The aluminium carrier has fixing holes pre-drilled and slotted to allow the seals to be adjusted and positioned accurately
• A decorative cover strip is supplied to conceal these fixings

Specifications:

• Gap Size: Min. 0mm / max. 6mm
• Door Set Length: Long Single Door Set: 1 x 1000mm, 2 x 2750mm
• Anti-Microbial: No
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
