Kilargo IS7060si Astragal Door Seal
IS7060SI2500BK

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

Door Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

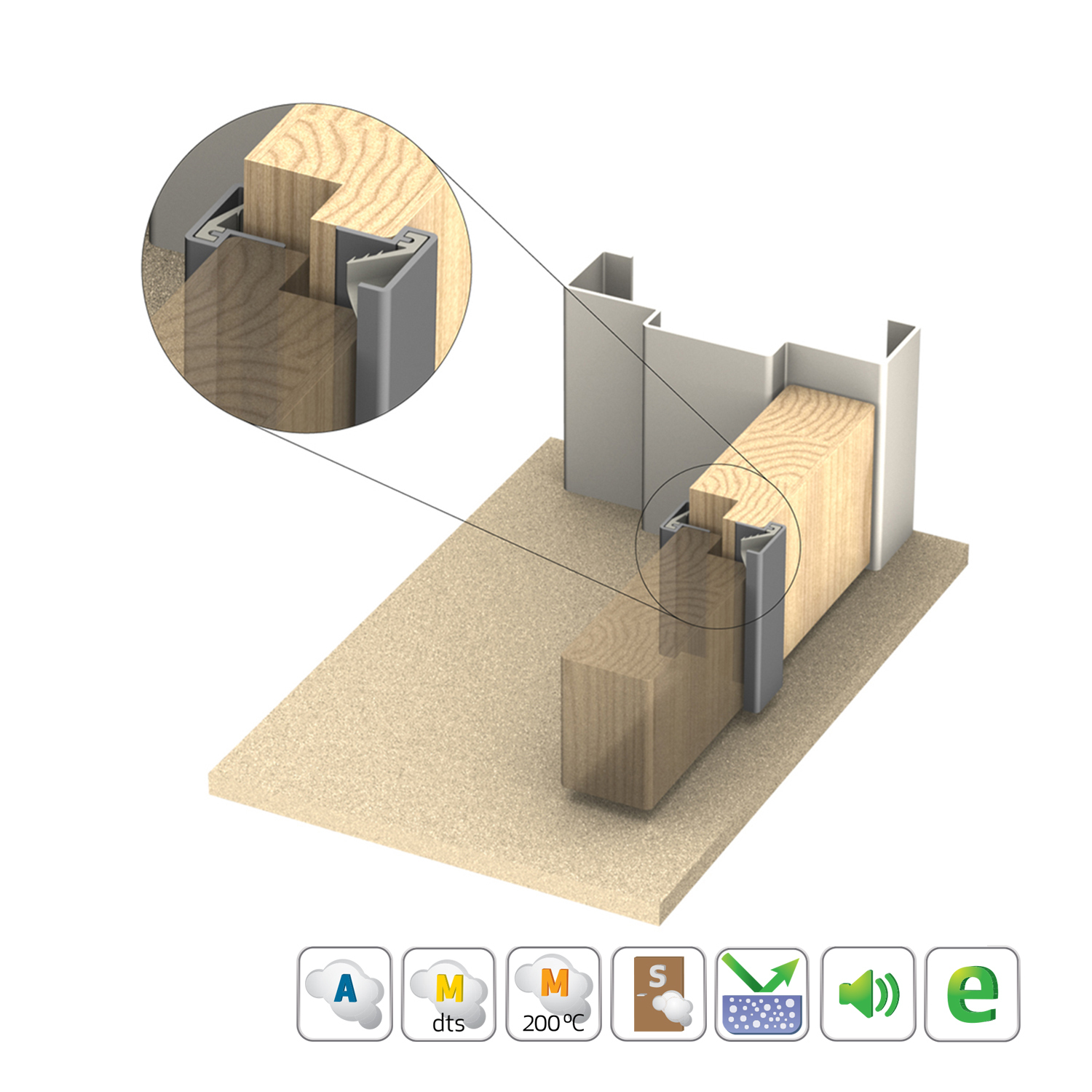

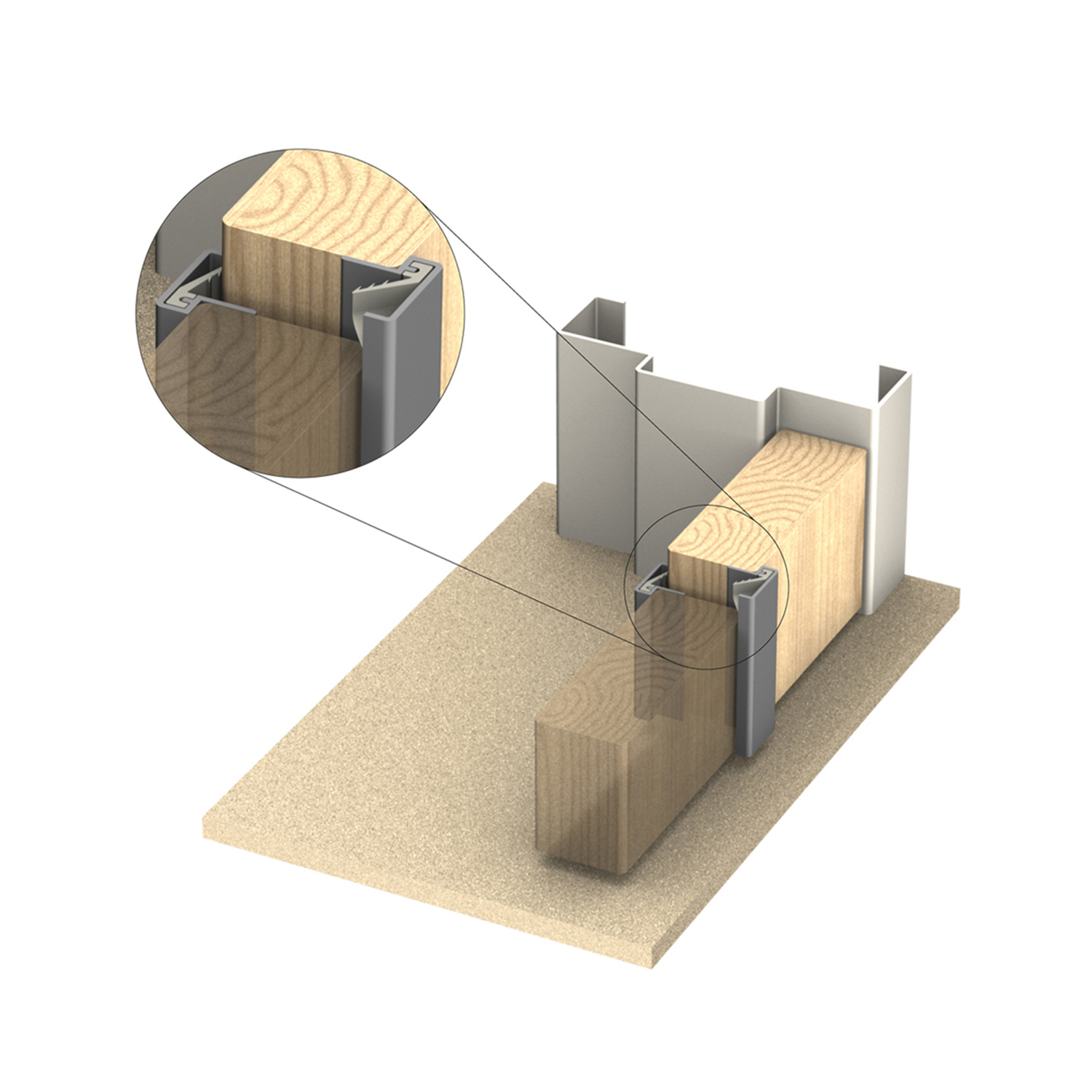

• An astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active)
• Provides an excellent acoustic, smoke, light, dust and weather seal
• The thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches

Specifications:

• Gap size: Min. 2.5mm / max. 10mm
• Length: 2500mm
• Antimicrobial: No
• Fixing: A door sequence selector should be considered unless one leaf is intended to be fixed
• Finish: Black Anodised

Approvals:

• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies.
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
