Kilargo IS7071si Astragal Door Seal
IS7071SI2500CA

Door Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

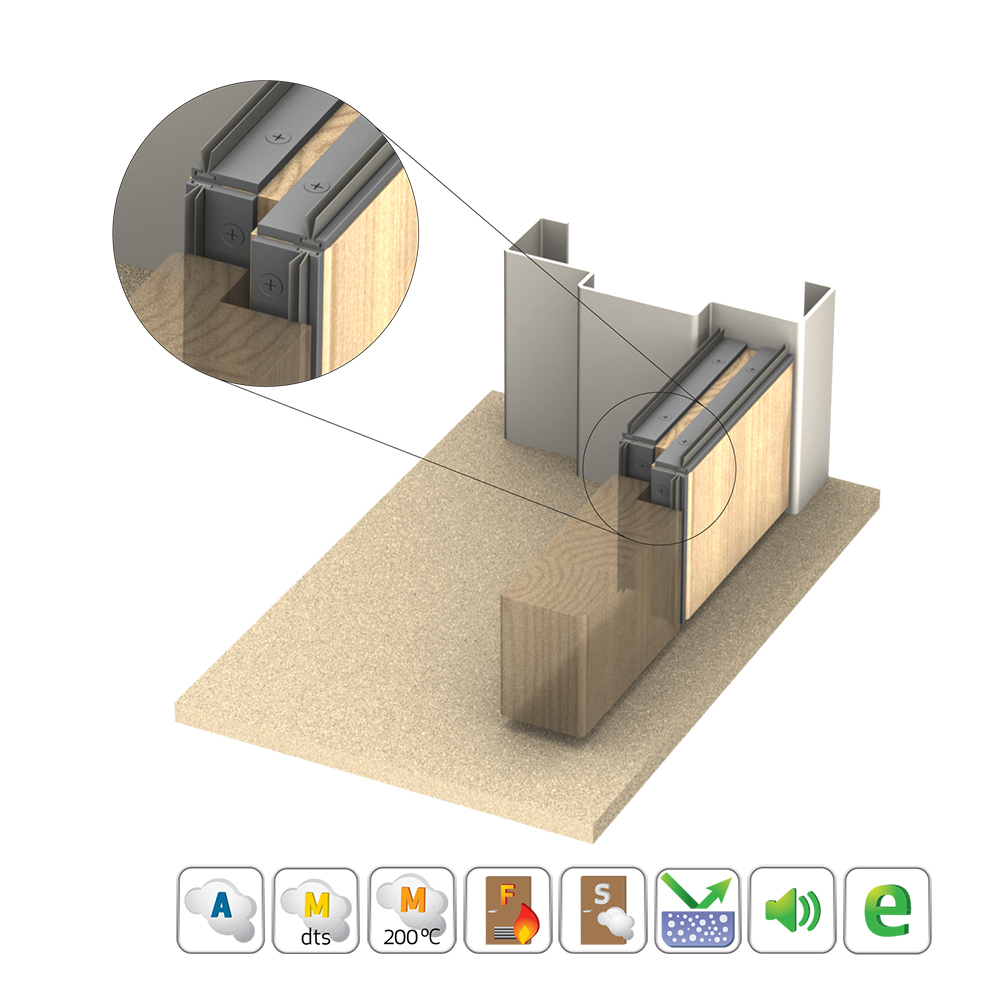

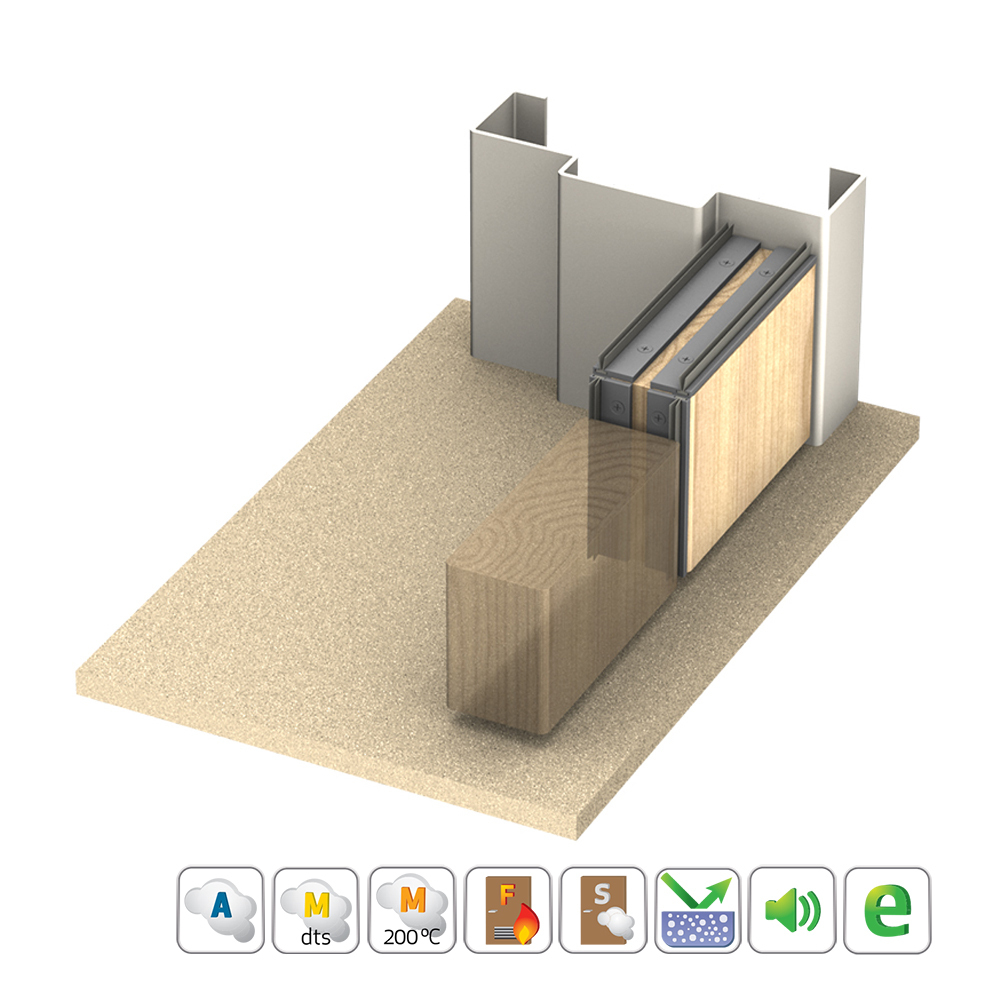

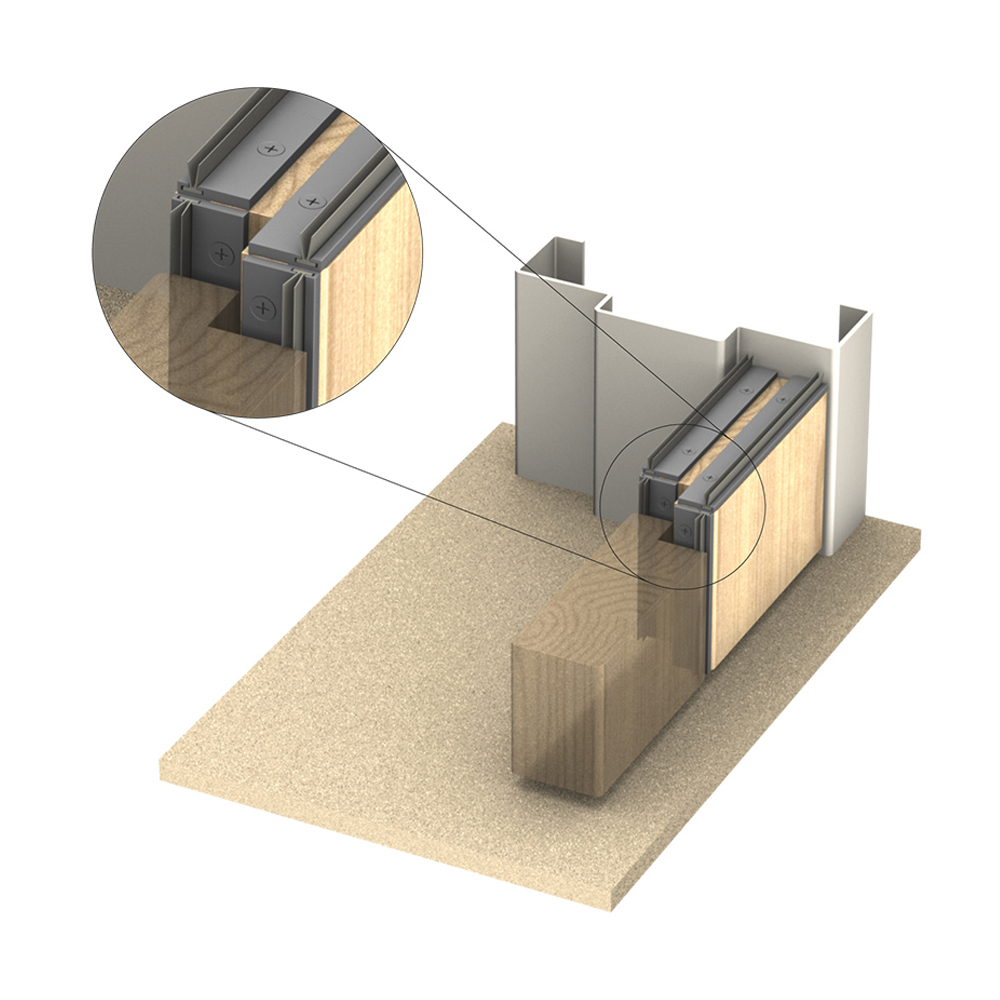

• Designed to be fitted to plain or rebated meeting stiles of single swing and double swing, double doors
• Two IS7071si seals can be installed onto one stile, allowing a space for a latch between the seals if required. These seals can be surface mounted or rebated
• It provides an excellent acoustic, smoke, light, dust and weather seal. IS7071si can be utilised as a perimeter seal around the head and jambs of single and double doors

Specifications:

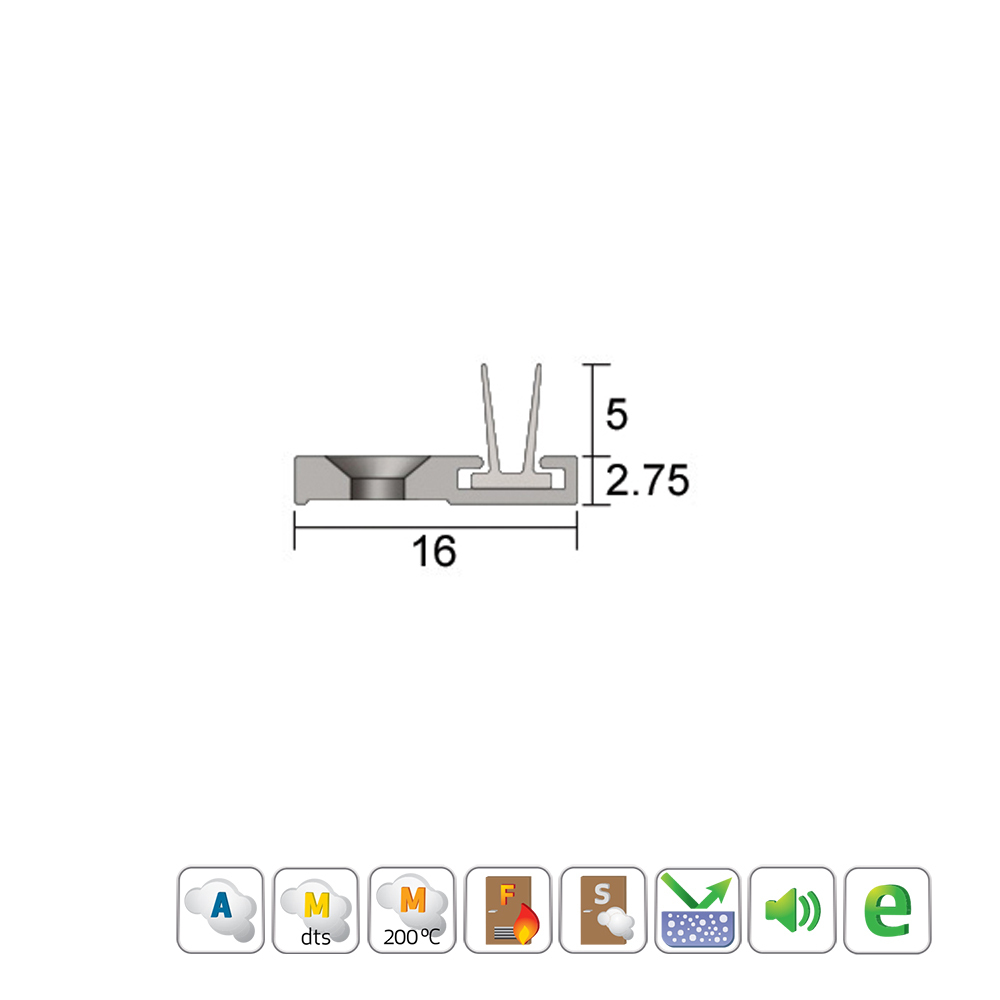

• Gap size:
  • Surface-mounted: min. 5mm / max. 7mm
  • Rebated application: min. 2mm / max. 4mm
• Length: 2500mm
• Antimicrobial: No
• Fixing:
  • Fixing screws are supplied
  • Fixing holes are pre-drilled and countersunk
  • A door sequence selector should be considered unless one leaf is intended to be fixed
• Finish: Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 (Perimeter Seal)
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrate 100,000 open and close cycles
